Extreme Networks ExtremeSwitching X590 24-port SFP+ Switch
High-Performance 24-port 10Gb Aggregation Switch

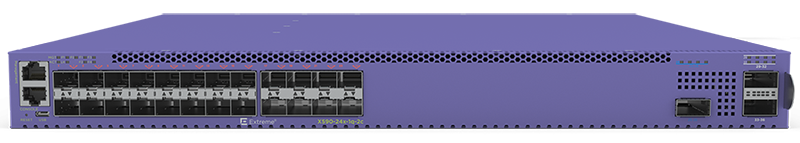

Extreme Networks ExtremeSwitching X590 24-port SFP+ Switch

Extreme Networks Products
Extreme Networks ExtremeSwitching X590 Series
ExtremeSwitching X590-24x-1q-2c 24-port QSFP+ Switch
24 x 1Gb/10Gb SFP+ ports, 1 10Gb/40 Gb QSFP+ port, 2 10Gb/25Gb/40Gb/50Gb/100Gb capable QSFP28 ports, 2 unpopulated power supplies slots, 4 unpopulated fan module slots, ExtremeXOS Advanced Edge License
#16790
Our Price: $16,057.00
Call For Lowest Price!

Click here to jump to more pricing!

Overview:

Advanced 10Gb Enterprise LAN Aggregation Switch

The ExtremeSwitching X590 Series product s are purpose-built 24-port 10Gb/100Gb switches designed for high-performance enterprise and aggregation applications. The X590 can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb and 100Gb, all in a compact 1RU form factor. This enables the ExtremeSwitching X590 to be flexibly deployed in Enterprise LAN or top-of-rack applications.

The X590 can also serve as the controlling aggregation switch within Extreme?s Extended Edge Switching solution.

Highlights

Family of 10Gb/100Gb Switches with Advanced Enterprise Capabilities

  • Full featured ExtremeXOS operating system with advanced features supporting switching, routing, and VXLAN
  • Controlling aggregation switch for V400 edge devices with Extreme's Extended Edge Switching
  • High-density 10Gb aggregation applications
  • Non-blocking 880 Gbps switching capacit y per system

Ease of Use - Flexible Management Options

  • Enterprise Extreme Management Center application support
  • Advanced command line interface
  • Zero Touch Provisioning (ZTP+)
  • Integrated web based management application

Flexible System Configurations

  • Wide range of port speeds from 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb
  • Fiber SFP+ and copper 10GBASE-T models
  • Hot-swappable modular power and fans
  • AC and DC power supply options
  • Front to Back and Back to Front air flow options
  • Redundancy options for high availability

Features:

Flexible Deployment Options

The X590 can handle a range of high bandwidth applications, including high-density 10Gb top of rack aggregation, as well as spine/ leaf deployment s as an edge leaf switch. With both copper and fiber high-density 10Gb port options, the X590 can flexibly accommodate a variet y of data center needs. It can also flexibly support uplinks at 25Gb, 40Gb, 50Gb or even 100Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb and 100Gb Ethernet applications.

ExtremeXOS Intelligent L2/L3 Switching

The ExtremeSwitching X590 family support s sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/ IPv6 routing, including policy-based switching and routing. The X590 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availabilit y ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.

Extended Edge Switching

The X590 support s Extreme Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. With this solution, the X590 can be meshed with economical V400 Series access devices to form a single logical switch. Advanced X590 services can then be seamlessly delivered to the V400 edge switch. The result is a simplified operational model that reduces costs.

High-Performance 400Gb Stacking

The X590 support s SummitStack-V400 400Gbps high speed stacking using 2 100Gb ports, along with Extreme X690 and X870 Series switches. Up to eight (8) X590, X690 and X870 systems can be stacked via SummitStack-V400. using any of the supported 100Gb QSFP28 direct attach cables for the stacking links.

Comprehensive Network Management

Extreme Networks has developed tools that simplify and help in efficiently managing your network. The Extreme Management Center application suite provides centralized visibility and granular control of enterprise network resources end to end.

Specifications:


  X590-24x-1q-2c X590-24t-1q-2c
Ports
  • 24 1Gb/10Gb SFP+ ports
  • 1 10Gb/40Gb QSFP+ ports
  • 2 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
  • 1x Serial console port RJ-45
  • 1x 10/100/1000BASE-T out-of-band management port
  • Micro-USB Type A storage port

Selectable QSFP Port Configurations

  • 1 10Gb/40Gb QSFP+ and 2 100Gb QSFP28 SummitStack-V400 stacking ports

    or

  • 2 10Gb/25Gb/40Gb/ 50Gb/100Gb QSFP28 (1QSFP+ port inactive)
  • 24 100Mb/1Gb/10Gb 10GBASE-T ports
  • 1 10Gb/40Gb QSFP+ ports
  • 2 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
  • 1x Serial console port RJ-45
  • 1x 10/100/1000BASE-T out-of-band management port
  • Micro-USB Type A storage port

Selectable QSFP Port Configurations

  • 1 10Gb/40Gb QSFP+ and 2 100Gb QSFP28 SummitStack-V400 stacking ports

    or

  • 2 10Gb/25Gb/40Gb/ 50Gb/100Gb QSFP28 (1QSFP+ port inactive)
Power Supplies
  • Modular 770W AC power supply (up to two PSUs)
  • Modular 1100W DC power supply (up to two PSUs)
  • Front-Back and Back-Front airflow options
  • Modular 770W AC power supply (up to two PSUs)
  • Modular 1100W DC power supply (up to two PSUs)
  • Front-Back and Back-Front airflow options
Fan Modules
  • 4 fan modules
  • Front-Back and Back-Front airflow options
  • 4 fan modules
  • Front-Back and Back-Front airflow options
Dimensions 17.4in W / 19.2in D / 1.7in H
(44.1cm / 48.8cm / 4.3cm)
17.4in W / 19.2in D / 1.7in H
(44.1cm / 48.8cm / 4.3cm)
Performance 880Gbps Switching Capacity / 714Mpps Forwarding Rate 880Gbps Switching Capacity / 714Mpps Forwarding Rate
CPU Memory
  • 2.4GHz Quad core CPU
  • 4GB DDR3 ECC memory
  • 32GB SSD memory
  • 2.4GHz Quad core CPU
  • 4GB DDR3 ECC memory
  • 32GB SSD memory
Packet Buffers 12MB 12MB
MTBF 435,074 hours 337,871hours
Operating Conditions 0 º - 45ºC operation
10 % to 95% relative humidity, non-condensing
0 - 3000 meters altitude
Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks
Random vibration: 3 to 500Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/hr) (Idle, no ports linked) AC: 278.42 BTU/hr
DC: 286.61 BTU/hr
AC: 310.97 BTU/hr
DC: 332.63 BTU/hr
Minimum Power Consumption (Watt s) (Idle, no ports linked) AC: 81.60 W
DC: 84.00 W
AC: 91.14 W
DC: 97.49 W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic) AC: 743.82 BTU/hr
DC: 786.12 BTU/hr
AC: 792.27 BTU/hr
DC: 833.62 BTU/hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic) AC: 218.00 W
DC: 230.40 W
AC: 232.20 W
DC: 244.32 W
Acoustic Specifications
Bystander Sound Pressure (Front-Back Airflow) 55.6 dB(A) up to 30 ºC
57.8 dB(A) up to 40 ºC
79.8 dB(A) @ 45ºC (max)
54.7 dB(A) up to 25ºC
61.9 dB(A) up to 35ºC
79.4 dB(A) @ 45ºC (max)
Bystander Sound Pressure (Back-Front Airflow) 55.8 dB(A) up to 30 ºC
57.9 dB(A) up to 40 ºC
79.1dB(A) @ 45ºC (max)
55.5 dB(A) up to 25ºC
62.6 dB(A) up to 35ºC
79.7 dB(A) @ 45ºC (max)
Declared Sound Power (Front-Back Airflow) 6.9 bels up to 30 ºC
7.1 bels up to 40 ºC
9.5 bels @ 45ºC (max)
6.8 bels up to 25ºC
7.6 bels up to 35ºC
9.4 bels @ 45ºC (max)
Declared Sound Power (Back-Front Airflow) 6.9 bels up to 30 ºC
7.1 bels up to 40 ºC
9.5 bels @ 45ºC (max)
6.8 bels up to 25ºC
7.5 bels up to 35ºC
9.2 bels @ 45ºC (max)

* 40 Gb port s on the VIM5 module can also be broken out individually into 4 x 10 Gb port s.


Scaling and Performance

  • Layer 2/MAC Addresses: 272K
  • IPv4 LPM Entries: 256K max w/ALPM
  • IPv4 Hosts
    • With min LPM IPv4 entries: 146K
    • With max LPM IPv4 entries: 3K
  • IPv6 LPM (/64) Entries: 128K max w/ALPM
  • IPv6 Host s: 32K max
  • IP Multicast Groups: 4K
  • IP Multicast (s,v,g) entries 130K max
  • Flexible Universal Forwarding Tables (UFT)
  • 4096 VLAN/VMANs
  • 9216 Byte Max Packet Size (Jumbo Frame)
  • 8 queues per port
  • 8K ingress ACL rules
  • 1K egress ACL rules
  • OnePolicy Scaling
    • Up to 24,576 authenticated policy users per switch
    • Policy Profiles: 63
  • Unique Permit/Deny Rules per switch: 1976
  • Default OnePolicy Profile
    • MAC Rules: 512
    • IPv4 Rules: 512
    • IPv6 Rules: 512
    • L2 Rules: 400

Key Features

  • Data Center Bridging
    • DCBx Data Center Bridging Exchange Protocol
    • Priorit y Flow Control (PFC)
    • Enhanced Transmission Selection (ETS)
    • VXLAN Tunneling End Point (VTEP)
  • SummitStack-V400 400Gb stacking (full duplex)
    • Stacking with up to 8 X590/X690/X870 systems
    • 2 x 100Gb ports for stacking
  • sFlow/Application Telemetry

IEEE 80 2.3 Media Access Standards

  • IEEE 802.3ba / 802.3bm 40GBASE-X and 100GBASE-X
  • IEEE 802.3ae 10GBASE-X
  • IEEE 802.3 10GBASE-T (up to 10 0 m using Cat6a cabling or better)
  • 25Gb and 50Gb Ethernet implemented per 25G/50G Ethernet Consortium specification and IEEE 802.3 standard

Environmental Specifications

  • EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
  • EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
  • EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
  • EN/ETSI 300 753 (1997-10) - Acoustic Noise
  • ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

  • EU RoHS: 2011/65/EU
  • EU WEEE: 2012/19/EU
  • China RoHS: SJ/T 11363-2006
  • Taiwan RoHS: CNS 15663 (2013.7)

Packaging and Storing Specifications

  • Temp: -40° C to 70° C (-40° F to 158° F)
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
  • Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
  • Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
  • Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

  • North American ITE
    • UL 60950-12nd edition A2:2014, Listed Device (U.S.)
    • CSA 22.2 No. 60950-12nd edition 20 14(Canada)
    • Complies with FCC 21CFR 1040.10 (U.S. Laser Safet y)
    • CDRH Letter of Approval (US FDA Approval)
  • European ITE
    • 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 2nd Ed.
    • EN 60825-1:2007 / IEC 60825-1:2007 Class 1 (Lasers Safety)
    • 2014/35/ EU Low Voltage Directive
  • International ITE
    • CB Report & Certificate per IEC 60950-1 : 2005+A1:2009+A2:2013 + National Differences
    • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

  • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • EN 55032:2015 Class A
    • EN 55024:2010
    • EN 61000-3-2,2014 (Harmonics)
    • EN 61000-3-3 2013 (Flicker)
    • EN 300 386 v1.6.1(EMC Telecommunications)
    • 2014/30/ EU EMC Directive
  • International EMC Certifications
    • CISPR 22 Class A (International Emissions)
    • AS/NZS CISPR32:2015
    • CISPR 24:2010 Class A (International Immunity)
    • IEC 61000-4-2:2008/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
    • IEC 61000-4-3:2010/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
    • IEC 61000-4-4:2012/EN 61000-4-4 Transient Burst, 1 kV, Criteria A
    • IEC 61000-4-5:2014/EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
    • IEC/ EN 61000-4-11:2004 Power Dips & Interruptions, >30 %, 25 periods, Criteria C

Country Specific

  • VCCI Class A (Japan Emissions)
  • ACMA RCM (Australia Emissions)
  • CCC Mark
  • KCC Mark, EMC Approval (Korea)

Telecom Standards

  • CE 2.0 Compliant

IEEE 802.3 Media Access Standards

  • IEEE 802.3ba / 802.3bm 40GBASE-X and 100GBASE-X
  • IEEE 802.3ae 10GBASE-X
  • IEEE 802.3 10GBASE-T (up to 100m using Cat 6a cabling or better)
  • 25Gb and 50Gb Ethernet implemented per 25G/50G Ethernet Consortium specification and IEEE 802.3 standard


Power Supply Specifications:


  770W AC PSU
10960/10961
1100W DC PSU
10962/10963
Dimensions 2.3 in W x 1.6 in H x 14.1in D
(5.9 cm x 4.1cm x 35.9 cm)
2.3 in W x 1.6 in H x 14.1in D
(5.9 cm x 4.1cm x 35.9 cm)
Weight 2.2 lb (1Kg) 2.2 lb (1Kg)
Voltage Input Range 100 - 240 VAC +/- 10 % -48 VDC -15% +20 %
Line Frequency Range 50 - 60 Hz +/- 5% N/A
PSU Input Socket IEC 320 C14 Terminal Block
Power Cord Input Plug IEC 320 C13 N/A
Operating Conditions 0º - 45ºC Operation 0º - 45ºC Operation
