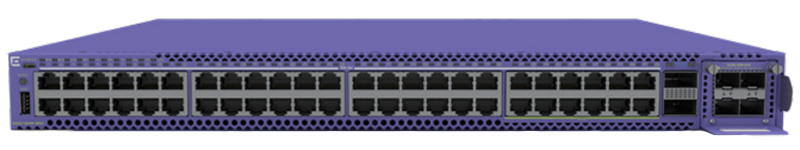

Extreme Networks ExtremeSwitching 5520 48-port Switch
Universal Edge and Aggregation Switch Platform
48 x 10/100/1000BASE-T full/half duplex MACsec-capable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1 VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $9,250.00
48 x 10/100/1000BASE-T full/half duplex 802.3bt 90W PoE MACseccapable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1 VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $11,096.00
12 x 100Mb/1Gb/2.5Gb/5Gb 802.3bt 90W PoE MACsec-capable ports plus 36 x 10/100/1000BASE-T 802.3bt 90W PoE full/half duplex MACsec-capable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $13,569.00
Click here to jump to more pricing!
Overview:
The ExtremeSwitching 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. The 5520 Series universal hardware provides end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge, aggregation and wiring-closet environments.
The 5520 Series includes 24- and 48-port 1 Gigabit models, 1/2.5/5 Gigabit multi-rate models, as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting or point-of-sale terminals. The 5520 further supports 10Gb and 25Gb modular uplinks for flexible linkage to other switches or devices over a range of media.
Highlights
- High-performance feature-rich fixedform switches for enterprise edge and aggregation deployments
- Range of 24 and 48-port models with Gigabit, Multi-Gigabit and 10 Gigabit Ethernet connectivity
- Universal hardware platform providing end-to-end network segmentation and advanced policy with a choice of ExtremeSwitching operating systems
- 10Gb and 25Gb modular uplink options
- 30W, 60W and 90W PoE support (IEEE 802.3at/IEEE 802.3bt)
- Up to 8-unit 160Gb stacking
- Hot-swappable, redundant power supplies and fans
- MACsec on access and modular uplink ports for secure link encryption
- Layer 2/Layer 3 Fabric services for secure network segmentation and automation
- Extended Edge Switching controlling bridge in support of V300/V400 edge devices
- Non-blocking, wire-speed design
Smart Management Choices
- ExtremeCloud™ IQ for powerful, simple and secure public or private cloud management
- ExtremeCloud IQ – Site Engine for centralized, on-premises management capabilities
- 1-year ExtremeCloud IQ Pilot subscription included with each 5520 switch
* Supported in a future release
Features:
Universal Hardware Platform
The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 5520 assumes the features/capabilities of the selected OS.
The 5520 persona activation can be done manually at bootup, including via the system CLI. Or, it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted, the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system – eliminating the need for manual selection.
Ethernet Fabric Services
The 5420 supports a variety of Ethernet Fabric services, including Extreme’s Fabric Connect when running VOSS and Extreme’s IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme’s Fabric Connect and IP Fabric on the 5420 enable the creation of virtualized networks that automate network operations, simplify network provisioning and enhance security, all while reducing the strain on network and IT personnel.
Extended Edge Switching
The 5520 models support Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge Switching solution, the 5520, when running EXOS, can be combined with Extreme’s V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces costs.
VIM Options for Flexible Uplinks
Versatile Interface Modules (VIMs) on the 5520 provide flexible uplink capabilities – with 5520 models offering a single VIM slot for this purpose. VIM options include 4-port 10Gb or 25Gb modules that include LRM and 256-bit MACsec support.
High-Performance Stacking
The 5520 also supports high-speed 160Gb stacking when running ExtremeXOS via its two built-in QSFP28 ports. Up to eight systems can be stacked using qualified QSFP+ direct attach cables and optical transceivers.
Power over Ethernet (PoE)
The 5520 Series includes Power over Ethernet (PoE) models with standards-based IEEE 802.3bt (30/60/90W) PoE support. This enables the 5520 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. 5520 PoE models also support perpetual and fast PoE for even more efficient and reliable powered edge device operation.
Management
The 5520 can be managed by ExtremeCloud IQ or ExtremeCloud IQ – Site Engine for comprehensive unified management with a consolidated view of users, devices and applications across wired and wireless networks. (NOTE: Each 5520 unit also includes a 1-year ExtremeCloud IQ Pilot subscription.)
Zero-touch provisioning from ExtremeCloud IQ lets one quickly bring new 5520 switches online as well as enable the selection of the operating system (OS) persona. Alternatively, 5520 on-box management can be done manually via a webbased GUI or generic CLI.
* Supported in a future release
Specifications:
5520-48T | 5520-48W | 5520-12MW-36W | |
---|---|---|---|
Hardware Summary | |||
Interfaces |
|
|
|
Performance and Scale | |||
Max Active 10/100/ 1000Mb Ports | 48 | 48 | 36 |
Max Active 100Mb/1Gb/ 2.5Gb Ports | 0 | 0 | 12 |
Max Active 100Mb/1Gb SFP ports | 0 | 0 | 0 |
Max Active 1/10Gb SFP+ Ports1 | 12 | 12 | 12 |
Max Active 25Gb SFP28 Ports1 | 12 | 12 | 12 |
Max Active 40Gb QSFP+ Ports2 | 2 | 2 | 2 |
Max Active 50Gb Ports2 | 4 | 4 | 4 |
Max Active 40Gb Stacking Ports3 | 2 | 2 | 2 |
Aggregated Switch Bandwidth | 696 Gbps | 696 Gbps | 792 Gbps |
Frame Forwarding Rate | 517.8 mpps | 517.8 mpps | 589.3 mpps |
Physical | |||
Dimensions | Chassis Only: 17.4 in (W) x 1.7 in (H) x 17.4 in (D) 441 mm x 44 mm x 442 mm With PSU: 17.4 in (W) x 1.7 in (H) x 18.1 in (D) 441 mm x 44 mm x 449 mm |
||
Weight | 12.7 lb / 5.76 kg | 13.4 lb / 6.06 kg | 14.0 lb / 6.33 kg |
Power Supply Unit Specifications | |||
Voltage Input Range (Nominal) | 350W AC PSU: 100-127/200-240 VAC 715W AC PSU: 100-127/200-240 VAC 1100W AC PSU: 100-127/200-240 VAC 2000W AC PSU4: 100-127/200-240 VAC |
||
Line Frequency Range | 350W AC PSU: 47 to 63 Hz 715W AC PSU: 47 to 63 Hz 1100W AC PSU: 47 to 63 Hz 2000W AC PSU4: 47 to 63 Hz |
||
Power Supply Input Socket | 350W AC PSU: IEC/EN 60320 C14 715W AC PSU: IEC/EN 60320 C16 1100W AC PSU: IEC/EN 60320 C16 2000W AC PSU4: IEC/EN 60320 C16 |
||
Power Cord Input Plug | 350W AC PSU: IEC/EN 60320 C15 715W AC PSU: IEC/EN 60320 C15 1100W AC PSU: IEC/EN 60320 C15 2000W AC PSU4: IEC/EN 60320 C15 |
||
Operating Temperature | 350W AC PSU: 0° C to 50° C Normal Operation 715W AC PSU: 0° C to 50° C Normal Operation 1100W AC PSU: 0° C to 50° C Normal Operation 2000W AC PSU4: 0° C to 45° C5 |
||
PoE Power Budget | |||
1 x 715W | - | 483W | 464W |
2 x 715W | - | 1068W | 1049W |
1 x 1100W | - | 868W | 849W |
2 x 1100W | - | 1770W | 1751W |
1 x 2000W @ 100-120VAC | - | 868W | 849W |
1 x 2000W @ 200-240VAC | - | 1768W | 1749W |
2 x 2000W @ 100-120VAC | - | 1858W | 1839W |
2 x 2000W @ 200-240VAC | - | 3568W | 3549W |
Minimum/Maximum Power Consumption and Heat Dissipation | |||
Minimum Power Consumption (Watts) | 60 | 59 | 66 |
Minimum Heat Dissipation (BTU/hr) | 205 | 203 | 224 |
Maximum Power Consumption (Watts)6 | 171 | 4100 | 4095 |
Maximum Heat Dissipation (BTU/hr)7 | 584 | 1817 | 1862 |
Fan and Acoustic Noise | |||
Typical | Single 350W AC PSU, no VIM | Single 1100W AC PSU, no VIM | Single 1100W AC PSU, no VIM |
Maximum | Dual 350W AC PSU, 5520-VIM-4YE | Dual 2000W AC PSU (240VAC), 5520-VIM-4YE | Dual 2000W AC PSU (240VAC), 5520-VIM-4YE |
Bystander Sound Pressure |
|
|
|
Sound Power |
|
|
|
Environmental | |||
Environmental Specifications |
|
||
Environmental Compliance |
|
||
Operating Conditions |
|
||
Packaging and Storage Specifications |
|
||
Regulatory and Safety |
|
||
EMI/EMC Standards |
|
||
Country Specific |
|
||
IEEE 802.3 Media Access Standards |
|
* Notes on use of the 2 x Stacking/SFP-DD ports
1 Includes 8 ports available through channelization of the 2 x QSFP28 ports when not used for stacking with EXOS, or with VOSS 8.4.2 or later
2 Available through channelization of the 2 x QSFP28 ports when these ports are not used for stacking in EXOS, or with VOSS 8.4.2 or later
3 Stacking supported in EXOS mode only
4 200-240 VAC is required to achieve full 2000W output. If run at 100-120VAC, output is limited to 1100W.
5 At sea-level, 0o C to 40o C at 1500m; 0o C to 35o C at 3000m.
6 Includes maximum PoE load (W) through the switch
7 Does not include PoE load heat dissipated through external electronic load
Software Scaling Values:
5520 Series with ExtremeXOS
- MAC Table: 114,688/65,536
- IPv4 ARP Table: 60,000/41,000
- IPv4 Route Table: 81,000/16,000
- IP Multicast Entries (S,G,V): 43,000/24,000
- IPv6 ND Table: 18,000
- IPv6 Route Table: 40,000/8,000
- ACL (Ingress/Egress): 9,216/1,024
- QoS Egress Queues/Port: 8
- VLANs:4,094
- Routed VLANS: 2,048
One Policy Scaling
- Policy Profiles: 63
- Unique permit/deny rules per switch: 8,120
- Authenticated policy users/switch: 9,216
5520 Series with VOSS
- MAC Table: 40,960 (81,920 non-Fabric)
- IPv4 ARPARP/IP Host Table: 16,000/48,000
- IPv4 Route Table: 15,500
- IP Multicast Routes: 4,000
- IPv6 ND Table: 16,000
- IPv6 Route Table: 7,500
- IPv4 ACL (Ingress/Egress): 1,024/336
- QoS Egress Queues/Port: 8
- VLANs: 4,059
- Routed VLANS: 500
Fabric Connect Scaling
- Fabric Adjacencies per switch: 128
- Fabric nodes per area (BEB + BCB): 800
- BEB Nodes per VSN (I-SID): 500
- L2 VSNs: 3500
- L3 VSNs: 256
Documentation:
Download the Extreme Networks ExtremeSwitching 5520 Series Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
Our Price: $1,598.00
48 x 10/100/1000BASE-T full/half duplex MACsec-capable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1 VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $9,250.00
48 x 10/100/1000BASE-T full/half duplex 802.3bt 90W PoE MACseccapable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1 VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $11,096.00
Our Price: $2,338.00
Our Price: $3,079.00
12 x 100Mb/1Gb/2.5Gb/5Gb 802.3bt 90W PoE MACsec-capable ports plus 36 x 10/100/1000BASE-T 802.3bt 90W PoE full/half duplex MACsec-capable ports, includes 2 x Stacking/QSFP28 ports, 3 fan modules, 1VIM slot, 2 unpopulated modular PSU slots, Base software license, includes 1-year XIQ Pilot subscription
Our Price: $13,569.00
