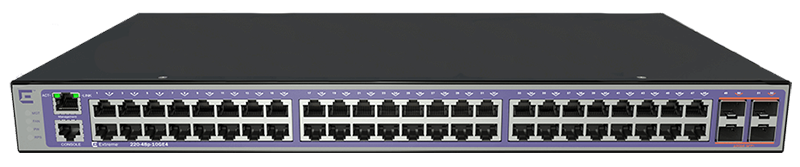

Extreme Networks ExtremeSwitching 210 48-port Switch
Managed Gigabit Switches for Enterprise and SMB
48 port 10/100/1000BASE-T, 4 1GbE unpopulated SFP ports, 1 Fixed AC PSU, L2 Switching with Static Routes, 1 country-specific power cord
Our Price: $1,872.00
48 port 10/100/1000BASE-T PoE+ (370W), 4 1GbE unpopulated SFP ports, 1 Fixed AC PSU, L2 Switching with Static Routes, 1 country-specific power cord
Our Price: $2,969.00
Click here to jump to more pricing!
Overview:
The ExtremeSwitching 210 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.
The series consists of six switches including 12-, 24-, and 48-port Gigabit Ethernet switches and 12-, 24-, and 48-port Gigabit PoE+ models. All models provide nonblocking Gigabit per port performance and include either 2 or 4 SFP ports for fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments.
The 210 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser, or managed by ExtremeManagement for centralized provisioning, monitoring and troubleshooting. And for advanced users, the 210 Series offers an industry-standard CLI along with scripting capabilities.
All ExtremeSwitching 210 Series switches include a Limited Lifetime Warranty, whichprovides advanced hardware replacement with next business day shipment.
Highlights
Business Alignment
- 12, 24, or 48 Gigabit Ethernet ports
- 12, 24, or 48 IEEE 802.3at PoE port models
- 2 or 4 1000 Base-X SFP ports
- Line rate performance on all ports
- Comprehensive Layer 2 Edge feature set
- Layer 3 Static Routing with 60 routes for network segmentation
- Access control lists for granular security control
- Limited Lifetime Warranty
Flexible Management Options
- ExtremeCloud cloud-based management
- Centralized enterprise management via ExtremeManagement
- Web browser-based management
- Industry-standard command line interface (CLI) with scripting capabilities
Features:
Ideal for Businesses of all Sizes
The ExtremeSwitching 200 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices, and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.
Multiple Office Deployment Options
The series provides non-blocking Gigabit per port performance and include either 2 or 4 SFP or SFP+ ports for fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments.
Flexible Management Options
The 200 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser or managed by ExtremeManagement for centralized provisioning, monitoring, and troubleshooting.
Specifications:
210-48t-GE2 | 210-48p-GE2 | |
---|---|---|
Hardware Summary | ||
Ports |
|
|
Performance | 104 Gbps 77.4 Mpps |
104 Gbps 77.4 Mpps |
PoE Power | N/A | 370W |
Physical | ||
Dimensions | 4.4 cm (H) x 44.1 cm (W) x 25.4 cm (D) 1.73” (H) x 17.38” (W) x 10.0” (D) |
|
Weight | 3.75 kg (8.27 lbs) | 4.51 kg (9.94 lbs) |
Power | ||
Minimum Heat Dissipation (BTU/HR) | 90 | 119 |
Minimum Power Consumption (Watts) | 27 | 35 |
Maximum* Heat Dissipation (BTU/HR) | 138 | 382 |
Maximum* Power Consumption (Watts) | 41 | 482 |
Acoustics and Fan | |||||
---|---|---|---|---|---|
Switch Model | Temp Range | Bystander Sound Pressure (DBA) | Declared Sound Power (BA) | Fan Speed | # of Fans in Switch |
210-48t-GE2 | 0C-40C | 43.5 | 5.6 | Low | 2 |
40C-50C | 52.9 | 6.7 | High | 2 | |
210-48p-GE2 | 0C-40C | 41.6 | 5.4 | Low | 3 |
40C-50C | 52.6 | 6.7 | High | 3 |
Note *Based on Max PoE power load for PoE models
Software Features and Standards/Protocols:
CPU/Memory
- ARM Cortex-A9 32-bit processor, 400 MHz clock
- 512MB DRAM
- 128MB Flash
- 1.5MB MAC buffer; 128K L2 Cache (CPU)
Platform Specifications
- Maximum MAC Addresses: 16,000
- VLANs: Up to 1024
- MSTP instances: 4
- Link Access Groups (LAGs): 6
- ACLs: 100 with 1023 rules per list
- Traffic Classes (Queues): 8
Switching
- Core Switching Features
- IEEE 802.1AB – Link Layer Discovery Protocol (LLDP)
- IEEE 802.1D – Spanning tree compatibility
- IEEE 802.1p – Ethernet priority with user provisioning and mapping
- IEEE 802.1s – Multiple spanning tree compatibility
- IEEE 802.1Q – Virtual LANs with port-based VLANs
- IEEE 802.1X – Port-based authentication with Guest VLAN support
- IEEE 802.1W – Rapid spanning tree compatibility
- IEEE 802.3 – 10BASE-T
- IEEE 802.3u – 100BASE-T
- IEEE 802.3ab – 1000BASE-T
- IEEE 802.1ak – Virtual Bridged Local Area Networks
- IEEE 802.3ac – VLAN tagging
- IEEE 802.3ad – Link aggregation
- IEEE 802.3at - PoE+ Power over Ethernet
- IEEE 802.3az - Energy Efficient Ethernet on 10/100/1000 ports
- IEEE 802.3x – Flow control
- GARP – Generic Attribute Registration Protocol
- GMRP – Dynamic L2 multicast registration
- GVRP – Dynamic VLAN registration
- RFC 4541 – Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
- ANSI/TIA-1057 – LLDP-Media Endpoint Discovery (MED)
- RFC 5171 – Unidirectional Link Detection (UDLD) Protocol
- Advanced Layer 2 Features
- Authentication, Authorization, and Accounting (AAA)
- Broadcast/Multicast/Unknown unicast storm recovery
- DHCP Snooping
- IGMP Snooping Querier
- Multicast VLAN Registration (MVR)
- Industry Standard Discovery Protocol (CDP interoperability)
- IPv6 Classification APIs
- Jumbo Ethernet frame support
- Port MAC locking
- Port mirroring
- Protected ports
- Static MAC filtering
- Voice VLANs
- Unauthenticated VLAN
- Internal 802.1X Authentication Server
- 802.1X Monitor Mode
- 802.1X Client Scaling
- Link Dependency
- IPv6 RA Guard (Stateless)
- STP Loop Guard
- STP Root Guard
- BPDU Guard
Routing
- IPv4 Static Routes (up to 60 routes)
- Provides basic routing through manual routing configuration
Quality of Service
- Access Control Lists (ACLs)
- Permit/deny actions for inbound IP and Layer-2 traffic classification based on:
- Time-Based ACL
- Source/Destination IP address
- TCP/UDP Source/Destination port
- IP Protocol Type
- Type of Service (ToS) or differentiated services (DSCP) field
- Source/Destination MAC address
- EtherType
- IEEE 802.1p user priority (outer and/ or inner VLAN tag)
- VLAN ID (outer and/or inner VLAN tag)
- RFC 1858—Security Considerations for IP Fragment Filtering
- Permit/deny actions for inbound IP and Layer-2 traffic classification based on:
- Optional ACL Rule Attributes
- Assign flow to a specific Class of Service (CoS) queue
- Redirect matching traffic flows
- Differentiated Services (DiffServ)
- Classify traffic based on same criteria as ACLs and optionally:
- Mark the IP DSCP or Precedence header fields
- Police the flow to a specific rate with two-color aware support
- RFC 2474—Definition of the differentiated services field (DS field) in the IPv4 and IPv6 headers
- RFC 2475—An architecture for differentiated services
- RFC 2597—Assured forwarding Per-Hop Behavior (PHB) group
- RFC 2697—Single-rate policing
- RFC 3246—An expedited forwarding PHB
- RFC 3260—New terminology and clarifications for DiffServ
- Classify traffic based on same criteria as ACLs and optionally:
- Class of Service (CoS) Queue Mapping Configuration
- Auto-VoIP–Automatic CoS settings for VoIP
- IP DSCP-to-queue mapping
- Configurable interface trust mode (IEEE 802.1p, DSCP, or untrusted)
- Interface egress shaping rate
- Strict priority versus weighted scheduling per queue
System Facilities
- Event and error logging facility
- Run-time and configuration download capability
- PING utility
- Xmodem
- FTP Transfers via IPv4/IPv6
- Malicious Code Detection
- TACACS+
- RFC 768—UDP
- RFC 783—TFTP
- RFC 791—IP
- RFC 792—ICMP
- RFC 793—TCP
- RFC 826—ARP
- RFC 894—Transmission of IP datagrams over Ethernet networks
- RFC 896—Congestion control in IP/TCP networks
- RFC 951—BOOTP
- RFC 1034—Domain names - concepts and facilities
- RFC 1035—Domain names - implementation and specifi-cation
- RFC 1321—Message digest algorithm
- RFC 1534—Interoperability between BOOTP and DHCP
- RFC 2021—Remote network monitoring management information base version 2
- RFC 2030—Simple Network Time Protocol (SNTP)
- RFC 2131—DHCP relay
- RFC 2132—DHCP options and BOOTP vendor extensions
- RFC 2819—Remote Network Monitoring Management Information Base
- RFC 2865—RADIUS client
- RFC 2866—RADIUS accounting
- RFC 2868—RADIUS attributes for tunnel protocol support
- RFC 2869—RADIUS Extensions
- RFC 3579—RADIUS support for EAP
- RFC 3580—IEEE 802.1X RADIUS usage guidelines
- RFC 3164—The BSD syslog protocol
- RFC 3580—802.1X RADIUS Usage Guidelines
- RFC 5176—Dynamic Authorization Server (DisconnectRequest processing only)
- RFC 5424—The Syslog Protocol
Management
- Industry-standard CLI
- IPv6 management
- Password management
- E-mailing of alerts
- Auto-install support for firmware images and configuration files
- SNMP v1, v2, and v3
- SSH 1.5 and 2.0
- RFC 4252: SSH authentication protocol
- RFC 4253: SSH transport layer protocol
- RFC 4254: SSH connection protocol
- RFC 4251: SSH protocol architecture
- RFC 4716: SECSH public key file format
- RFC 4419: Diffie-Hellman group exchange for the SSH transport layer protocol
- SSL 3.0 and TLS 1.0
- RFC 2246: The TLS protocol, version 1.0
- RFC 2818: HTTP over TLS
- RFC 3268: AES cipher suites for transport layer security
- Secure Copy (SCP)
- TACACS+
- sFlow
- Telnet
- Web
- Java Plug-in 1.6.0_01 and Java Script 1.3
- RFC 6415—Web Host Metadata
Advanced Management Features
- Industry Standard CLI with the following features:
- Scripting capability
- Command completion
- Context sensitive help
- Optional user password encryption
- Multi-session Telnet server
- Remote Switch Port Analyzer (RSPAN)
- ExtremeCloud™ cloud-based management
- ExtremeManagement Center support
- Zero-touch provisioning with ExtremeCloud and ExtremeManagement
SNMP MIBs
- IEEE 802.1X MIB (IEEE 802.1-PAEMIB 2004 Revision)
- IEEE 802.3AD MIB (IEEE 802.3-ADMIB)
- IANAifType-MIB
- RFC 1213 – MIB II
- RFC 1493 – Bridge MIB
- RFC 1612 – DNS resolver MIB extensions
- RFC 1643 – Definitions of managed objects for the Ethernet-like interface types
- RFC 2233 – Interfaces group MIB using SMI v2
- RFC 2613 – SMON MIB
- RFC 2618 – RADIUS authentication client MIB
- RFC 2620 – RADIUS accounting MIB
- RFC 2674 – VLAN MIB
- RFC 2737 – Entity MIB version 2
- RFC 2819 – RMON groups 1, 2, 3, and 9
- RFC 2863 – IF-MIB
- RFC 2925 – Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations
- RFC 3273 – RMON MIB for high capacity networks
- RFC 3291 – Textual conventions for Internet network addresses
- RFC 3434 – RMON MIB extensions for high capacity alarms
- RFC 4022 – TCP-MIB
- RFC 4113 – UDP-MIB
- RFC 2096 – IP forwarding table MIB
- RFC 3636 – MAU MIB
- RFC 3289 – Management information base for the DiffServ architecture (readonly)
Operating Conditions
- Operating Temp: °0C to 50°C (32° F to 122° F)
- Operating Relative Humidity: 10% to 95% (noncondensing)
- Operating Altitude: 0-3000 meters (9,850 feet)
Packaging and Storage
- Storage Temp: -40° C to 70° C (-40° F to 158° F)
- Humidity: 10% to 95% relative humidity, non-condensing
- Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
- Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
- Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
- Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)
Environmental Specifications
- EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
- EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
- EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
- EN/ETSI 300 753 (1997-10) - Acoustic Noise
- ASTM D3580 Random Vibration Unpackaged 1.5 G
Environmental Compliance
- EU RoHS 2011/65/EU
- EU WEEE 2012/19/EU
- China RoHS SJ/T 11363-2006
Regulatory and Safety
- North American ITE
- UL 60950-1 2nd edition A2:2014, Listed Device (U.S.)
- CSA 22.2 No. 60950-1 2nd edition 2014(Canada)
- Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
- CDRH Letter of Approval (US FDA Approval)
- European ITE
- EN 60950-1:2006+A11:2009 + A1:2010 + A12:2011 + A2:2013 2nd Ed.
- EN 60825-1:2007 / IEC 60825-1:2007 Class 1 (Lasers Safety)
- 2014 / 35/ EU Low Voltage Directive
- International ITE
- CB Report & Certificate per IEC 60950-1: 2005 + A1:2009 + A2:2013 + National Differences
- AS/NZS 60950-1 (Australia /New Zealand)
EMI/EMC Standards
- North American EMC for ITE
- FCC CFR 47 part 15 Class A (USA)
- ICES-003 Class A (Canada)
- European EMC Standards
- EN 55032: 2012 Class A
- EN 55024: 2010
- EN 61000-3-2,2014 (Harmonics)
- EN 61000-3-3 2013 (Flicker)
- EN 300 386 v1.6.1 (EMC Telecommunications)
- 2014/30/EU EMC Directive
International EMC Certifications
- CISPR 32: 2012, Class A (International Emissions)
- AS/NZS CISPR32: 2013
- CISPR 24:2010 Class A (International Immunity)
- IEC 61000-4-2:2008/EN 61000-4-2:2009 Electro-static Discharge, 8kV Contact, 15 kV Air, Criteria A
- IEC 61000-4-3:2010/EN 61000-4-3:2006 +A1:2008 +A2:2010 Radiated Immunity 10V/m, Criteria A
- IEC 61000-4-4:2012. / EN 61000-4-4:2012 Transi-ent Burst, 1 kV, Criteria A
- IEC 61000-4-5:2014 /EN 61000-4-5:2014 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
- IEC 61000-4-6:2013/EN 61000-4-6:2014 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Crite-ria A
- IEC/EN 61000-4-11:2004 Power Dips & Interrup-tions, >30%, 25 periods, Criteria C
Country Specific
- VCCI Class A (Japan Emissions)
- ACMA RCM (Australia Emissions)
- CCC Mark
- KCC Mark, EMC Approval (Korea)
- Taiwan BSMI
- Brazil Anatel
- Russia EAC
Documentation:
Download the Extreme Networks ExtremeSwitching 210 Series Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
48 port 10/100/1000BASE-T, 4 1GbE unpopulated SFP ports, 1 Fixed AC PSU, L2 Switching with Static Routes, 1 country-specific power cord
Our Price: $1,872.00
48 port 10/100/1000BASE-T PoE+ (370W), 4 1GbE unpopulated SFP ports, 1 Fixed AC PSU, L2 Switching with Static Routes, 1 country-specific power cord
Our Price: $2,969.00
