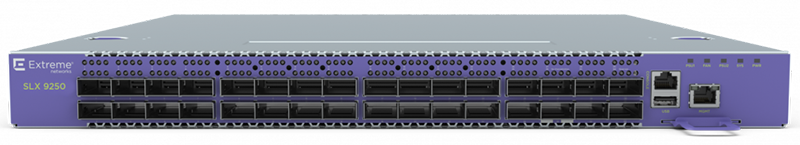

Extreme Networks ExtremeSwitching SLX 9250-32C Switch
Compact fixed form, purpose-built 32 x 100/40 GbE cost-effective Spine Switches with built-in Extreme Fabric Automation

Application Telemetry

Application Telemetry is a unique feature of ExtremeAnalytics that enables the ExtremeSwitching infrastructure to participate in the forwarding and analysis of network application flows. By combining packet flow information from the SLX 9250 along with the deep packet inspection abilities of ExtremeAnalytics, actionable insights into network and application performance can be provided. This all without the need for expensive sensors or collectors.

Plug-n-Play Data Center Fabrics with Extreme Fabric Automation

Extreme Fabric Automation simplifies and accelerates the deployment of the data center IP Fabric. The on-box application runs as a service on the Guest VM within the SLX and uses industry-standard open API based programmable interfaces to provide the easiest way to deploy, provision and automate single or multiple data center IP Fabric networks in the fastest and most efficient way. Extreme Fabric Automation is also the point of integration for VMware vCenter, Microsoft Hyper V and OpenStack.

Modular, Virtualized Operation System

The SLX 9250 runs Extreme SLX-OS, a fully virtualized Linux-based operating system that delivers process-level resiliency and fault isolation. SLX-OS supports advanced switching features and is highly programmable with support for REST API with the YANG data model, Python, and NETCONF. It is based on Ubuntu Linux, which offers all the advantages of open source and access to commonly used Linux tools.

High-Availability and Reliability

The SLX 9250 delivers the high performance and reliability required by modern enterprises and service provider data centers. It is designed for high availability from both a software and hardware perspective, such as a clear separation between the control plane and data plane and redundant power supplies and fan modules.

Embedded Network Visibility

Extreme’s Insight Architecture leverages an innovative combination of SLX Series operating software and hardware features to provide pervasive visibility without impacting switching or network performance. This flexible and open solution enables organizations to deploy Extreme-provided and/ or third-party applications and tools directly on the SLX system for real time visibility.

Management

The SLX 9250 can be managed in a variety of ways. REST, NETCONF management interface or simple onbox management functions are delivered with CLI for manual configuration. For centralized management, the Extreme Management Center (XMC) delivers a comprehensive unified management capability. XMC provides a consolidated view of users, devices and applications for wired and wireless networks – from data center to edge.

Environmental Specifications

• EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
• EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
• EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
• EN/ETSI 300 753 (1997-10) - Acoustic Noise
• ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

• EU RoHS 2011/65/EU
• EU WEEE 2012/19/EU
• China RoHS SJ/T 11363-2006
• Taiwan RoHS CNS 15663(2013.7)

Packaging and Storage Specifications

• Temp: -40° C to 70° C (-40° F to 158° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
• Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
• Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
• Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

IEEE Compliance

• Ethernet
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1s Multiple Spanning Tree
• IEEE 802.1w Rapid Reconfiguration of Spanning Tree Protocol
• IEEE 802.3 Ethernet
• IEEE 802.3ad Link Aggregation with LACP
• IEEE 802.3ae 10G Ethernet
• IEEE 802.1Q VLAN Tagging
• IEEE 802.1p Class of Service Prioritization and Tagging
• IEEE 802.1v VLAN Classification by Protocol and Port
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• IEEE 802.3x Flow Control (Pause Frames)

RFC Compliance

• General Protocols
  • RFC 768 User Datagram Protocol (UDP)
  • RFC 783 TFTP Protocol (revision 2)
  • RFC 791 Internet Protocol (IP)
  • RFC 792 Internet Control Message Protocol (ICMP)
  • RFC 793 Transmission Control Protocol (TCP)
  • RFC 826 ARP
  • RFC 854 Telnet Protocol Specification
  • RFC 894 A Standard for the Transmission of IP Datagram over Ethernet Networks
  • RFC 959 FTP
  • RFC 1027 Using ARP to Implement Transparent Subnet Gateways (Proxy ARP)
  • RFC 1112 IGMP v1
  • RFC 1157 Simple Network Management Protocol (SNMP) SNMP v1 and v2c
  • RFC 1305 Network Time Protocol (NTP) Version 3
  • RFC 1492 TACACS+
  • RFC 1519 Classless Inter-Domain Routing (CIDR)
  • RFC 1584 Multicast Extensions to OSPF
  • RFC 1765 OSPF Database Overflow
  • RFC 1812 Requirements for IP Version 4 Routers
  • RFC 1997 BGP Communities Attribute
  • RFC 1908 Coexistence between Version 1 and Version 2 of the Internetstandard Network Management Framework
  • RFC 2068 HTTP Server
  • RFC 2131 Dynamic Host Configuration Protocol (DHCP)
  • RFC 2154 OSPF with Digital Signatures (Password, MD-5)
  • RFC 2236 IGMP v2
  • RFC 2267 Network Ingress Filtering Option — Partial Support
  • RFC 2328 OSPF v2
  • RFC 2370 OSPF Opaque Link-State Advertisement (LSA)
  • RFC 2375 IPv6 Multicast Address Assignments
  • RFC 2385 Protection of BGP Sessions with the TCP MD5 Signature Option
  • RFC 2439 BGP Route Flap Damping
  • RFC 2460 Internet Protocol, Version 6 (v6) Specification (on management interface)
  • RFC 2462 IPv6 Stateless Address Auto-Configuration
  • RFC 2464 Transmission of IPv6 Packets over Ethernet Networks (on management interface)
  • RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
  • RFC 2571 An Architecture for Describing SNMP Management Frameworks
  • RFC 2545 Use of BGP-MP Extensions for IPv6
  • RFC 2578 Structure of Management Information Version 2
  • RFC 2579 Textual Conventions for SMIv2
  • RFC 2580 Conformance Statements for SMIv2
  • RFC 2710 Multicast Listener Discovery (MLD) for IPv6 (future)
  • RFC 2711 IPv6 Router Alert Option
  • RFC 2740 OSPFv3 for IPv6
  • RFC 2865 Remote Authentication Dial-In User Service (RADIUS)
  • RFC 3101 The OSPF Not-So-Stubby Area (NSSA) Option
  • RFC 3137 OSPF Stub Router Advertisement
  • RFC 3176 sFlow
  • RFC 3392 Capabilities Advertisement with BGPv4
  • RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
  • RFC 3411 An Architecture for Describing SNMP Frameworks
  • RFC 3412 Message Processing and Dispatching for the SNMP
  • RFC 3413 Simple Network Management Protocol (SNMP) Applications
  • RFC 3414 User-based Security Model
  • RFC 3415 View-based Access Control Model
  • RFC 3416 Version 2 of SNMP Protocol Operations
  • RFC 3417 Transport Mappings
  • RFC 3418 Management Information Base (MIB) for the SNMP
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network
  • RFC 3587 IPv6 Global Unicast Address Format
  • RFC 4291 IPv6 Addressing Architecture
  • RFC 3623 Graceful OSPF Restart — IETF Tools
  • RFC 3768 VRRP
  • RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
  • RFC 4271 BGPv4
  • RFC 4443 ICMPv6 (replaces 2463)
  • RFC 4456 BGP Route Reflection
  • RFC 4510 Lightweight Directory Access Protocol (LDAP): Technical Specification Road Map
  • RFC 4724 Graceful Restart Mechanism for BGP
  • RFC4750 OSPFv2.MIB RFC4760 MP-BGP
  • RFC 4861 IPv6 Neighbor Discovery
  • RFC 4893 BGP Support for Four-Octet AS Number Space
  • RFC 5082 Generalized TTL Security Mechanism (GTSM)
  • RFC 5880 Bidirectional Forwarding Detection (BFD)
  • RFC 5881 Bidirectional Forwarding Detection (BFD) for IPv4 and IPv6 (Single Hop)
  • RFC 5882 Generic Application of Bidirectional Forwarding Detection (BFD)
  • RFC 5883 Bidirectional Forwarding Detection (BFD) for Multihop Paths
  • RFC 5942 IPv6 Neighbor Discovery
  • RFC 7348 Virtual eXtensible Local Area Network (VxLAN)
  • RFC 7432 BGP-EVPN — Network Virtualization Using VXLAN Data Plane
• SSH/SCP/SFTP
  • RFC 4250 Secure Shell (SSH) Protocol Assigned Numbers
  • RFC 4251 Secure Shell (SSH) Protocol Architecture
  • RFC 4252 Secure Shell (SSH) Authentication Protocol
  • RFC 4253 Secure Shell (SSH) Transport Layer Protocol
  • RFC 4254 Secure Shell (SSH) Connection Protocol
  • RFC 4344 SSH Transport Layer Encryption Modes
  • RFC 4419 Diffie-Hellman Group Exchange for the Secure Shell (SSH) Transport Layer Protocol
• MIBs
  • RFC 2674 Bridge MIB
  • RFC 2819 RMON Groups 1, 2, 3, 9
  • RFC 2863 The Interfaces Group MIB
  • RFC 3826 SNMP-USM-AES-MIB
  • RFC 4022 TCP MIB
  • RFC 4113 UDP.MIB
  • RFC 4133 Entity MIB (Version 3); rmon.mib, rmon2.mib, sflow_ v5.mib, bridge. mib, pbridge.mib, qbridge.mib, rstp. mib, lag. mib, lldp.mib, lldp_ext_dot1.mib, lldp_ext_dot3.mib
  • RFC 4273 BGP-4 MIB
  • RFC 4292 IP Forwarding MIB
  • RFC 4293 Management Information Base for the Internet Protocol (IP)
  • RFC 4750 OSPFv2.MIB
  • RFC 7331 BFD MIB

Layer 2 Switching

• Conversational MAC Learning
• Virtual Link Aggregation Group (vLAG) spanning
• Layer 2 Access Control Lists (ACLs)
• Address Resolution Protocol (ARP) RFC 826
• Layer 2 Loop prevention in an overlay environment
• MLD Snooping
• IGMP v1/v2 Snooping
• MAC Learning and Aging
• Link Aggregation Control Protocol (LACP) IEEE 802.3ad/802.1AX
• Virtual Local Area Networks (VLANs)
• VLAN Encapsulation 802.1Q
• Per-VLAN Spanning Tree (PVST+/PVRST+)
• Rapid Spanning Tree Protocol (RSTP) 802.1w
• Multiple Spanning Tree Protocol (MSTP) 802.1s
• STP PortFast, BPDU Guard, BPDU Filter
• STP Root Guard
• Pause Frames 802.3x
• Static MAC Configuration
• Multi-Chassis Trunking (MCT)

Layer 3 Routing

• Border Gateway Protocol (BGP4+)
• DHCP Helper
• Layer 3 ACLs
• IGMPv2
• OSPF v2/v3
• Static routes
• IPv4/v6 ACL
• Bidirectional Forwarding Detection (BFD)
• 64-Way ECMP
• VRF Lite
• VRF-aware OSPF, BGP, VRRP, static routes
• VRRP v2 and v3
• IPv4/IPv6 dual stack
• ICMPv6 Route-Advertisement Guard
• Route Policies
• IPv6 ACL packet filtering
• BGP Additional-Path
• BGP-Allow AS
• BGP Generalized TTL Security Mechanism (GTSM)
• BGP Peer Auto Shutdown
• IPv6 routing
• OSPF Type-3 LSA Filter
• Wire-speed routing for IPv4 and IPv6 using any routing protocol
• BGP-EVPN Control Plane Signaling RFC 7432
• BGP-EVPN VXLAN Standard-based Overlay
• Multi-VRF
• IP Unnumbered Interface
• VRRP-E

Automation and Programmability

• gRPC Streaming protocol and API
• REST API with YANG data model
• Python
• PyNOS libraries
• DHCP automatic provisioning
• NETCONF API

High Availability

• BFD

Quality of Service

• ACL-based QoS
• Class of Service (CoS) IEEE 802.1p
• DSCP Trust
• DSCP to Traffic Class Mutation
• DSCP to CoS Mutation
• DSCP to DSCP Mutation
• Random Early Discard
• Per-port QoS configuration
• ACL-based Rate Limit
• Dual-rate, three-color token bucket
• ACL-based remarking of CoS/DSCP/Precedence
• ACL-based sFlow
• Scheduling: Strict Priority (SP), Deficit Weighted Round-Robin (DWRR)

Management and Monitoring

• Zero-Touch Provisioning (ZTP)
• IPv4/IPv6 management
• Industry-standard Command Line Interface (CLI)
• NETCONF API
• RESTCONF API with YANG data model
• SSH/SSHv2
• Link Layer Discovery Protocol (LLDP) IEEE 802.1AB
• MIB II RFC 1213 MIB
• Syslog (RASlog, AuditLog)
• Management VRF
• Switched Port Analyzer (SPAN)
• Telnet
• SNMwP v1, v2C, v3
• sFlow version 5
• Out-of-band management
• RMON-1, RMON-2
• NTP
• Management Access Control Lists (ACLs)
• Role-Based Access Control (RBAC)
• Range CLI support
• Python
• DHCP Option 82 Insertion
• DHCP Relay
• Timestamping

Security

• Port-based Network Access Control 802.1X
• RADIUS
• AAA
• TACACS+
• Secure Shell (SSHv2)
• TLS 1.1, 1.2
• HTTP/HTTPS
• BPDU Drop
• Lightweight Directory Access Protocol (LDAP)
• Secure Copy Protocol
• Control Plane Policing (CPP)
• LDAP/AD
• SFTP
• Port Security
