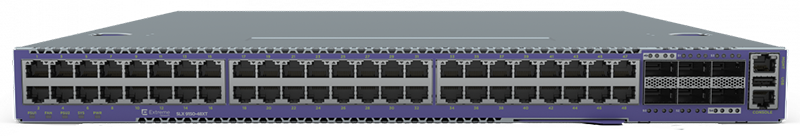

Extreme Networks ExtremeSwitching SLX 9150-48XT Switch
Compact fixed form, purpose-built high density 1/10/25/40/100 GbE cost-effective Leaf Switches with built-in Extreme Fabric Automation
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
SLX 9150 switches are purpose-built high density 1/10/25/40/100GbE fixed form factor switches designed for the needs of Enterprise data centers and service providers. They deliver scalable L2 and L3 resources with advanced features for network monitoring and network virtualization offering scalable and deterministic network performance while simplifying deployment and reducing cost.
SLX 9150 switches enable organizations to design open networks that accommodate a variety of applications and east-west traffic patterns. With its high-density, scale-out architecture and leading power efficiency and airflow choices, the SLX 9150 delivers a cost-effective solution that optimizes power, cooling, and data center space. With a rich set of Layer 2 and Layer 3 features and advanced visibility and automation capabilities, the SLX 9150 is built to address dynamic growth in highly virtualized environments, distributed applications, and digital transformation.
The SLX 9150 is a fixed 1/10/25/40/100GbE top-of-rack leaf switch with 32MB of packet buffer and an overall throughput of 2 Tbps in and out nonblocking switching capacity. It offers forty-eight 1/10/25 GbE SFP28 ports and 8 100/40 GbE QSFP28 ports.SFP and QSFP ports offer a choice of speeds — including 100, 40, 25, 10, or 1 GbE — along with a wide choice of transceivers and cables. Ports can be mixed, offering flexible design options to cost- effectively support demanding data center and service provider environments.
Highlights
- Delivers agility at all layers of the data center stack
- Two models – 48x25/10/1G + 8x100/40G (fiber) and 48x10/1G copper connectivity + 6 x 100/40G GbE uplink options in a fixed 1U form factor
- Copper ports support 10G and 1G and Fiber ports support 25G, 10G and 1G
- Full featured SLX operating system with advanced features supporting switching, Data Center Fabrics, BGPEVPN and VXLAN
- Utilizes the SLX Insight Architecture and SLX Visibility Services for flexible, real-time monitoring of virtualized, dynamic workloads to streamline troubleshooting
- Provides payload timestamping to more accurately set and measure performance SLAs
- All models offer a choice of AC/DC power supplies and F/R fans
- Extreme Fabric Automation leverages the onboard Extreme Insight Architecture’s Guest VM and enables plug-n-play fabrics for day 0 infrastructure provisioning and day 1 configuration of all tenant services across the entire fabric at no additional cost
Features:
Application Telemetry
Application Telemetry is a unique feature of ExtremeAnalytics that enables the ExtremeSwitching infrastructure to participate in the forwarding and analysis of network application flows. By combining packet flow information from the SLX 9150 along with the deep packet inspection abilities of ExtremeAnalytics, actionable insights into network and application performance can be provided. This all without the need for expensive sensors or collectors.
Plug-n-Play Data Center Fabrics with Extreme Fabric Automation
Extreme Fabric Automation simplifies and accelerates the deployment of the data center IP Fabric. The on-box application runs as a service on the Guest VM within the SLX and uses industry-standard open API based programmable interfaces to provide the easiest way to deploy, provision and automate single or multiple data center IP Fabric networks in the fastest and most efficient way. Extreme Fabric Automation is also the point of integration for VMware vCenter, Microsoft Hyper V and OpenStack.
Modular, Virtualized Operation System
The SLX 9150 runs Extreme SLX-OS, a fully virtualized Linux-based operating system that delivers process-level resiliency and fault isolation. SLX-OS supports advanced switching features and is highly programmable with support for REST API with the YANG data model, Python, and NETCONF. It is based on Ubuntu Linux, which offers all the advantages of open source and access to commonly used Linux tools.
High-Availability and Reliability
The SLX 9150 delivers the high performance and reliability required by modern enterprises and service provider data centers. It is designed for high availability from both a software and hardware perspective, such as a clear separation between the control plane and data plane and redundant power supplies and fan modules.
Embedded Network Visibility
Extreme’s Insight Architecture leverages an innovative combination of SLX Series operating software and hardware features to provide pervasive visibility without impacting switching or network performance. This flexible and open solution enables organizations to deploy Extreme-provided and/ or third-party applications and tools directly on the SLX system for real time visibility.
Management
The SLX 9150 can be managed in a variety of ways. REST, NETCONF management interface or simple onbox management functions are delivered with CLI for manual configuration. For centralized management, the Extreme Management Center (XMC) delivers a comprehensive unified management capability. XMC provides a consolidated view of users, devices and applications for wired and wireless networks – from data center to edge.
Specifications:
| SLX 9150-48Y | SLX 9150-48XT | |
|---|---|---|
| Ports |
|
|
| Power Supplies | Modular 750W AC power supply (up to two PSUs)
|
Modular 750W AC power supply (up to two PSUs)
|
| Fan Modules | 6 fan modules
|
6 fan modules
|
| Dimensions | 17.3in W / 20.9in D / 1.7in H (44.0cm / 53.2cm / 4.3cm) |
17.3in W / 20.9in D / 1.7in H (44.0cm / 53.2cm / 4.3cm) |
| Performance |
|
|
| CPU Memory |
|
|
| Packet Buffers | 32MB | 32MB |
| Power and Heat Dissipation | ||
| Minimum Heat Dissipation (BTU/ hr) (Idle, no port s linked) | 553 BTU/ hr | 642 BTU/ hr |
| Minimum Power Consumption (Watts) (Idle, no port s linked) | 167W | 194W |
| Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic) | 1600 BTU/ hr | 1225 BTU/ hr |
| Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic) | 469W | 359W |
| Operating Conditions |
|
|
| Software Specifications | ||
| Connector options |
|
|
| Maximum MAC addresses | 64,000 | |
| Maximum VLANs | 4,096 | |
| Maximum ACLs (IPv4/IPv6/L2) | 2,000 | |
| Maximum members in a standard LAG | 64 | |
| Maximum number of MCT switches | 2 | |
| Maximum number of Bridge Domains | 2,048 | |
| Maximum IPv4 unicast routes | 128,000 | |
| Maximum IPv6 unicast routes | 10,000 | |
| Maximum IPv4 host routes | 47,000 | |
| Maximum IPv4 host routes | 33,000 | |
| Maximum jumbo frame size | 9,216 bytes | |
| QoS priority queues (per port) | 8 | |
IEEE Compliance
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree
- IEEE 802.1w Rapid Reconfiguration of Spanning Tree Protocol
- IEEE 802.3 Ethernet
- IEEE 802.3ad Link Aggregation with LACP
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ba / 80 2.3bm 40 GBASE-X and 100 GBASE-X
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1p Class of Service Prioritization and Tagging
- IEEE 802.1v VLAN Classification by Protocol and Port
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- IEEE 802.3x Flow Control (Pause Frames)
- IEEE 802.3ae 10 GBASE-X
- IEEE 802.3 10 GBASE-T (up to 100 m using Cat6a cabling or better)
RFC Compliance
- General Protocols
- RFC 768 User Datagram Protocol (UDP)
- RFC 783 TFTP Protocol (revision 2)
- RFC 791 Internet Protocol (IP)
- RFC 792 Internet Control Message Protocol (ICMP)
- RFC 793 Transmission Control Protocol (TCP)
- RFC 826 ARP
- RFC 854 Telnet Protocol Specification
- RFC 894 A Standard for the Transmission of IP Datagram over Ethernet Networks
- RFC 959 FTP
- RFC 1027 Using ARP to Implement Transparent Subnet Gateways (Proxy ARP)
- RFC 1112 IGMP v1
- RFC 1157 Simple Network Management Protocol (SNMP) SNMP v1 and v2c
- RFC 1305 Network Time Protocol (NTP) Version 3
- RFC 1492 TACACS+
- RFC 1519 Classless Inter-Domain Routing (CIDR)
- RFC 1584 Multicast Extensions to OSPF
- RFC 1765 OSPF Database Overflow
- RFC 1812 Requirements for IP Version 4 Routers
- RFC 1997 BGP Communities Attribute
- RFC 1908 Coexistence between Version 1 and Version 2 of the Internetstandard Network Management Framework
- RFC 2068 HTTP Server
- RFC 2131 Dynamic Host Configuration Protocol (DHCP)
- RFC 2154 OSPF with Digital Signatures (Password, MD-5)
- RFC 2236 IGMP v2
- RFC 2267 Network Ingress Filtering Option — Partial Support
- RFC 2328 OSPF v2
- RFC 2370 OSPF Opaque Link-State Advertisement (LSA)
- RFC 2375 IPv6 Multicast Address Assignments
- RFC 2385 Protection of BGP Sessions with the TCP MD5 Signature Option
- RFC 2439 BGP Route Flap Damping
- RFC 2460 Internet Protocol, Version 6 (v6) Specification (on management interface)
- RFC 2462 IPv6 Stateless Address Auto-Configuration
- RFC 2464 Transmission of IPv6 Packets over Ethernet Networks (on management interface)
- RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
- RFC 2571 An Architecture for Describing SNMP Management Frameworks
- RFC 2545 Use of BGP-MP Extensions for IPv6
- RFC 2578 Structure of Management Information Version 2
- RFC 2579 Textual Conventions for SMIv2
- RFC 2580 Conformance Statements for SMIv2
- RFC 2710 Multicast Listener Discovery (MLD) for IPv6 (future)
- RFC 2711 IPv6 Router Alert Option
- RFC 2740 OSPFv3 for IPv6
- RFC 2865 Remote Authentication Dial-In User Service (RADIUS)
- RFC 3101 The OSPF Not-So-Stubby Area (NSSA) Option
- RFC 3137 OSPF Stub Router Advertisement
- RFC 3176 sFlow
- RFC 3392 Capabilities Advertisement with BGPv4
- RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
- RFC 3411 An Architecture for Describing SNMP Frameworks
- RFC 3412 Message Processing and Dispatching for the SNMP
- RFC 3413 Simple Network Management Protocol (SNMP) Applications
- RFC 3414 User-based Security Model
- RFC 3415 View-based Access Control Model
- RFC 3416 Version 2 of SNMP Protocol Operations
- RFC 3417 Transport Mappings
- RFC 3418 Management Information Base (MIB) for the SNMP
- RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network
- RFC 3587 IPv6 Global Unicast Address Format
- RFC 4291 IPv6 Addressing Architecture
- RFC 3623 Graceful OSPF Restart — IETF Tools
- RFC 3768 VRRP
- RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
- RFC 4271 BGPv4
- RFC 4443 ICMPv6 (replaces 2463)
- RFC 4456 BGP Route Reflection
- RFC 4510 Lightweight Directory Access Protocol (LDAP): Technical Specification Road Map
- RFC 4724 Graceful Restart Mechanism for BGP
- RFC4750 OSPFv2.MIB RFC4760 MP-BGP
- RFC 4861 IPv6 Neighbor Discovery
- RFC 4893 BGP Support for Four-Octet AS Number Space
- RFC 5082 Generalized TTL Security Mechanism (GTSM)
- RFC 5880 Bidirectional Forwarding Detection (BFD)
- RFC 5881 Bidirectional Forwarding Detection (BFD) for IPv4 and IPv6 (Single Hop)
- RFC 5882 Generic Application of Bidirectional Forwarding Detection (BFD)
- RFC 5883 Bidirectional Forwarding Detection (BFD) for Multihop Paths
- RFC 5942 IPv6 Neighbor Discovery
- RFC 7348 Virtual eXtensible Local Area Network (VxLAN)
- RFC 7432 BGP-EVPN — Network Virtualization Using VXLAN Data Plane
- SSH/SCP/SFTP
- RFC 4250 Secure Shell (SSH) Protocol Assigned Numbers
- RFC 4251 Secure Shell (SSH) Protocol Architecture
- RFC 4252 Secure Shell (SSH) Authentication Protocol
- RFC 4253 Secure Shell (SSH) Transport Layer Protocol
- RFC 4254 Secure Shell (SSH) Connection Protocol
- RFC 4344 SSH Transport Layer Encryption Modes
- RFC 4419 Diffie-Hellman Group Exchange for the Secure Shell (SSH) Transport Layer Protocol
- MIBs
- RFC 2674 Bridge MIB
- RFC 2819 RMON Groups 1, 2, 3, 9
- RFC 2863 The Interfaces Group MIB
- RFC 3826 SNMP-USM-AES-MIB
- RFC 4022 TCP MIB
- RFC 4113 UDP.MIB
- RFC 4133 Entity MIB (Version 3); rmon.mib, rmon2.mib, sflow_ v5.mib, bridge. mib, pbridge.mib, qbridge.mib, rstp. mib, lag. mib, lldp.mib, lldp_ext_dot1.mib, lldp_ext_dot3.mib
- RFC 4273 BGP-4 MIB
- RFC 4292 IP Forwarding MIB
- RFC 4293 Management Information Base for the Internet Protocol (IP)
- RFC 4750 OSPFv2.MIB
- RFC 7331 BFD MIB
Virtualization Support
- IEEE 802.1Bridging (Networking) and Network Management
- 802.1D MAC Bridges (a.k.a. Spanning Tree Protocol)
- 802.1p Traffic Class Expediting and Dynamic Multicast Filtering
- 802.1t 802.1D Maintenance
- 802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
- 802.1Q Virtual Local Area Networking (VLAN)
- 802.1Qbp Equal-Cost Multi-Path (Shortest Path Bridging)
- 802.1Qcj Automatic Attachment to Provider Backbone Bridging (PBB) Services (Partial Support)
- 802.1s Multiple Spanning Trees (MSTP)
- 802.1v VLAN Classification by Protocol & Port
- 802.1ag Connectivit y Fault Management
- 802.1ah Provider Backbone Bridges
- 802.1aq Shortest Path Bridging (SPB) MAC-in-MAC
- 802.1X Port-based Network Access Control
- 802.1AB-2005 Station & Media Access Control Connectivit y Discovery; aka LLDP (partial support)
Layer 2 Switching
- Conversational MAC Learning
- Virtual Link Aggregation Group (vLAG) spanning
- Layer 2 Access Control Lists (ACLs)
- Address Resolution Protocol (ARP) RFC 826
- Layer 2 Loop prevention in an overlay environment
- MLD Snooping
- IGMP v1/v2 Snooping
- MAC Learning and Aging
- Link Aggregation Control Protocol (LACP) IEEE 802.3ad/802.1AX
- Virtual Local Area Networks (VLANs)
- VLAN Encapsulation 802.1Q
- Per-VLAN Spanning Tree (PVST+/PVRST+)
- Rapid Spanning Tree Protocol (RSTP) 802.1w
- Multiple Spanning Tree Protocol (MSTP) 802.1s
- STP PortFast, BPDU Guard, BPDU Filter
- STP Root Guard
- Pause Frames 802.3x
- Static MAC Configuration
- Multi-Chassis Trunking (MCT)
- DCB features (HW ready)
Layer 3 Routing
- Border Gateway Protocol (BGP4+)
- DHCP Helper
- Layer 3 ACLs
- IGMPv2
- OSPF v2/v3
- Static routes
- IPv4/v6 ACL
- Bidirectional Forwarding Detection (BFD)
- 64-Way ECMP
- VRF Lite
- VRF-aware OSPF, BGP, VRRP, static routes
- VRRP v2 and v3
- IPv4/IPv6 dual stack
- ICMPv6 Route-Advertisement Guard
- Route Policies
- IPv6 ACL packet filtering
- BGP Additional-Path
- BGP-Allow AS
- BGP Generalized TTL Security Mechanism (GTSM)
- BGP Peer Auto Shutdown
- IPv6 routing
- OSPF Type-3 LSA Filter
- Wire-speed routing for IPv4 and IPv6 using any routing protocol
- BGP-EVPN Control Plane Signaling RFC 7432
- BGP-EVPN VXLAN Standard-based Overlay
- Multi-VRF
- IP Unnumbered Interface
- VRRP-E
Automation and Programmability
- gRPC Streaming protocol and API
- REST API with YANG data model
- Python
- PyNOS libraries
- DHCP automatic provisioning
- NETCONF API
High Availability
- BFD
Quality of Service
- ACL-based QoS
- Class of Service (CoS) IEEE 802.1p
- DSCP Trust
- DSCP to Traffic Class Mutation
- DSCP to CoS Mutation
- DSCP to DSCP Mutation
- Random Early Discard
- Per-port QoS configuration
- ACL-based Rate Limit
- Dual-rate, three-color token bucket
- ACL-based remarking of CoS/DSCP/Precedence
- ACL-based sFlow
- Scheduling: Strict Priority (SP), Deficit Weighted Round-Robin (DWRR)
Management and Monitoring
- Zero-Touch Provisioning (ZTP)
- IPv4/IPv6 management
- Industry-standard Command Line Interface (CLI)
- NETCONF API
- RESTCONF API with YANG data model
- SSH/SSHv2
- Link Layer Discovery Protocol (LLDP) IEEE 802.1AB
- MIB II RFC 1213 MIB
- Syslog (RASlog, AuditLog)
- Management VRF
- Switched Port Analyzer (SPAN)
- Telnet
- SNMwP v1, v2C, v3
- sFlow version 5
- Out-of-band management
- RMON-1, RMON-2
- NTP
- Management Access Control Lists (ACLs)
- Role-Based Access Control (RBAC)
- Range CLI support
- Python
- DHCP Option 82 Insertion
- DHCP Relay
- Timestamping
Security
- Port-based Network Access Control 802.1X
- RADIUS
- AAA
- TACACS+
- Secure Shell (SSHv2)
- TLS 1.1, 1.2
- HTTP/HTTPS
- BPDU Drop
- Lightweight Directory Access Protocol (LDAP)
- Secure Copy Protocol
- Control Plane Policing (CPP)
- LDAP/AD
- SFTP
- Port Security
Power Supply Specifications:
| 750W AC PSU XN-ACPWR-750 W-F/R |
750W DC PSU XN-DCPWR-750 W-F/R |
|
|---|---|---|
| Dimensions | 3.15in W x 1.57in H x 8.11in D (8.0 cm x 4.0 cm x 20 .6 cm) |
3.15in W x 1.57in H x 8.11in D (8.0 cm x 4.0 cm x 20.6 cm) |
| Weight | 1.79lb (0 .81kg) | 1.85lb (0.85 kg) |
| Voltage Input Range | 100-127 VAC / 200 -240 VAC | -40 to -75 VDC |
| Line Frequency Range | 50 ? 60 HZ | N/A |
| PSU Input Socket | IEC 320 C14 | Terminal Block |
| PSU Output Cord | IEC 320 C13 | N/A |
| Operating Conditions | 0º to 55º operation | 0º to 50º operation |
Documentation:
Download the Extreme Networks ExtremeSwitching SLX 9150 Series Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
