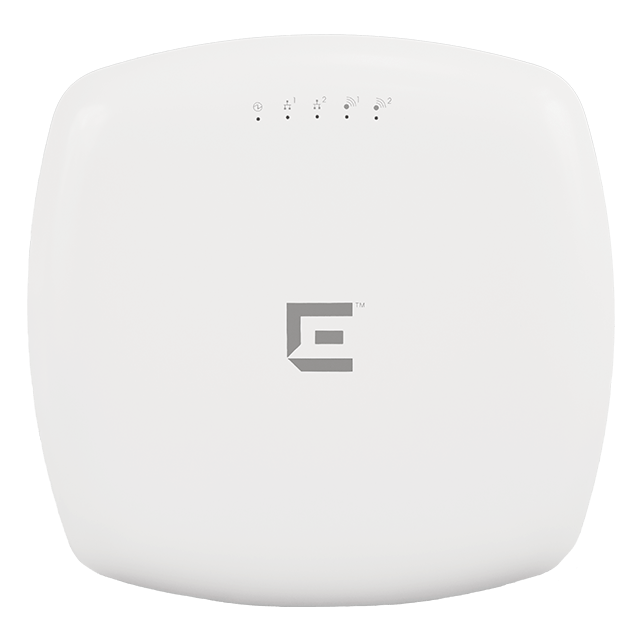

Extreme Networks ExtremeWireless AP3935i
802.11ac Wave 2 Indoor Access Point with Internal Antenna
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The AP3935 is a feature rich 802.11ac (Wave 2) and 802.11abgn indoor access point that delivers enterprise-grade performance and security. Designed to blend into the office, classroom or lecture hall, or large common spaces, the AP3935 is ideal for providing secure 802.11ac and 802.11abgn connectivity for high-density, mission critical environments such as schools, universities, hospitals, indoor arenas, and conference centers.
The AP3935i comes with an integrated eight port antenna array for ease of installation. The AP3935e requires professional installation and includes eight Reverse Polarity Sub-Miniature Version A (RPSMA) antenna connectors supporting both 2.4GHz and 5GHz band antennas. The AP3935 uses 802.3at Power over Ethernet (PoE+) for maximum performance and can operate within an 803.2af power budget with reduced performance. Ethernet ports support transparent power transition (POE Hot-swap). In case of power interruption to one of the ports the AP automatically transitions to the other port. No reboot or state interruption. An optional external power supply is available for deployments that do not support Power over Ethernet.
The AP3935 is built using the latest Wi-Fi technology, including 802.11ac Wave 2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and selfhealing meshing, security, role-based authentication, authorization, and access control. The 4x4:4 platform is capable of delivering up to 2.5 Gbps over-the-airperformance and up to 90,000 packets per second on the wire port.
The AP3935 can be installed directly on a flat surface or on most drop ceilings with the included tool-less drop ceiling bracket. Multiple antenna offerings (e.g., Omni, sector, and panel) ensure that the AP3935e deployment can be optimized to meet any unique coverage or capacity need.
ExtremeCloud Management
A single pane of glass for cloud managing both the wired and wireless components of your network. Zero touch provisioning that significantly reduces deployment.
Highlights
Business Alignment
- Support for demanding voice/video/ data applications to enhance mobile worker productivity and convenience
- Role-based grouping of users, devices, and applications to deliver priority, QoS, and security in accordance with business needs
- Seamless roaming across an entire multi-subnet campus without the need for cumbersome client software
- Integrated management, security, and QoS features reduce operating cost and ensure a consistent user experience regardless of location
Operational Efficiency
- Centralized visibility and control accelerates problem resolution, optimize network utilization, and automate management
- Adaptive architecture reduces complexity and optimizes information flow for each application
- Dynamic Radio Management when used for planning and monitoring ensures optimal spectrum coverage resulting in the best end-user quality of experience
- Flexible Client Access optimizes throughput for 802.11ac/n clients in today’s mixed ac, n, and a/b/g client environments
Flexible Managment Options
- On premise, with hardware or virtual ExtremeWireless Appliance
- ExtremeCloud Cloud-Managed Networking Platform
Features:
Delivers Enterprise-grade Performance and Security
The AP 3935 is a feature rich, dual radio 4x4 802.11ac Wave 2 indoor access point designed to blend into the office, classroom or lecture hall, or large common spaces. The AP 3935 is ideal for securing 802.11ac and 802.11abgn connectivity in high-density, mission critical environments such as schools, universities, hospitals, indoor arenas, and conference centers.
Built Using the Latest Wi-Fi Technology
The AP 3935 includes a dual radio, 802.11ac Wave 2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control.
ExtremeCloud Enabled
Enjoy zero touch provisioning and a single pane of glass for unified cloud management of Extreme switching and wireless LAN across your network.
Specifications:
General
- High Performance Enterprise Class AP
- 2 Wi-Fi Radios
- 4x4 MIMO Implementation for High-Performance 11ac & 11n Throughputs
- 4 Spatial Streams
- 3 Simultaneous Users (MU-MIMO)
- 800 Mbps Maximum Throughput 2.4GHz Radio
- 1.733 Gbps Maximum Throughput 5GHz Radio
- 2.532 Gbps Maximum Throughput Per AP
- 90,000 pps RFC2285 Wire/Wireless Forwarding Rate
- 8/16 SSIDs Supported Per Radio/Total
- 240/480 Per AP Simultaneous Users Per Radio/Total
- 30 or greater Simultaneous Voice calls (802.11b, G711, R>80)
- Semi-autonomous Mode of Operation
- Plug and Play Operation/Zero Touch Deployment
- Security and Standards: WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12, SSL
Multiple Operating Modes
- Intelligent Thin AP: Encryption, Security, QoS and RF management done on AP
- Distributed and Centralized Data Paths Within Same SSID
- Application Based Distributed and Centralized Data Paths Within Same User / Device Session
- Simultaneous RF Monitoring and Client Services
- In-Channel WIDS
- In-Channel WIPS
- Dedicated Multi-Channel WIDS (Guardian Mode)
- Dedicated Multi-Channel WIPS (Guardian mode)
- Dedicated Multi-Channel RF Spectrum Analysis and Fingerprinting
- Locates Devices and Threats via RF Triangulation
- Self-Forming and Self-Healing Meshing
- Remote Access Point
- Hardware-Based, End-to-End Data and Control Plane Encryption
- Private and Public Cloud Deployments
- SSL
Hybrid Operation
- Security Scanning and Serve Clients On Same Radio
- Security Scanning and Spectrum Analysis On Same Radio
- Spectrum Analysis and Serve Clients On Same Radio
- Multi-Channel Dedicated Security Scanning and Spectrum Analysis
Radio Characteristics - Max Conductive Power
- Radio 1 (5GHz): 29 dBm
- Radio 2 (2.4GHz): 27 dBm
Max Total Conducted Power (Integrated Antenna)
- Radio 1 (5GHz): 5 dBi (AP3935i)
- Radio 2 (2.4GHz): 3 dBi (AP3935i)
Adaptive Radio Management
- Dynamic Channel Control: 802.11d (ETSI), 802.11h: DFS & TPC support (ETSI)
- Efficient Use of the Spectrum with A Multi-Channel Architecture
- Automatic Transmit Power and Channel Control
- Self-Healing with Coverage Gap Detection
- Band Steering with Multiple Steering Modes
- Spectrum Load Balancing of Clients
- Airtime Fairness
- Performance Protection In Congested RF Environments
- Fast Transition Roaming (802.11k)
- Mitigates Co-Channel Interference with Coordinated Access
- Mitigates Adjacent Channel Interference with Optimized Receive Sensitivity
- Efficient Reuse of Channels At Shorter Intervals
- Mitigates Non 802.11 Interference Without Dedicated Radios
- Probe Suppression and Client Link Monitoring
- Management Frame Protection (802.11w)
- Automatic Discovery of Networks by Pre-Authenticated Devices (802.11u)
Quality of Service
- Quality of Service (WMM, 802.11e)
- Power Save (U-APSD)
- Fast Secure Roaming and Handover Between APs (802.11r)
- Pre-Authentication (Pre-Auth)
- Opportunistic Key Caching (OKC)
- Bonjour/LLMNR/UPNP Identification, Containment and Control
- Supports Voice, Video, and Data Using the Same SSID
- Prioritizes Voice Over Data for Both Tagged and Untagged Traffic
- Rate Limiting (Rule and User-Based)
- Rule and Role Based Qos Processing
Multicast Rate Control
- Multicast to Unicast Conversion
- Adaptable Rate Multicast
- Power Save Mode Optimization for Multicast
Wireless Services
- Media Access Protocol
- CSMA/CA with ACK
- Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: Performance Table, check on datasheet
- 802.11ac: Performance Table, check on datasheet
- Receiver Sensitivity 802.11a:
- -92DdBm @ 6Mbps
- -77DdBm @ 54Mbps
- 802.11g:
- -91DdBm @ 6Mbps
- -78DdBm @ 54Mbps
- 802.11n: See 802.11n Receiver Sensitivity Table below, check on datasheet
- 802.11ac: See 802.11ac Receiver Sensitivity Table below, check on datasheet
- Frequency Bands
- 802.11 ac/a/n:
- 5.15 to 5.25 GHz (FCC/IC/ETSI)
- 5.25 to 5.35 GHz (FCC/IC/ETSI)*
- 5.47 to 5.725 GHz (FCC/IC/ETSI)*
- 5.725 to 5.850 GHz (FCC/IC)
- 802.11b/g/n:
- 2.400 to 2.4720 GHz (FCC/IC)
- 2.400 to 2.4835 GHz (ETSI)
- *FCC/IC DFS planned after release
- 802.11 ac/a/n:
- Wireless Modulation
- 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM
- 802.11ac Packet Aggregation: A-MPDU, A-MSDU
- 802.11ac Very HighThroughput (VHT): VHT20/40/80
- 802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection
- 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU
- 802.11n Advanced Features: LDPC, STBC and TxBF
- 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
- 802.11g: DSSS and OFDM
- 802.11b: DSSS
Interfaces
- 2x 10/100/1000 Base T Ethernet autosensing link
Mounting
- Flat Wall Mounting (Included)
Environmental
- Protection: IP67 / NEMA6
- Operating:
- Temperature -30° C to +60° C (-22° F to + 158° F)
- Humidity 0%-95% (noncondensing)
- Storage Temperature: -40° C to +70° C (-58° F to +158° F)
- Transportation Temperature: -40° C to +70° C (-58° F to +158° F)
Wireless and EMC
- Compliance
- FCC CFR 47 Part 15, Class B
- ICES-003 Class B
- FCC Subpart C 15.247
- FCC Subpart E 15.407
- RSS-210
- EN 301 893
- EN 300 328
- EN 301 489 1 & 17
- EN 50385
- EN 55032 (CISPR 32)
- EN 60601-1-2
- AS/NZS4268 + CISPR32
- Safety
- IEC 60950-1
- IEC60950-22
- EN 60950-1
- UL 60950-1
- UL 60950-22
- CSA 22.2 No.60950-1-03
- CSA 2.2 No. 60950-22
- AS/NZS 60950.1
* Actual available power would vary based on local regulatory requirement and actual channels used for operation
Radiation Patterns:
3935i Antenna Radiation Patterns 2.4 GHz
3935i Antenna Radiation Patterns 5.0 GHz
Documentation:
Download the Extreme Networks ExtremeWireless AP3935i/e Datasheet (PDF).
