Extreme Networks WiNG AP 8533
802.11ac Wave 2 Access Point

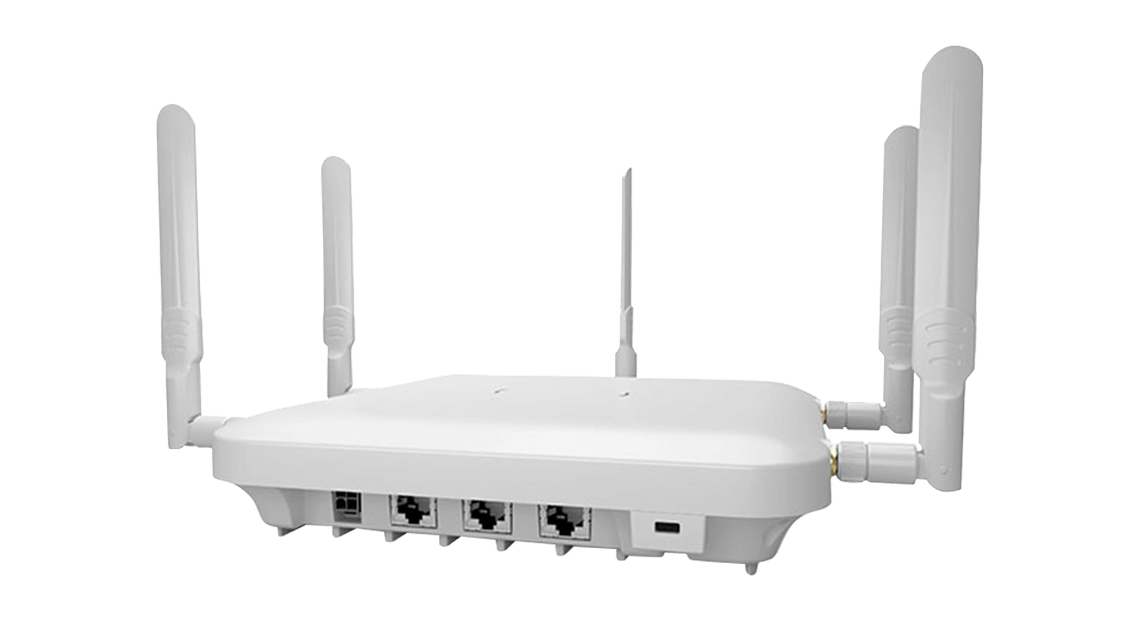

Extreme Networks WiNG AP 8533


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Imagine what your business could do with a wireless network up to eight times wider and faster. Now picture having a WLAN that pushes contextual offers to customers, provides strategic-shaping analytics, and automatically wards off interference and security risks. As if that isn’t enough, the unmatched benefits of the ExtremeWireless WiNG AP 8533 don't stop there. With built-in PoE Out (Power over Ethernet), it connects with any third-party Internet of Things network. Connect IP video cameras to count customers and reduce shrinkages; add wireless temperature sensors and more. All this can be achieved without the cost and complexity of competitor alternatives, which require multiple access points, cables, and Ethernet switch ports.


High-Density Network

Our true 802.11ac Wave 2 access point, along with the high-density optimization in ExtremeWireless WiNG 5, maximizes the value of MUMIMO. The AP 8533 supports hundreds of wireless clients and concurrent transmissions critical for any enterprise.


Easy IoT Adoption

The ExtremeWireless WiNG AP 8533 seamlessly integrates IoT devices via the secondary Gigabit Ethernet port, providing full 802.3af power and IP connectivity. For advanced management of your IoT network, the AP 8533 can treat each port as a Layer 2 or Layer 3 interface.


Unmatched Performance

Using the Integrated Deep Packet Inspection (DPI) engine, along with the ExtremeWireless Platform, the AP 8533 tirelessly optimizes the network. From RF errors to key performance indicators, the AP 8533 collects data to measure, monitor, and secure application performance.

Scalability From 1 to Cloud

With a modern, WiNG 5 distributed operating system, the AP 8533 offers four deployment modes to meet any requirement: stand-alone AP, virtual controller mode for creating networks of up to 64 access points, NOC controllers scaling to 25,000 access points.


Triple Sensor Technology

Access more possibilities with the AP 8533. The AP 8533 has integrated three powerful sensors that optimize security, customer engagement, and network performance.




Expert Support

Reduce risk and lower your capital investment and operational costs with our support services. From planning to implementation to post-deployment, our experts will ensure every phase of your WLAN lifecycle is working at its peak, so you can too.


Features:


802.11ac Access Point with Eight Times the Capacity and Triple the Sensors

High-Density Network

Our 802.11ac Wave 2 access point, along with the high-density optimization in ExtremeMobility, maximizes the value of MU-MIMO. The AP 8533 supports hundreds of wireless clients and concurrent transmissions critical for any enterprise. The WiNG AP 8533 seamlessly integrates IoT devices via the secondary Gigabit Ethernet port, providing full 802.3af power and IP connectivity

IoT

Triple sensor technology

Expanded Capabilities with Extreme's Triple Sensor Technology

The WiNG AP 8533 has integrated three powerful sensors that optimize security, customer engagement, and network performance.


Unmatched Performance

Using the Integrated Deep Packet Inspection (DPI) engine, along with the ExtremeMobility Platform, the AP 8533 tirelessly optimizes the network. From RF errors to key performance indicators, the WiNG AP 8533 collects data to measure, monitor, and secure application performance.

Analytics


Specifications:


Extreme Networks WiNG 8533 Access Point

802.11ac Capabilities

•   Quad radios (3 Wi-Fi radios + one Bluetooth® radio)

•   Band-unlocked Network Sensor for WIPS and Location Service

•  4x4 MU-MIMO with 4 Spatial Streams

•   Auto-Selecting MU-MIMO supports 1 and 2 stream wireless clients

•   20, 40, and 80 MHz Channels

•   Packet Aggregation (AMSDU, AMPDU) and RIFS

•   MIMO Power Save (Static and Dynamic)

•   Advanced forward error correction coding: STBC, LDPC

•   802.11ac transmit beamforming

•   Maximal Ratio Combining (MRC)

•   NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio

•   Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio

Physical Characteristics

Dimensions

8.25” x 8.25” x 1.8”

210mm x 210mm x 46mm

Weight

3.0lbs, 1.27kg

Mounting

Included mounting bracket for flush mount or T-bar mount

LEDs

System status: Green, Amber, Blue, White

LAN Ethernet

2x IEEE 802.3 Gigabit Ethernet auto-sensing



Antenna Connectors

AP-8533-68SB30: internal antenna AP-8533-68SB3E: internal antenna

AP-8533-68SB40; five RP SMA connectors; one RP-SMA dedicated for BT/BLE radio

Console

RJ45

User Environment

Operating Temperature

32° F to 140° F/0° C to 50° C

Storage Temperature

40° F to 158° F/-40° C to 70° C

Operating Humidity

95% RH non-condensing

Electrostatic Discharge

Internal AP-8533-68SB30/3E: ESD to ±12KV air and ±8KV contact

Antenna Information



Internal Antenna

Radio 1 (2.4GHz) : 5.2dBi Radio 2 (5.2GHz): 6.8 dBi

Radio 3 (2.4GHz/5.2GHz): 4.9/5.9 dBi

Radio 4 (2.4GHz): Integrated antenna with 7.7dBi



External Antenna

Radio 1, 2 : up to 10dBi

Radio 3 (2.4GHz/5.2GHz) integrated antenna: 4.9/5.9 dBi

Radio 4 (2.4GHz): dual-mode antenna option. Integrated antenna with 7.7dBi or optional external antenna up to 11dBi.

Product Features

DC Power Specifications



Operating Power

Max Power Consumption: 24W Typical Power Consumption: 12W

Maximum Radiated Transmit Power (RMS)*







Internal Antenna

Radio 1, 2.4GHz band: 32.2dBm (1670 mW) Radio 2, 5.2GHz band: 32.8dBm (1915 mW) Radio  3,  2.4GHz/5.2GHz  dual-band sensor:

•   2.4GHz band: 25.9 dBm (389 mW)

•   5.2GHz band: 22.9 dBm (195 mW)

Radio 4: 13.7 dBm (23.4mW) with integrated antenna







External Antenna

Radio 1, 2.4GHz band: 34dBm (2524 mW) Radio 2, 5.2GHz band: 33dBm (2005 mW) Radio 3, 2.4GHz/5.2GHz dual-band sensor:

•   2.4GHz band: 25.9 dBm (389 mW)

•   5.2GHz band: 22.9 dBm (195 mW)

Radio 4: 13.7 dBm (23.4mW) with integrated antenna or up to 17 dBm (50 mW) with 11dBi external antenna

Accessories

Power

PWR-BGA48V45W0WW PD-9001GR-ENT

Mounting

KT-135628-01 BRKT-000147A-01

Radio Specifications

Wireless Medium

DSSS, OFDM, MIMO, MU-MIMO







Network Standards

IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3

802.11b/g: 1-54 Mbps

802.11a: 6-54 Mbps

802.11n: MCS 0-31 up to 600 Mbps

802.11ac: MCS 0-9 up to 1.733 Gbps; In Nitro mode, radio 1 and 2 data rates can go up to 1000Mbps and 2166Mbps, respectively.



Operating Channels

2.4 GHz band: channel 1-13 5.2 GHz band: channel 36-165 2412 to 2472 MHz, 5180 to 5850 MHz

Channel availability depends on local regulatory restrictions





Antenna Configuration

Radio 1: 2.4GHz: 4x4 with 4SS Radio 2: 5GHz: 4x4 with 4SS

Radio 3: Dual-Band Sensor: 1x3 with 3SS  Radio 4: Bluetooth radio with selectable single integrated antenna or external antenna

Conducted Radio Power

Up to 21dBm, depending on local regulatory restrictions, in 1dB increments

Operating Frequencies

2412 to 2472 MHz, 5180 to 5850 MHz

Networking

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP



Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple- Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot) with captive portal, IPSec,

and RADIUS Server

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS. Role-based QoS with rule-based packet marking.

Certificates

Wi-Fi Alliance® (WFA) certified 802.11 a/b/g/n/ac, Passpoint 2.0

Regulatory

Product Safety Certifications

UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS

Radio Approvals

FCC (USA), EU, TELEC

Approvals and Certifications

UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS. FCC (USA), EU,

TELEC, Medical EMC standard: EN/IEC 60601-1-2


Documentation:

Download the Extreme Networks WiNG AP 8533 Datasheet (PDF).
