ExtremeRouting SD-WAN XR200P Branch Router
Cloud-Managed Small-to-Mid-Enterprise SD-WAN Router with Gigabit PoE+ Ethernet for branches and remote sites.

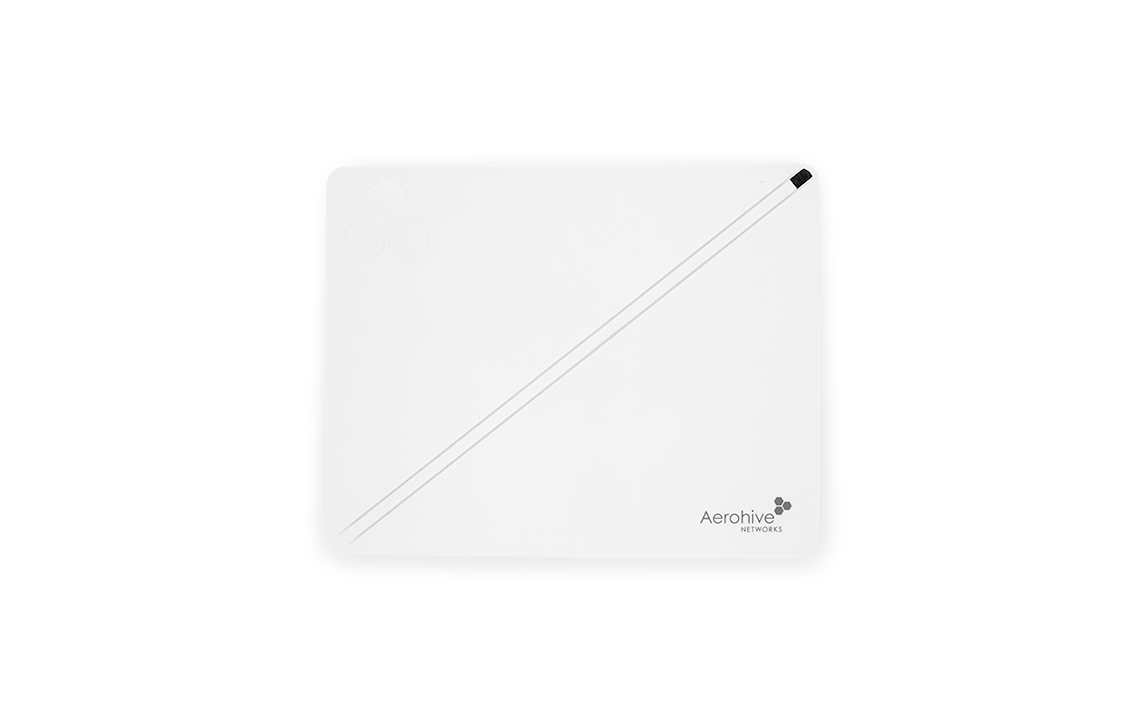

Extreme Networks XR200P


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

 Lower TCO

Lower TCO

ExtremeCloud Networking with virtualized VPN services dramatically reduce cost of investment and operations. Cloud management dramatically simplifies network administration, while multi-path optimization and application-based flow control help to reduce or completely remove costly MPLS links by improving performance across inexpensive broadband links.

 full stack management

Full Stack Management

The XR200P, managed by ExtremeCloud IQ, provides unified policy management and enforcement with connected access points and switches. Single pane of glass cloud management for wired and wireless LAN and WAN makes it easier to deploy, monitor, and support highly distributed networks.


Optimized Connectivity

Optimized Connectivity

User and application-based traffic flow control enables organizations to identify, prioritize, and restrict traffic flows based on application or user context or bandwidth requirements. Direct missioncritical traffic through primary business-grade WAN connections, while less important traffic flows may be sent via secondary LTE or consumer-grade connections.

Simplified Rollouts

Simplified Rollouts

With auto discovery and provisioning, the XR200P can be remotely deployed, phoning home to discover its management server and pulling down complex configurations in minutes. Thousands of XR200P’s can be rolled out, configured, and updated from a single location in no time.


Secure

Secure Branch Access

Contextualized profiling, cloud security proxy, and a flow-based stateful firewall, enable IT to easily assign forwarding policies by application, user group, client OS, client Mac address, client location, and schedules. This allows corporate headquarters’ network usage and security policies to be consistency enforced on every device, wired or wireless, regardless of their location.

LTE Backhauls

LTE Backhaul

USB connectivity supports LTE modems for greater backhaul flexibility. Load balance and enable redundancy across Ethernet and LTE, assign user and application groups to specific uplinks, or use the LTE connection alone for temporary locations without fixed Internet connections.

Features:


Reduce operational costs and Inrease Performance

Dynamic path selection distributes packets across multiple connections in real-time, based on current link metrics including RTT, jitter and link utilization. More than simply providing link redundancy, it ensures traffic is passed over the most optimal path at all times. This provides a platform for dramatic cost savings where dedicated MPLS links can be swapped in favour more affordable broadband lines.

Reduce Costs

Lock Icon

Contextualized Security and Performance Optimization

IT can easily assign forwarding policies by application, user group, client OS, client Mac address, client location, and schedules. This allows corporate headquarters’ network usage and security policies to be consistency enforced on every device, wired or wireless, regardless of their location.


Cloud-Managed Assurance, Intelligence, and Simplicity

Managed by ExtremeCloud IQ, this device can be quickly and easily provisioned with advanced configurations, deliver granular user, device, and application reporting, and be supported from any location in minutes.

Reduce Costs

Specifications:


XR200P Specifications
Mounting
  • Desktop
  • Wall Mounts
Interfaces
  • IEEE 802.3ab(1000BASE-T), 802.3u(100BASE-TX), 802.3(10BASE-T) compliant
  • 5x 1GE ports
  • 2x PoE ports with total of 30.8W power budget, supporting 2 IEEE 802.3af standards-based PoE ports or other combinations
  • 1x USB2.0 Port
  • 1 Reset button to reset (on press) and load factory default settings (when pressed for more than 5 seconds)
  • 1 RJ45 console port
Physical
  • 7.75” W x 1.13” H x 6.1” D
  • Weight: 14 oz (400g)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 5% to 95% RH (non-condensing)
MTBF (based on Telecordia SR-332)
  • 392,000 Hours at 25ºC
  • Power DC 48V/1.25A, 60W
    Physical Security 1 Kensington Lock Connector
    Other Features
    • Full Trusted Computing Group (TCG) Trusted Platform Module (TPM)
    • Dedicated Hardware-accelerated SHA-1 Engine

    Documentation:

    Download the Extreme Networks XR200P Datasheet (PDF).
