Extreme Networks ExtremeSwitching X620 16-port Switch
10Gb Edge Ethernet Switch


Extreme Networks ExtremeSwitching X620 16-port Switch

Extreme Networks Products
Extreme Networks ExtremeSwitching X620 Series

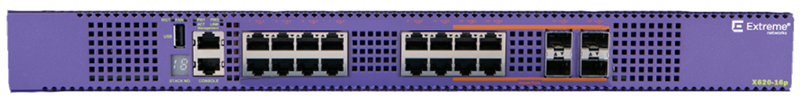

USA: FREE Ground ShippingExtremeSwitching X620-16t 16-port Switch
12 100Mb/1Gb/10GBASE-T ports with EEE, 4 100Mb/1Gb/10GBASE-T with EEE shared with 4 1Gb/10GBASE-X SFP+ ports, 2 unpopulated power supply slots, 1 unpopulated Fan Module slot, ExtremeXOS Edge license
#17402
List Price: $8,422.00
Our Price: $5,823.91

Click here to jump to more pricing!

Overview:

The ExtremeSwitching X620 product family is a compact 10Gb Ethernet switch for 10Gb edge applications in a small 1RU form factor. ExtremeSwitching X620 supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing. The X620 simplifies network operation with the ExtremeXOS modular operating system, which is used among all ExtremeSwitching networking products. The high availability ExtremeXOS operating system provides simplicity and ease of operation through the use of one OS everywhere in the network.

Highlights

Family of 10Gb Edge Switches with Advanced Enterprise Capabilities

  • Full featured ExtremeXOS® operating system
  • SummitStack-V flexible stacking

Ease of Use - Flexible Management Options

  • Integrated web-based management application
  • Enterprise Extreme Control Center management
  • Advanced command line interface
  • ExtremeCloud Management option (X620-16x)

Flexible System Configurations

  • 10GBASE-T and fiber connectivity
  • Wide range of port speeds from 100Mb to 10Gb
  • 2.5Gb and 5Gb Ethernet options
  • High power 60W PoE++ options
  • Hot swappable modular systems and compact small form versions
  • Redundancy options for high availability
  • All systems provide non-blocking, wire-speed performance

Advanced Modular 16 Ports 10Gb Ethernet Switches - 10GBASE-T and SFP+

  • Hot-swappable modular power and fans
  • AC and DC power supply options
  • Front to Back or Back to Front air flow options

Compact 10 Port 10Gb Ethernet Switches - 10GBASE-T and SFP+

  • Integrated power supplies and fans
  • External redundant power supply (RPS) options

Features:


Ideal for High-Performance Workgroups

Ideal for High-Performance Workgroups

With its small 1RU form factor and 10Gb connectivity, the X620 is ideal for high-performance workgroups requiring high-speed connectivity to servers, storage, and clients.


Advanced Enterprise Capabilities

Advanced Enterprise Capabilities

The ExtremeSwitching X620 supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing.


EXOS

Simplicity and ease of operation

The X620 simplifies network operation with the ExtremeXOS modular operating system, which is used among ExtremeSwitching networking products. The high availability ExtremeXOS operating system provides simplicity and ease of operation.


Specifications:

  XX620-8t-2x X620-10x X620–16x X620–16t X620-16p
Ports
  • 8 x 100Mb/1Gb/10GBASE-T with EEE (RJ45)
  • 2 x 100Mb/1Gb/10GBASE-X SFP+ ports
  • 1 x Serial console port RJ-45
  • 1 x 10/100/1000BASE-T out-of-band management port
  • USB 2.0 port
  • 10 x 100Mb/1Gb / 10GBASE-X SFP+ ports
  • 1 x Serial console port RJ-45
  • 1 x 10/100/1000BASE-T out-of-band management port
  • USB 2.0 port
  • 16 x 100Mb / 1Gb / 10GBASE-X SFP+ ports
  • 1 x Serial console port RJ-45
  • 1 x 10/100/1000BASE-T out-ofband management port
  • USB 2.0 port
  • 12 x 100Mb / 1Gb / 10GBASE-T ports with EEE (RJ45)
  • 4 x 100Mb/1Gb/10GBASE-T with EEE (RJ45) shared with 4 x 1Gb/10GBASE-X SFP+ (with 10GBASE-LRM support)
  • 1 x Serial console port RJ-45
  • 1 x 10/100/1000BASE-T out-ofband management port
  • USB 2.0 port
  • 12 x 100Mb / 1Gb / 2.5Gb / 5Gb / 10GBASE-T ports with EEE (RJ45)
  • 4 100Mb/1Gb/10GBASE-T PoE+ and EEE (RJ45) shared with 4 1Gb/10GBASE-X SFP+ ports with 10GBASE-LRM support
  • 16 Ports Power over Ethernet
    • 8 ports 802.3bt Type 3 PSE 60W
    • PoE++ (ports 5-12)
    • 8 ports 802.3at PoE+ Type 2 PSE
  • 30W (ports 1-4, 13-16)
  • 1 x Serial console port RJ-45
  • 1 x 10/100/1000BASE-T out-of-band management port
  • USB 2.0 port
Power Supplies
  • Integrated 100W AC PSU
  • RPS connector for external redundant PSU
  • Side to side airflow
  • Integrated 100W AC PSU
  • RPS connector for external redundant PSU
  • Side to side airflow
  • Modular 300W power supply (up to two PSUs)
  • AC and DC power options
  • Mixed AC and DC configuration
  • Front-Back or Back-Front airflow options
  • Modular 300W power supply (up to two PSUs)
  • AC and DC power options
  • Mixed AC and DC configuration
  • Front-Back or Back-Front airflow options
  • Modular 750W AC power supply (up to two PSUs)
  • 380W PoE power per PSU (720W total PoE power per system)
  • Front-Back airflow
Dimensions 12in W / 10.3in D / 1.7in H (30.48cm / 26.2cm / 4.3cm) 12in W / 10.3in D / 1.7in H (30.48cm / 26.2cm / 4.3cm) 17in W / 17.4in D / 1.7in H (43.1cm / 44.1cm / 4.4cm) 17in W / 17.4in D / 1.7in H (43.1cm / 44.1cm / 4.4cm) 17in W / 17.4in D / 1.7in H (43.1cm / 44.1cm / 4.4cm)
Weight 6.37 lbs / 2.89 Kg 6.04 lbs / 2.74 Kg 11.1 lbs / 5.0 Kg (base system) 12.0 lbs / 5.5 Kg (base system) 12.0 lbs / 5.5 Kg (base system)
Performance Line Rate 200Gbps / 148.8Mpps Switching Capacity Line rate 200Gbps / 148.8Mpps Switching Capacity Line rate 320Gbps / 238Mpps Switching Capacity Line Rate 320Gbps / 238Mpps Switching Capacity Line rate 320Gbps / 238Mpps Switching Capacity
CPU Memory 1GHz CPU
1GB DDR3 ECC memory
4GB eMMC Flash memory
1GHz CPU
1GB DDR3 ECC memory
4GB eMMC Flash memory
1GHz CPU
1GB DDR3 ECC memory
4GB eMMC Flash memory
1GHz CPU
1GB DDR3 ECC memory
4GB eMMC Flash memory
1GHz CPU
1GB DDR3 ECC memory
4GB eMMC Flash memory
Packet Buffers 2MB 2MB 2MB 2MB 2MB
Operating Conditions 0 º - 50ºC operation
10 % to 95% relative humidity, non-condensing
0 - 3000 meters altitude
Shock (half sine): 98 m/ s2 (3 G), 11ms, 6 shocks
Random vibration: 3 to 500Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/hr) (Idle, no ports linked) 74 BTU/hr 60 BTU/hr AC: 111 BTU/hr
DC: 80 BTU/hr
AC: 175 BTU/hr
DC: 148 BTU/hr
No PoE: 208 BTU/hr
720W PoE: 501 BTU/hr
Minimum Power Consumption (Watts) (Idle, no ports linked) 22 W 18 W AC: 33 W
DC: 23 W
AC: 51 W
DC: 43 W
No PoE: 61 W
720W PoE: 867 W
Dissipation (BTU/hr) (fans high all ports) 177 BTU/hr 123 BTU/hr AC: 214 BTU/hr
DC: 180 BTU/hr
AC: 347 BTU/hr
DC: 326 BTU/hr
No PoE: 328 BTU/hr
720W PoE: 684 BTU/hr
Maximum Power Consumption (Watts) (fans high all ports 100% traffic) 52 W 36 W AC: 63 W
DC: 53 W
AC: 102 W
DC: 96 W
No PoE: 114 W
720W PoE: 920 W
Acoustic Specifications
Bystander Sound Pressure (Front-Back Airflow) - - 47.0 dB(A) up to 40ºC
65.7 dB(A) @ 50ºC (max)
47.2 dB(A) up to 35ºC
65.6 dB(A) @ 50ºC (max)
No PoE: 47.3 dB(A) up to 35ºC
65.6 dB(A) @ 50ºC (max)
PoE: 50.5 dB(A) up to 35ºC (50% PoE power)
67.1 dB(A) @ 50ºC (100% PoE power)
Bystander Sound Pressure (Back-Front Airflow) - - 46.9 dB(A) up to 40ºC
64.8 dB(A) @ 50ºC (max)
46.9 dB(A) up to 30ºC
65.2 dB(A) @ 50ºC (max)
-
Bystander Sound Pressure (Side-Side Airflow) 35.6 dB(A) up to 25ºC
38.8 dB(A) up to 30ºC
65.4 dB(A) @ 50ºC (max)
28.2 dB(A) up to 35ºC
66.3 dB(A) @ 50ºC (max)
- - -
Declared Sound Power (Front-Back Airflow) - - 6.1 bels up to 40°C
8.0 bels @ 50°C (max)
6.2 bels up to 35°C
8.0 bels @ 50°C (max)
No PoE: 6.2 bels up to 35ºC
8.0 bels @ 50 ºC (max)
PoE: 6.5 bels up to 35ºC (50% PoE power)
8.2 bels @ 50 ºC (100% PoE power)
Declared Sound Power (Back-Front Airflow) - - 6.1 bels up to 40°C
8.0 bels @ 50°C (max)
6.2 bels up to 30°C
8.1 bels @ 50°C (max)
-
Declared Sound Power (Side-Side Airflow) 4.8 bels up to 25ºC
5.2 bels up to 30ºC
7.9 bels @ 50ºC (max)
3.8 bels up to 35ºC
7.9 bels @ 50ºC (max)
- - -

Scaling and Performance

  • MAC Addresses: 16K
  • IPv4 LPM Entries: 480
  • IPv4 Hosts
    • with min LPM IPv4 entries: 1500
    • with max LPM IPv4 entries: 1500
  • IPv6 LPM (/64) Entries: 240 IPv6 Hosts: 1500 IP Multicast
  • Groups: 256
  • Max (S,G) entries: 1500
  • Latency:
    • SFP+: average 900ns (64 byte packet)
    • 10GBASE-T: average 2.4µsec (64 byte packet)
  • 4092 user-created VLAN/VMANs
  • 9216 Byte Max Packet Size (Jumbo Frame)
  • 128 load sharing trunks, up to 8 members per trunk
  • ACLs 2048 ingress / 512 egress
  • Ingress and egress bandwidth policing/rate limiting per flow/ACL
  • 1,024 ingress bandwidth meters, 256 egress meters
  • 8 QoS egress queues/port
  • Egress bandwidth rate shaping per egress queue and per port
  • Rate Limiting Granularity: 8 Kbps
  • All ports only full duplex at all speeds
    • Policy Capabilities
    • Policy Profiles: 63
    • Rules per Profile: Up to 440
    • Authenticated Policy Users per Switch: Up to 256
    • Authenticated Policy Users per Port: Up to 256
    • Unique Permit/Deny Rules per switch: 440
      • MAC Rules: N/A
      • IPv4 Rules: 256
      • IPv6 Rules: N/A
      • L2 Rules: 184
  • Rate Limiting: Per Class of Service
  • Data Center Bridging
    • DCBx Data Center Bridging Exchange Protocol
    • Priority Flow Control (PFC)
    • Enhanced Transmission Selection (ETS)
  • Power over Ethernet – X620-16p only
    • 802.3bt 60W 4-Pair PoE++ - Type 3 PSE (Ports 5-12)
    • 802.3at 30W PoE+ (Ports 1-4, 13-16)
  • 2.5Gb and 5Gb Ethernet - IEEE 802.3bz and NBASE-T Alliance – X620-16p only
    • 2.5GBASE-T – at least 100m with Cat5e cabling or better
    • 5GBASE-T – at least 100m with Cat6 cabling or better

Environmental Specifications

  • EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
  • EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
  • EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
  • EN/ETSI 300 753 (1997-10) - Acoustic Noise
  • ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

  • EU RoHS: 2011/65/EU
  • EU WEEE: 2012/19/EU
  • China RoHS: SJ/T 11363-2006

Packaging and Storing Specifications

  • Temp: -40° C to 70° C (-40° F to 158° F)
  • Humidity: 10% to 95% relative humidity, non-condensing Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
  • Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500Hz at 0.2 G
  • Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200Hz
  • Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

  • North American ITE
    • UL 60950-12nd edition, Listed Device (U.S.)
    • CSA 22.2 No. 60950-12nd edition (Canada)
    • Complies with FCC 21CFR 1040.10 (U.S. Laser Safet y)
    • CDRH Letter of Approval (US FDA Approval)
  • European ITE
    • EN 60950-1:2007 2nd Ed.
    • EN 60825-1+A2:2001 (Lasers Safety)
    • 2006/95/EC Low Voltage Directive
  • International ITE
    • CB Report & Certificate per IEC 60950-1 2nd Ed. + National Differences
    • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

  • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • International EMC Certifications
    • CISPR 22:2006 Ed 5.2, Class A (International Emissions)
    • CISPR 24:A2:2003 Class A (International Immunity)
    • IEC 61000-4-2:2008/EN 61000-4-2:2009 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
    • IEC 61000-4-3:2008/EN 61000-4-3:2006+A1:2008 Radiated Immunity 10V/m, Criteria A
    • EC 61000-4-4:2004 am1 ed.2./EN 61000-4-4:2004/A1:2010 Transient Burst, 1 kV, Criteria A
    • IEC 61000-4-5:2005 /EN 61000-4-5:2006 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
    • IEC 61000-4-6:2008/EN 61000-4-6:2009 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A
    • IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Country Specific

  • VCCI Class A (Japan Emissions)
  • ACMA RCM (Australia Emissions)
  • CCC Mark
  • KCC Mark, EMC Approval (Korea)

Telecom Standards

  • CE 2.0 Compliant

IEEE 802.3 Media Access Standards

  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ae 10GBASE-X
  • IEEE 802.3an 10GBASE-T
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3bz 2.5GBASE-T
  • IEEE 802.3bz 5GBASE-T
  • IEEE 802.3u, 100Base-FX
  • IEEE 802.3at 30W PoE+
  • IEEE 802.3bt 4-Pair 60W PoE++


Power Supply Specifications:


  300W AC PSU 10930A / 10943 X620-16x X620-16t 300W DC PSU 10933 / 10944 X620-16x X620-16t 750W AC PoE PSU 10931 X620-16p Fixed Internal PSU X620-10x / X620-8t-2x
Dimensions 3.09in W / 10.9in D / 1.06in H
(7.8cm / 27.7cm / 2.7cm)
3.09in W / 10.9in D / 1.06in H
(7.8cm / 27.7cm / 2.7cm)
3.15in W / 9.5in D / 1.57in H
(8.0cm / 24.1cm / 4.0cm)
Internal
Weight 2.3 lbs / 1 kg 2.35 lbs / 1.1 kg 2.25 lbs / 1 kg Internal
Voltage Input Range 100 - 240 VAC +/- 10 % +24/-48 VDC -15% +20% 100 - 240 VAC +/- 10 % 100 - 240 VAC +/- 10 %
Line Frequency Range 50 - 60 Hz +/- 5% N/A 50 - 60 Hz +/- 5% 50 - 60 Hz +/- 5%
PSU Input Socket IEC 320 C14 Terminal Block IEC 320 C14 IEC 320 C14
Power Cord Input Plug IEC 320 C13 N/A IEC 320 C13 IEC 320 C13
Operating Conditions 0º - 50ºC Operation 0º - 45ºC Operation 0º - 50ºC Operation 0º - 50ºC Operation

Pricing Notes:

Extreme Networks Products
Extreme Networks ExtremeSwitching X620 Series
USA: FREE Ground ShippingExtremeSwitching X620-16t 16-port Switch
12 100Mb/1Gb/10GBASE-T ports with EEE, 4 100Mb/1Gb/10GBASE-T with EEE shared with 4 1Gb/10GBASE-X SFP+ ports, 2 unpopulated power supply slots, 1 unpopulated Fan Module slot, ExtremeXOS Edge license
#17402
List Price: $8,422.00
Our Price: $5,823.91
Accessories
USA: FREE Ground ShippingFan module for X620, Front to Back airflow
#10945
List Price: $360.00
Our Price: $248.95
USA: FREE Ground ShippingFan module for X620, Back to Front airflow
#10946
List Price: $360.00
Our Price: $248.95
USA: FREE Ground Shipping300W AC power supply for X620-16x and X620-16t, Front to Back airflow
#10930A
List Price: $604.00
Our Price: $417.67
USA: FREE Ground Shipping300W AC power supply for X620-16x and X620-16t, Back to Front airflow
#10943
List Price: $604.00
Our Price: $417.67
USA: FREE Ground Shipping300W DC power supply for X620-16x and X620-16t, Front to Back airflow
#10933
List Price: $971.00
Our Price: $671.45
USA: FREE Ground Shipping300W DC power supply for X620-16x and X620-16t, Back to Front airflow
#10944
List Price: $971.00
Our Price: $671.45
Firmware Licenses
ExtremeXOS Advanced Edge License for X620 Switches
#17431
List Price: $1,031.00
Our Price: $714.69
Extreme XOS Multimedia (AVB) Feature Pack for X620 Switches
#17433
List Price: $513.00
Our Price: $355.61
ExtremeXOS OpenFlow Feature Pack for X620 Switches
#17434
List Price: $928.00
Our Price: $643.29
