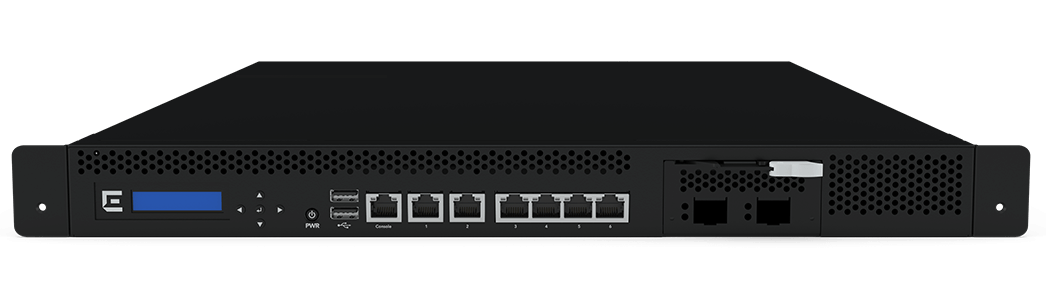

Extreme Networks WiNG NX 7500 Platform
Next-generation wireless services for midsize and campus environments


Extreme Networks  WiNG NX 7500


Extreme Networks Products
Wireless Controllers
USA: FREE Ground ShippingWiNG NX 7510 Appliance
NX 7510 Integrated Services Controller with a single hard drive and single AC power supply
#NX-7510-100R0-WR
Contact us for Pricing!
USA: FREE Ground ShippingWiNG NX 7520 Appliance
NX 7520 Integrated Services Controller with a single hard drive and dual DC power supplies
#NX-7520-100R0-WR
Contact us for Pricing!
USA: FREE Ground ShippingWiNG NX 7530 Appliance
64GB solid-state drive for firmware images and critical data dual 500GB hard drives RAID-1
#NX-7530-100R0-WR
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Advanced Performance and One Point of Control for your Entire Wireless LAN (WLAN)

The NX 7500 brings the next generation in WLAN speed, security, reliability, and flexibility to the midsize enterprise, providing comprehensive management and control of up to 2,048 network elements through a single pane of glass. With the NX 7500, all network infrastructure is empowered with the intelligence to make the best routing decisions, so you get maximum speed and throughput — the congestion and latency associated with routing traffic through a centralized controller is eliminated.


Maximum Flexibility Delivers Superior Cost-Efficiency and Investment Protection

With the modular design of the NX 7500, you can purchase the features you need today and add what you need tomorrow. As the number of users and application bandwidth requirements increase, upgrade to 10 Gigabit (10G) Ethernet, right in your facility. The fully-programmable multi-core network processing engine makes it easy to add features that require in-line data processing, without the typical limitations of hardware ASIC-based solutions. And the powerful control processor for management is accompanied by a high-throughput cryptographic engine for extreme security.


WiNG 5 for Superior WLAN Performance, Scalability, Reliability, and Quality of Service

The ExtremeWireless WiNG 5 architecture distributes intelligence to every point in your network — including the NX Integrated Services Platform portfolio and their connected access points. Now, the platforms as well as access points are all capable of determining the best route for traffic, maintaining Quality of Service (QoS) and security policies. The result? Bottlenecks in traditional hub-and-spoke networks are eliminated. The NX 7510 supports 1:1 failover for high availability, with no additional licensing fees for the redundant system.

Features:


Firewall

The Next Generation in WLAN Speed, Security, Reliability, and Flexibility to the Midsize Enterprise

The WiNG NX 7500 provides comprehensive management and control of up to 2,048 network elements through a single pane of glass. With the NX 7500, all network infrastructure is empowered with the intelligence to make the best routing decisions, so you get maximum speed and throughput — the congestion and latency associated with routing traffic through a centralized controller is eliminated.


Strcuture

Maximum Flexibility Delivers Superior Cost-Efficiency and Investment Protection

With the modular design of the WiNG NX 7500, you can purchase the features you need today and add what you need tomorrow. As the number of users and application bandwidth requirements increase, upgrade to 10 Gigabit (10G) Ethernet, right in your facility.


Simple

Powered by the Advanced WiNG Operating System

WiNG provides the advanced brainpower required to create the “fully network-aware” WLAN, allowing every piece of infrastructure in your wireless network to work together to route every transmission as efficiently as possible


Specifications:


Physical Characteristics



Dimensions

1U, rack-mountable

17.2 in W x 1.76 in H x 21.28 in D 430 mm W x 42 mm H x 532 mm D



Weight (With 1 PS)

NX 7510 – 41.8 lb./19  kg

NX 7520 – 44 lb./20 kg

NX 7530 – 46.2 lb./21 kg

Memory

16GB RAM



Storage

64GB solid-state drive for firmware images and critical data

Single 500GB hard-drive (NX 7510, NX 7520) RAID-1 with dual 500GB hard drives (NX 7530)

Acoustic Noise

40 dB(A)

Product SKUs



NX-7510-100R0-WR



NX 7510 Integrated Services Controller with a single hard drive and single AC power supply

(second power supply AC/DC can be added – see accessories)



NX-7520-100R0-WR



NX 7520 Integrated Services Controller with a single hard drive and dual DC power supplies



NX-7530-100R0-WR



16GB RAM

User Environment

Operating Temp

32°F to 104°F/0°C to 40°C

Storage Temp

-4°F to 167°F/-20°C to 75°C

Operating Humidity

5% to 85% at 104° F/40° C

Storage Humidity

5-95%


Documentation:

Download the Extreme Networks WiNG NX 7500 Controller Datasheet (PDF).
