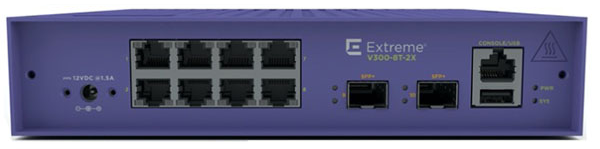

Extreme Networks ExtremeSwitching V300-8T-2X Edge Switch
Simplified Edge Switch Operation Powered by ExtremeXOS Aggregation Switch


Extreme Networks ExtremeSwitching V300-8T-2X Edge Switch

Extreme Networks Products
Extreme Networks ExtremeSwitching V300 Series
USA: FREE Ground ShippingExtremeSwitching V300-8T-2X 8-port Edge Switch
8 x 10/100/1000BASE-T PoE+ half/full duplex ports, 2 x SFP+ uplinks, includes 40W PSU
#V300-8T-2X
List Price: $895.00
Our Price: $618.90

Click here to jump to more pricing!

Overview:

The ExtremeSwitching V300 Series are compact, cost-effective edge switches managed by Extreme Networks ExtremeXOS (EXOS) software, a highly resilient OS providing continuous uptime, advanced services and operational efficiency.

As the edge component of Extreme’s Extended Edge Switching solution, the V300 Series provides access switch capabilities, while being controlled by a remote EXOS aggregation switch. This allows the V300 Series to seamlessly extend feature-rich services of the EXOS aggregation switch to the network edge.

Available in a variety of models, the V300 Series includes versions for indoor use as well as hardened models for outdoor or environmentally challenging locations.

Highlights

  • Compact cost-effective edge switches centrally managed by ExtremeXOS software
  • Edge component of Extreme’s Extended Edge Switching solution
  • Seamlessly runs advanced services residing on ExtremeXOS aggregation switch
  • Plug and play edge installation – just connect and start-up
  • Multiple models providing 8 x 1GbE access ports (PoE and non-PoE) and 2 x 10Gb SFP+
  • Environmentally hardened options that operate from -40C to +70C
  • System model that draws power from upstream switch – eliminating need for separate PSU
  • Resilient operations through support of Extended Edge Ring topology

Features:

Centralized Management and Control

The V300 Series control and data plane technology based on the IEEE 802.1BR specification allows for centralized management and intelligent service delivery from a central EXOS aggregation switch. This enables the EXOS aggregation switch to act as a single point of configuration and control for V300 Series devices which can reduce complexity and operational cost (see Figure 1).

Figure 1: The V300 is the edge component of Extreme’s Extended Edge Switching solution
Figure 1: The V300 is the edge component of Extreme’s Extended Edge Switching solution

Plug and Play Installation

V300 Series units can be quickly installed in a plug and play manner. Once the unit is physically connected to the ExtremeXOS aggregation switch, the V300 automatically identifies itself and downloads its configuration. There’s no need to connect a local console for set-up of the V300 device or its ports.

Diverse Models for Different Use Cases

The V300 Series is available in 5 model variants to address a range of use cases and deployment scenarios. Models include:

  • V300-8T-2X: 8 x 10/100/1000-BaseT with 2 x 1/10Gb SFP+ uplinks
  • V300-8P-2X: 8 x 10/100/1000BaseT with 30W PoE and 2 x 1/10Gb SFP+ uplinks
  • V300HT-8T-2X: 8 x 10/100/1000-BaseT with 2 x 1/10Gb SFP+ uplinks (environmentally hardened unit designed to operate at -40C to +70C)
  • V300HT-8P-2X: 8 x 10/100/1000BaseT with 30W PoE and 2 x 1/10Gb SFP+ uplinks (environmentally hardened unit designed to operate at -40C to +70C)
  • V300-8P-2T-W: 8 x 10/100/1000BaseT 30W PoE access with 2 x 1Gb Type 4 30/60/90W uplinks

1G and/or 10G uplink ports on the faceplate of each V300 unit can be provisioned either as uplink, cascade or ring ports, giving administrators the option to create redundant links or downstream cascade/ring ports to other V300 units.

Environmentally Hardened Units

The V300 Series also includes V300HT models that can operate over extended temperature ranges from -40C to 70C. The V300HT models also meet enhanced environmental, safety, and regulatory compliance requirements for environmentally hardened switches typically used in smart cities, industry, and transportation.

Power over Ethernet Support

V300 Series switches support both IEEE 802.3at PoE+ and IEEE 802.3af PoE to enable connection of standards compliant PoE devices today. The V300-8P-2X model provides up to 180W of PoE power across its 8 access ports and the V300HT-8P-2X model up to 160W of PoE power when operating at 70C.

PoE Power from Upstream EXOS Aggregation Switch

In addition to standard PoE models, the V300 Series includes a PoE pass-through model—the V300-8P2T-W. This model draws all its required power from an upstream EXOS aggregation switch over either of its two Ethernet IEEE 802.3bt Type 4 (30W/60W/90W) links. This eliminates the need for a separate power supply unit, while still enabling the delivery of downstream PoE power. By drawing power over both of its 90W uplinks, the X435-8P2T-W can deliver up to 105W of downstream PoE power.

Connection to ExtremeXOS Aggregation Switch

V300 Series switches are designed to operate in conjunction with supported ExtremeXOS Series switches at the aggregation layer or core of the network. V300 switches can be single or dual connected to one or more supported ExtremeXOS system for redundancy and uplink bandwidth – and in the case of the V300-8P-2T-W for additional power draw.

Ring Support for Edge Resiliency

Cascaded V300 devices can also be configured in a ring design for additional resiliency. In a ring, the first and last V300 devices in a cascade can be connected to the EXOS aggregation switch. If any V300 device in the ring should fail, traffic can be re-routed in the other direction across the ring to the EXOS aggregation switch.

Specifications:


  V300-8P-2T-W V300-8T-2X V300-8P-2X
Ports
  • 8 x 10/100/1000BASE-T (RJ-45) POE-Plus Half, Full, Auto Duplex
  • 2 x 10/100/1000BASE-T 802.3bt Type 4 (30W/60W/90W) PoE ports
  • 8 x 10/100/1000BASE-T (RJ-45) Half, Full, Auto Duplex
  • 2 x 10GBASE-X SFP+
  • 8 x 10/100/1000BASE-T (RJ-45) POE-Plus Half, Full, Auto Duplex
  • 2 x 10GBASE-X SFP+
Performance and Scale
Maximum 10/100/1000 Base-T Ports 8 8 8
Maximum Active 1Gb SFP ports 2* 2 2
Maximum 10Gb SFP+ Ports 0 2 2
Aggregated Switch Bandwidth 4 Gbps 40 Gbps 40 Gbps
Frame Forwarding Rate* 29.8 Mpps 29.8 Mpps 29.8 Mpps
Physical
Dimensions 1 RU / 1.75 inches (4.45 cm) H
8.43 inches (21.41 cm) W
7.63 inches (19.38 cm) D
1 RU / 1.71 inches (4.38 cm) H
8.27 inches (21.20 cm) W
7.68 inches (19.70 cm) D
1 RU / 1.71 inches (4.38 cm) H
8.27 inches (21.20 cm) W
7.68 inches (19.70 cm) D
Weight 2.9 lb. (1.32 kg) 3.13 lb (1.41 kg) 3.25 lb (1.48 kg)
Operating Conditions
Operating Conditions 0C to 50C (32F to 122F) @ 1000 meters
10% to 95% relative humidity, non-condensing
0 to 3,000 meters altitude
Shock (half sine): 30 m/s2 (3G), 11 ms, 6 shocks
Random Vibration: 3 to 500 Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Power Consumption (Watts) 7.2 3.3 7.6
Minimum Heat Dissipation (BTU/hr) 24.6 11.6 25.9
Maximum Power Consumption (Watts)1,2 129.1 7.0 214.6
Maximum Heat Dissipation (BTU/hr)1,2,3 82.1 23.8 118.2
PoE Power Budget
Power Supply N/A   280W
Max PoE Budget 105W4   180W

* 1Gb uplinks on V300-8P-2T-W are copper only (not SFP)
1 All ports 100% traffic with maximum PSUs
2 Includes maximum PoE load (W) through the switch
3 Does not include PoE load heat dissipated through external electronic load
4 Maximum applied PoE Power when drawing power over 2 x 90W PoE input links on V300-8P-2T-W. See PoE Power Budget Values for V300-8P-2T-W table that follows for specific PoE uplink configurations and their respective PoE budget numbers.


Environmental Compliance

  • EU RoHS: 2011/65/EU
  • EU WEEE: 2012/19/EU
  • China RoHS: SJ/T 11363-2006
  • Taiwan RoHS: CNS 15663 (2013.7)

Packaging and Storing Specifications

  • Temp: -40° C to 70° C (-40° F to 158° F)
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
  • Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
  • Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
  • Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)
  • IEC 60068-2-2 class s3 (transportation conditions)
  • IEC 60255-21-1
  • IEC 60255-21-2

Regulatory and Safety

  • North American ITE
    • UL 60950-12nd edition A2:2014, Listed Device (U.S.)
    • CSA 22.2 No. 60950-12nd edition 20 14(Canada)
    • UL/CuL 62368-1
    • Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
    • CDRH Letter of Approval (US FDA Approval)
  • European ITE
    • EN 60950 2nd Ed
    • EN 62368-1
    • EN 60825 Class 1 (Lasers Safety)
    • 2014/35/EU Low Voltage Directive
  • International ITE
    • CB Report & Certificate per IEC 60950-1 + National Differences
    • IEC 62368-1
    • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

  • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • EN 55032: Class A
    • EN 55024
    • EN 55011
    • EN 61000-3-2: 2014 (Harmonics)
    • EN 61000-3-3: 2013 (Flicker)
    • EN 300 386 (EMC Telecommunications)
    • 2014/30/EU EMC Directive
  • International EMC Certifications
    • CISPR 22 Class A (International Emissions)
    • AS/NZS CISPR32
    • CISPR 24: Class A (International Immunity)
    • IEC 61000-4-2/EN 61000-4-2: Electrostatic Discharge, 6kV Contact, 8 kV Air, Criteria B
    • IEC 61000-4-3/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
    • IEC 61000-4-4/EN 61000-4-4 Transient Burst, 2 kV, Criteria B
    • IEC 61000-4-5/EN 61000-4-5 Surge, 1 kV L-L, 2 kV L-G, Level 3, Criteria B
    • IEC 61000-4-6/EN 61000-4-6 Conducted Immunity, 0.15-80 MHz, 7Vrms, 80%AM (1kHz) Criteria A
    • IEC/ EN 61000-4-11:2004 Power Dips & Interruptions, >30 %, 25 periods, Criteria C

Country Specific

  • VCCI Class A (Japan Emissions)
  • ACMA RCM (Australia Emissions)
  • CCC Mark
  • KCC Mark, EMC Approval (Korea)
  • BSMI (Taiwan)
  • Anatel (Brazil)
  • NRCS LoA (South Africa)


Power Supply Specifications:


  XN-ACPWR280W XN-ACPWR-40W
Height 1.69 inches (4.29 cm) 1.24 inches (3.15 cm)
Width 3.94 inches (10.0 cm) 1.96 inches (5.0 cm)
Depth 7.88 inches (20.02 cm) 4.92 inches (12.5 cm)
Weight 2.33 lb (1.06 kg) 0.62 lb (0.28 kg)

  PoE Input Link(s) Max PoE Budget
V300-8P-2T-W 2 x 90W 105W
1 x 90W 50W
2 x 60W 75W
1 x 60W 30W
2 x 30W 30W
1 x 30W 0W
