PowerDsine 3501G
Single-port Gigabit PoE Midspan, 802.3af Compliant

PowerDsine 3501G

Sorry, this product is no longer available, please contact us for a replacement.



Overview:

PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.

The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.

With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

  • Safe & reliable power over existing Ethernet infrastructure
  • Stackable and compact
  • Cisco and legacy PoE support*
  • Plug-and-play installation
  • Guaranteed uptime

* Dongles required

Deployment:

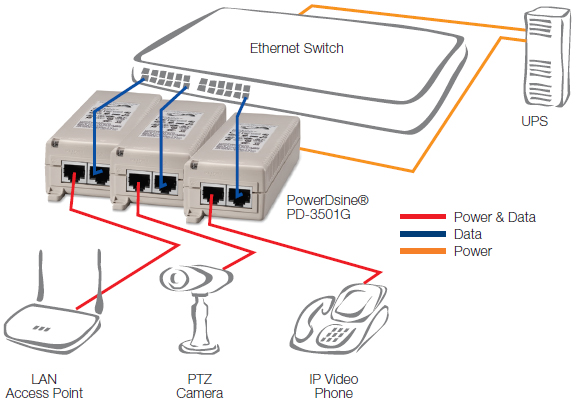

PD-3501G Deployment

Specifications:


PD-3501G Specifications
No. of Ports 1
Pass Through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 48Vdc
User Port Power: 15.4W (Guaranteed)
Input Power Requirements AC Input Voltage: 90 to 264 Vac
AC Input Current: 0.5A @110-240Vac
AC Frequency: 47 to 63 Hz
Dimensions 53 mm (W) x 32.5 mm (H) x 140 mm (L)
2.09 in. x 1.28 in. x 5.5 in
Weight .44 lbs (200g)
Indicator User Indicator: Channel Power (Green)
Connectors Shielded RJ-45, EIA 568A and 568B
Environmental Conditions Operating Ambient Temperature: 32º to 104ºF (0 to 40ºC)
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: –4º to 158ºF (–20º to 70ºC)
Storage Humidity: Maximum 95%, Non-condensing
Operating Altitude: –1000 to 10,000 ft. (–304.8 to 3048 m)
Reliability MTBF: 100,000 hrs. @25ºC
Thermal Rating 13 BTU/Hr (@240VAC)
Warranty 1-year
Regulatory IEEE 802.3af (PoE), RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity FCC Part 15, Class B
EN 55022 Class B
EN 55024, VCCI
Safety Approvals UL/cUL Per EN 60950-1
GS Mark Per IEC 60950-1

Documentation:

Download the PowerDsine 3501G Datasheet (PDF).
