ExtremeWireless AP310

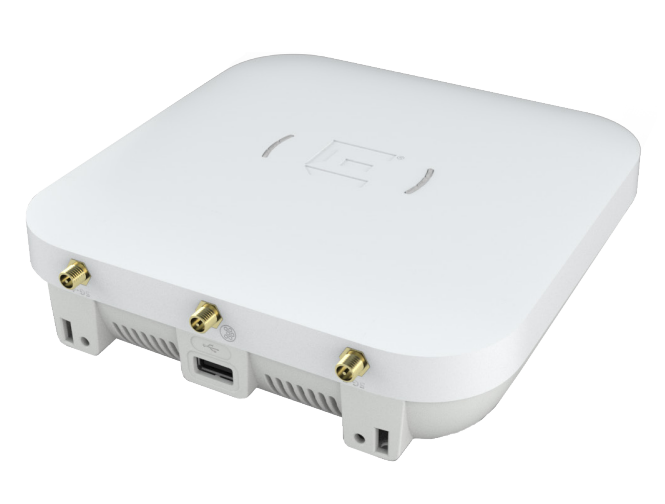

ExtremeWireless AP310 Dual Radio 802.11ax - 2x2:2, Dual 5G Indoor External Antenna Access Point
#AP310e-FCC
Our Price: $676.00

Overview:

The AP310i/e is based on a new system-on-a-chip (SoC) with two built in dual band 2x2 radios providing the best value with Wi-Fi 6 high-efficiency. Priced for the mass market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance. While other vendors may reduce features and functionality, the AP310i/e retains all the capabilities of higher-end APs software-selectable-antenna (SSR). 802.11ax data rates of up to 2.4 Gbps are available concurrently in both the 2.4 GHz and 5 GHz band. The AP310i/e also provides the flexibility to provide the same data rates simultaneously on two 5 GHz channels using dual-5 GHz SSR technology.

Despite the exponential growth of users, BYOD devices, IoT, high-bandwidth applications and security threats straining the infrastructure, the AP310 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Highlights

Radio Technology

  • 5 GHz 2x2:2
  • 2.4 GHz 2x2:2

Radio Modes - SSR

  • 2.4 GHz / 5 GHz
  • 5 GHz / 5 GHz - Dual 5 GHz
  • Sensor (2.4 GHz/5 GHz) / 5 GHz

High Density Environments

  • Delivers exceptional end-user experience even in the densest user environments

WPA3 Support

  • Includes the latest WPA3 Wi-Fi security standard delivering robust protections for users and IoT devices

Fully Functional over 802.3af

  • USB port usage requires 802.3at

Cellular Coexistence Filter (CCF)

  • Minimizes the impact of interference from cellular networks

Smart Management Choices

  • Extreme Campus Controller or VX/NX controller is ideal for on-premises requirements
  • Extreme Campus Controller, /VX or NX controller plus additional cloud management capabilities provided via ExtremeCloud IQ

Features:


Security

The AP310i/e delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security.

Management Analytics

In conjunction with management system, cloud or on-premises, the AP310i/e provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides contextspecific granularity with perspective views for locations, network, APs, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from widget library.


Wi-Fi 6 Technology

Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

RF Monitoring

Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with Adaptive RF management with AI/ML-like functionality. Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired dual 5 GHz operation. Load balancing, band steering and many other attributes of the RF can all be automated.


Programable Radios

Extreme launched the Industry's first software defined 802.11ax access point supporting not only a dual 5GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP310i/e intelligent monitoring of the software configurable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required.

Integrated BLE

To support both IoT and Guest Engagement services the AP310i/e integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app download pages, captive portals, or site-specific information.


Specifications:


Radio Specifications

  • SSID per Radio/Total: 8/16
  • Users per Radio/total: 512/1024

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM Modulation)
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
  • 2x2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)

802.11ax

  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Dual-band OFDMA
  • Rates (Mbps):
    • 5G: HE0-HE11 (8 Mbps – 1200 Mbps)
    • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps)
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HE20/HE40/HE80 support for 5 GHz
  • HE20/HE40 support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO
  • TxBF (Transmit Beamforming)

IOT Radio

  • BLE Radio Bluetooth Low Energy (BLE) and IEEE 802.15.4 compliant

Interfaces

  • (2) Autosensing 10/100/1000 Ethernet Port, RJ45
  • USB3.0, Type A, 0.5A

Power Specifications

  • IEEE 802.3af PoE Power

Radios

  • BLE Radio Bluetooth Low Energy (BLE) and IEEE 802.15.4 compliant
  • Internal GPS - accuracy is 2.5m- 3m in open sky

Peak Gain

Software Mode Radio 1 Radio 2 Radio 3
Dual Band 2.4 Ghz 4.2 dBi 5 Ghz 4.8dBi 4.7 dBi
Sensor 2.4 Ghz 4.2dBi
5 Ghz 4.5dBi
5 Ghz 4.8dBi 4.7 dBi
Dual 5G 5 Ghz 4.5dBi 5 Ghz 4.8dBi 4.7 dBi

Power Options

  • Power Draw:
    • Typical: 9W, Max:11.1W (w/o USB)
    • Typical: 12W, Max:14W (w/ USB)
    • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
    • 802.3af Power over Ethernet injector
    • PoE Out Supports 802.3af Powered Devices (PD) when powered by 802.3at

Physical

  • 6.4" x 6.4" x 1.7" (165mm x 165mm x 45mm)
  • AP310i/e: 1.5 lbs (.7 kg)

Antennas

  • AP310e External Antenna
    • (4) RP SMAs connectors
    • (1) RP SMAs connectors for BLE

Mounting

  • Wall, and flat tile and 15/16" wide tbar, mount included as part of AP
  • Built-in slot for Kensington type locks
  • 5/8" Ceiling tile protrusions on 9/16". 15/16" and 1.5" wide t-bars sold as an accessory
  • Flush ceiling tiles with 9/16". 15/16" and 1.5" wide t-bars sold as an accessory

Environmental

  • Operating: -20 to 55°C
  • Storage: -40 to 70°C

Environmental Discharge

  • +/-8 kV (contact discharge)/ +/-15 kV (Air Discharge)

Environmental Compliance

  • UL2043 – Plenum Rated

Regulatory Compliance

Product Safety Certifications

  • IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS 62368/60950.1, Intertek NTRL
  • RoHS Directive 2011/65/EU

Radio Approvals

  • FCC CFR 47 Part 15, Class B
  • ICES-003, Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS247
  • AS/NZS4268 + CISPR32
  • IEC/EN 60601-1-2
  • EN 62311
  • EN 50385
  • EN 301 489-1
  • EN 301 489-17
  • EN 55032, (Class B)
  • EN 55011, (Group 1, Class B)
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 300 328
  • EN 301 893
  • EN 50581

Support

  • Limited Lifetime Warranty WiNG

Power and Sensitivity:


Power and Receive Sensitivity – 2.4 GHz
Channel Data Rate Power (dBm) Sensitivity (dBm)
11b 1 - 11 Mbps 19 -93, -86
11g 6 Mbps  19 -89
54 Mbps  17 -72
11n HT20 MCS0, 7 19, 16 -88, -69
11n HT40 MCS0, 7 18, 15 -85, -66
11ax HE20 HE0, 11 19, 13 -88, -59
11ax HE40 HE0, 11 18, 12 -85, -55
Power and Receive Sensitivity – 5 GHz (Full Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  20 -90
54 Mbps  18 -74
11n HT20 MCS0, 7 20, 18 -90, -70
11n HT40 MCS0, 7 19, 17 -87, -68
11ac VHT20 MCS0, 8 20, 17 -89, -66
11ac VHT40 MCS0, 9 19, 16 -87, -62
11ac VHT80 MCS0, 9 19, 16 -84, -59
11ax HE20 HE0, 11 20, 15 -89, -61
11ax HE40 HE0, 11 19, 15 -87, -58
11ax HE80 HE0, 11 19, 15 -85, -56
Power and Receive Sensitivity – 5 GHz (High Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  18 -89
54 Mbps  17 -73
11n HT20 MCS0, 7 18, 16 -89, -69
11n HT40 MCS0, 7 18, 16 -86, -67
11ac VHT20 MCS0, 8 18, 15 -88, -65
11ac VHT40 MCS0, 9 18, 15 -86, -61
11ac VHT80 MCS0, 9 18, 15 -83, -58
11ax HE20 HE0, 11 18, 14 -88, -60
11ax HE40 HE0, 11 18, 14 -86, -57
11ax HE80 HE0, 11 18, 14 -84, -55
Power and Receive Sensitivity – 5 GHz (Low Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
0.0525 in 6 Mbps  16 -89
54 Mbps  14 -73
11n HT20 MCS0, 7 16, 14 -89, -69
11n HT40 MCS0, 7 15, 13 -86, -67
11ac VHT20 MCS0, 8 16, 13 -88, -65
11ac VHT40 MCS0, 9 15, 12 -86, -61
11ac VHT80 MCS0, 9 15, 12 -83, -58
11ax HE20 HE0, 11 16, 11 -88, -60
11ax HE40 HE0, 11 15, 11 -86, -57
11ax HE80 HE0, 11 15, 11 -84, -55

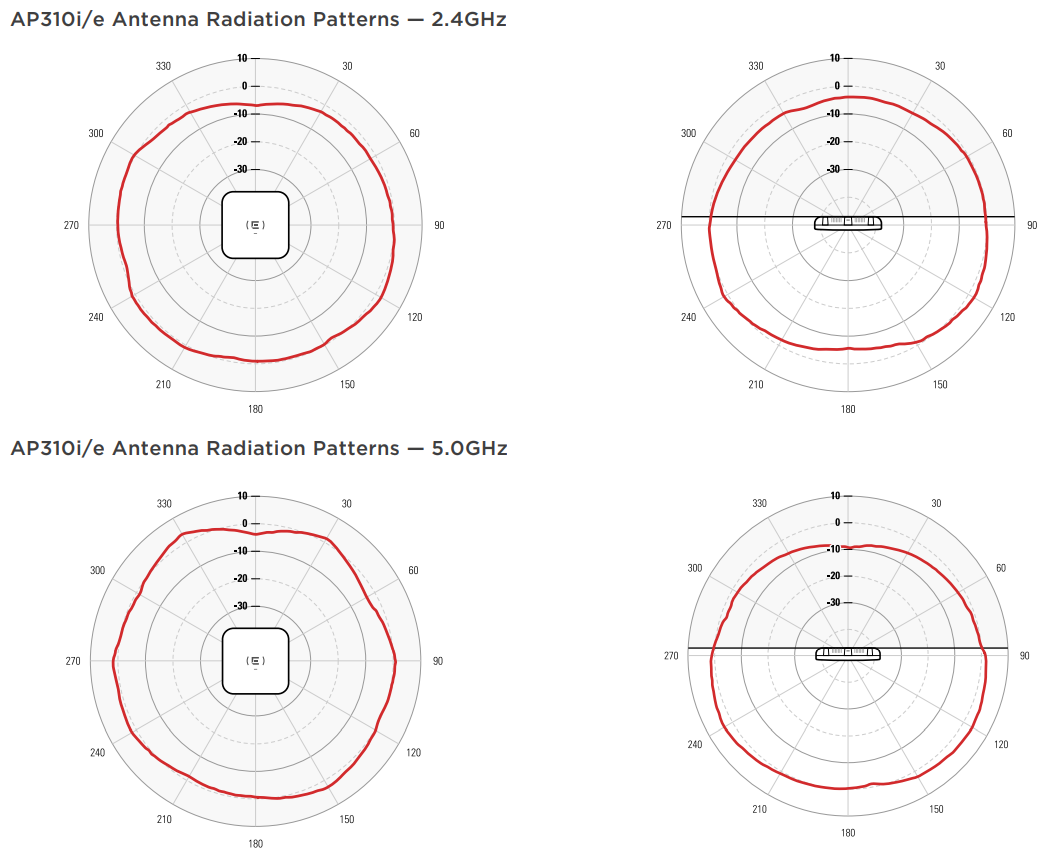

Radiation Patterns:

Documentation:

Download the Extreme Networks ExtremeWireless AP310i/e Datasheet (PDF).
