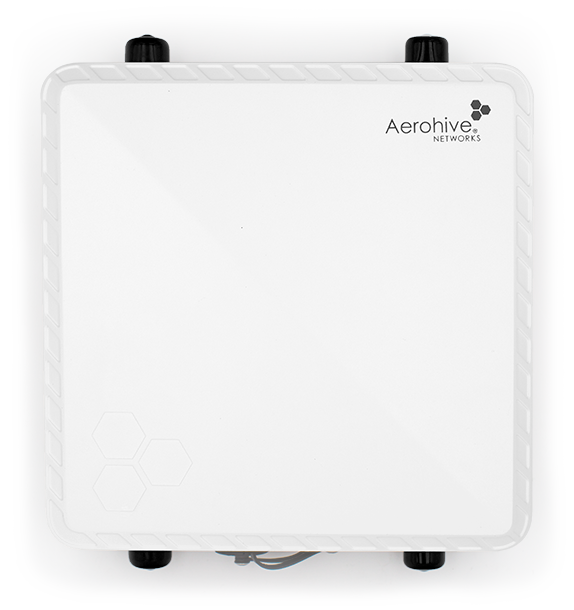

Extreme Networks AP1130
Enterprise-Grade High Performance, Rugged 2x2:2 802.11ac MIMO Access Point for Demanding Environments
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The AP1130 is designed for extended temperature range and a watertight chassis making it suitable for the toughest environments. The AP1130 provides high-performance dual band concurrent (2.4 GHz and 5 GHz) 802.11ac (2x2:2) MIMO.
The AP1130 can be easily installed in hard-to-reach places like rooftops and poles by a single person. It also features intuitive LEDs which indicate the AP status and backhaul connections either over Ethernet or wireless (mesh backhaul). Additionally, the AP1130 enables accurate tuning of directional antennas for long range point-to-point mesh connections, providing a visual and audio mechanism to accurately identify the most suitable orientation for antennas, such that the mesh link is formed at the highest possible negotiated rate, leading to improved user experience.
Highlights
Radio Technology
- 802.11ac - 5 GHz 2x2:2
- 802.11ac - 2.4 GHz 2x2:2
Simplified Deployments
- Automated deployments
- Simplified network operations
- Advanced reporting and network insights
Reliable Outdoor Access
- Distributed control Wi-Fi delivers self-optimizing and self-healing mobility
- Automated client distribution between radios or neighboring access points
- Dynamic mesh backhaul
Secure Network Access
- Broad range of authentication modes for all devices from Corporate to IoT
- Integrated enterprise protection mechanisms including WIPS and VPN
Features:
Advance Security
This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private PreShared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.
Management Analytics
In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.
Easy Deployment
Intuitive LEDs which indicate the AP status and backhaul connections either over Ethernet or wireless (mesh backhaul). Accurately tune directional antennas for long range point-to-point mesh connections with visual and audio mechanisms to accurately identify the most suitable orientation for antennas, such that the mesh link is formed at the highest possible negotiated rate, leading to improved user experience.
RF Monitoring
Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.
Performance Optimization
With a performance optimized operating system, this access point works collectively with neighboring devices to fine tune overall network health for connected clients, utilizing a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.
Resilient Outdoor Access
Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.
Specifications:
Radio Specifications
802.11a
- 5.150–5.850 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM Modulation)
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
- 2.4–2.5 GHz Operating Frequency
- Direct-Sequence Spread-Spectrum (DSSS) Modulation
- Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
- 2.4–2.5 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- 20 dBm (100 mW) Transmit Power
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
- 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
- 802.11n Modulation
- Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
- 2x2 Multiple-In, Multiple-Out (MIMO) Radio
- HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
- HT40 High-Throughput (HT) Support for 5 GHz
- A-MPDU and A-MSDU Frame Aggregation
802.11ac
- 5.150–5.850 GHz Operating Frequency
- 802.11ac Modulation (256-QAM)
- Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
- VHT20/VHT40/VHT80 support
- TxBF ( Transmit Beamforming)
Interfaces
- Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet 802.3at) Port
Power Specifications
- IEEE 802.3at PoE Power
- 12 V DC input
Power Options
- 802.3at Power over Ethernet (PoE) port
Physical
- LxWxH: 7.71x7.71x2.12in (196x196x54mm) without brackets and antennas
- 2.6 lbs (1.079 Kg), without brackets and antennas
Antennas
- 4x N-type jack antenna connections for external antennas
- Antennas sold as accessory
Included Mounting Options
- Wall Mounted
- Pole mounted – 1-2.75inch pole strap included
Environmental
- Operating: -40 to 55 °C, Storage: -40 to +80 °C
- Humidity: 95% (non-condensing)
Environmental Compliance
- • IP 67

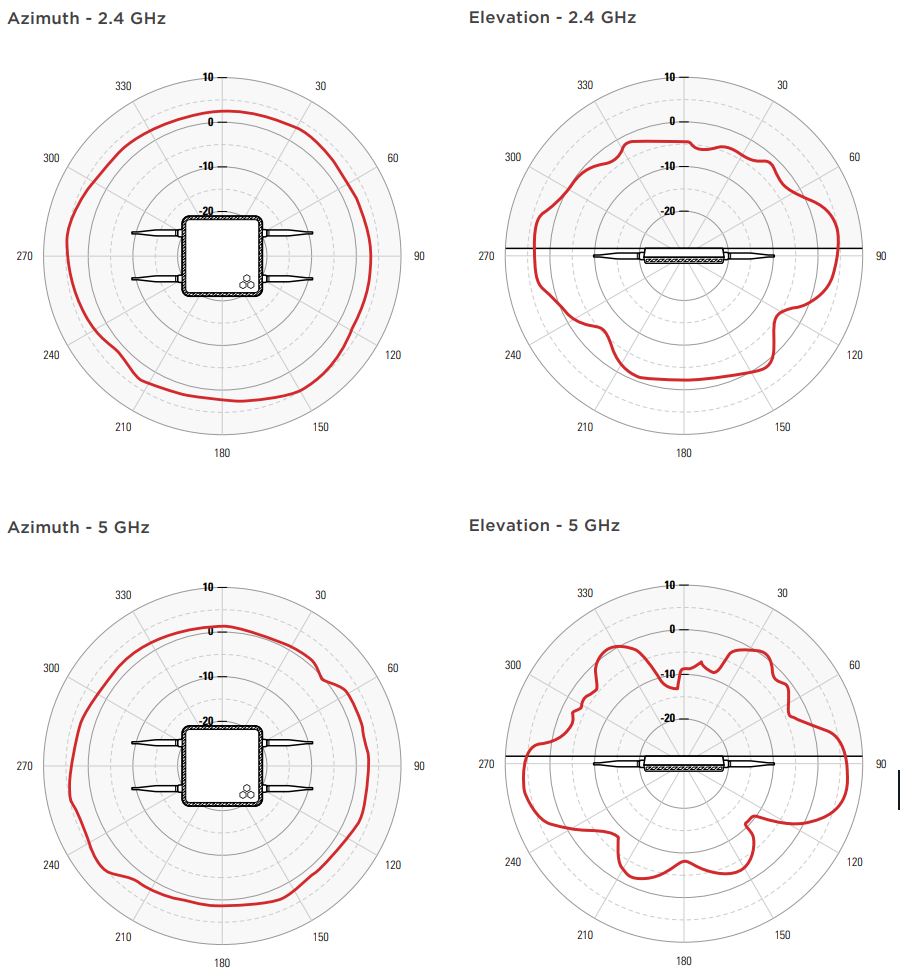

Radiation Patterns:
Documentation:
Download the Extreme Networks AP1130 Datasheet (PDF).
