Extreme Networks 8720-32C
Next Generation Secure Data Center and Mobile Edge Spine Switch

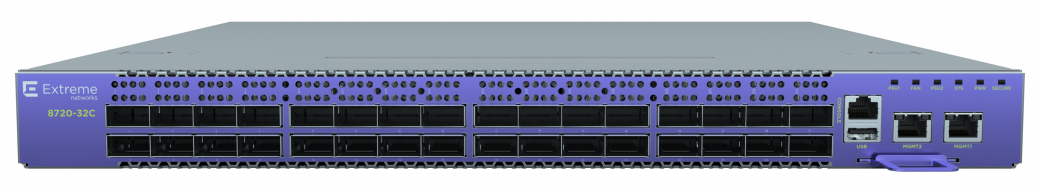

Extreme Networks 8720-32C


Extreme Networks Products
Extreme Networks Products
8720-32C Empty chassis No PS No Fans
#8720-32C
Our Price: $38,184.00
Call For Lowest Price!
8720-32C with AC PS F-B fans
#8720-32C-AC-F
Our Price: $40,195.00
Call For Lowest Price!
8720-32C with AC PS B-F fans
#8720-32C-AC-R
Our Price: $40,195.00
Call For Lowest Price!
8720-32C with DC PS F-B fans
#8720-32C-DC-F
Our Price: $44,215.00
Call For Lowest Price!
8720-32C with DC PS B-F fans
#8720-32C-DC-R
Our Price: $44,215.00
Call For Lowest Price!

More pricing below, click here!

Overview:

With the increasing need for high-performance edge compute and distributed cloud-native applications, enterprise data centers and service provider fixed, and mobile edge solutions require dense 40/100GbE switches for large scale BGP-EVPN IP Fabric spine and leaf architectures. As a part of Extreme’s Universal platform, the Extreme 8720 delivers scalable L2 and L3 services and deterministic network performance while simplifying deployment and reducing cost.

The Extreme 8720 is a high performance, feature-rich, and purpose built 10/25/40/100 GbE network hardware platform built for uncompromising performance in enterprise data centers and for mobile operators delivering critical 5G micro data center and multi-access edge compute (MEC) environments.

As part of Extreme’s Trusted Delivery initiative, the Extreme 8000 Series of Universal switches introduce powerful security enhancements with a combination of Secure Boot technology, enhanced by an industry-first Measured Boot implementation. Measured Boot extends the security posture of the system into the execution of the operating system itself for greater protection against threats.

The Extreme 8720 network hardware platform enables organizations to design open networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 8720 platform delivers a cost-effective solution that optimizes power, cooling, and data center space, wherever your center of data might be.

Features:

ExtremeNetworks

Trusted Delivery

Trusted Delivery from Extreme Networks is designed to protect your key service delivery infrastructure at remote, often-unattended sites, as well as within colocation and data center environments where shared facility access is a concern. With Measured Boot – a security mechanism designed to verify the boot and runtime processes – Extreme Networks provides the capability to validate hardware components, boot process, and the operating system from factory to installation. Combined with remote attestation, where a trusted off-box challenger provides an objective measurement of trust, Measured Boot provides ongoing binary-level validation during operation.

ExtremeNetworks

Plug-n-Play

Extreme Fabric Automation simplifies and accelerates the deployment of the data center IP Fabric. The on-box application runs as a service on the Integrated Application Hosting environment within the SLX and uses industrystandard open API based programmable interfaces to provide the easiest way to deploy, provision and automate single or multiple data center IP Fabric networks in the fastest and most efficient way. Extreme Fabric Automation is also the point of integration for VMware vCenter, Microsoft Hyper V and OpenStack.

ExtremeNetworks

Integrated Application Hosting

The 8520 can run onboard VM-based applications alongside the switch OS – all without impacting performance. This flexible and open solution enables organizations to deploy Extreme-provided or thirdparty applications and tools directly on the switch for security, monitoring, troubleshooting or extended network functionality—based on customer need— without a separate hardware device. This unique design does not impact the control and forwarding plane of the switch and provides dedicated CPUs, memory and SSD storage for flexible packet capture and off-line processing.

Specifications:


8720
Ports
  • 32 x QSFP+/QSFP28 40GbE/100GbE ports
  • 128 x 25/10 GbE using break-out cables
  • 1 x Serial console port RJ-45
  • 2 x 10/100/1000BASE-T out-of-band management port
  • Micro-USB Type A storage port
Power Supplies
  • Modular 750W AC power supply (up to two PSUs)
  • Modular 750W DC power supply (up to two PSUs)
  • Front to Back and Back to Front airflow options
Fan Tray
  • 6 fan modules, support one fan redundancy
  • Front-Back and Back-Front airflow options
Dimensions 17.3in W/22.4in D/1.7in H (44cm/57.0cm/4.3cm)
Performance
  • Line rate 6.4 Tbps Switching Capacity (3.2 Tbps ingress, 3.2 Tbps egress)
  • Forwarding Rate: 2000 Mpps
  • Average Latency: 800 ns
CPU Memory
  • 8-core Processor
  • 16GB DDR4 ECC memory
  • 128GB SSD memory
Packet Buffers 32MB
Operating Conditions Front-to-Back:
0°C (32°F) to 50°C (122°F) at sea level;
0°C (32°F) to 40°C (104°F) up to 3000 m (10,000 ft)
Back-to-Front:
0°C (32°F) to 45°C (113°F) at sea level;
0°C (32°F) to 40°C (104°F) up to 3000 m (10,000 ft)

Documentation:

Download the Extreme Networks 8720 Series Datasheet (PDF).

Pricing Notes:

  • Pricing and product availability subject to change without notice.
