Summit X430 Series
Open Fabric Edge Switches

Summit X430 Series

Extreme Networks Products Summit X430
Summit X430 Series
Summit X430-24t
24 10/100/1000BASE-T, 4 1000BASE-X unpopulated SFP, 1 AC PSU, ExtremeXOS L2 Edge license
#16516
List Price: $995.00
Our Price: $538.00
Summit X430-48t
48 10/100/1000BASE-T, 4 1000BASE-X unpopulated SFP, 1 AC PSU, ExtremeXOS L2 Edge license
#16518
List Price: $1,895.00
Our Price: $1,024.00

Click here to jump to more pricing!

Overview:

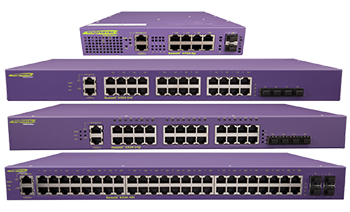

Summit X430The Extreme Networks Summit X430 series Gigabit Ethernet standalone switches provide network edge connectivity for enterprises, branch offices, and small and medium-sized businesses. Summit X430 series are available in 28- or 52-port 10/100/1000 Mpps port models 8 or 24 port 10/100/1000 Mpps IEEE 802.3at PoE models and are ideal for network convergence of Unified Communications, wireless mobility, streaming media and multicast traffic on a single open fabric edge network.

The Summit X430 leverages a compact 1RU and 10-inch deep form factor, along with a low volume operating mode that makes it ideal for open office and wiring closet environments. Summit X430 series switches support up to 4 fixed front panel 100/1000BASE-X (SFP) unpopulated ports (two SFP ports on the 8 port PoE+ switch) that can be utilized for high-speed backbone or link aggregation connections between wiring closets.

Summit X430 series simplifies network operation by using the ExtremeXOS, a modular operating system (OS) that spans all Extreme Networks Summit and BlackDiamond Ethernet switches. Powered by ExtremeXOS, the Summit X430 series enables organizations to build highly resilient and secure edge networks that support high network uptime, simplified management, increased operational efficiency with low total cost of ownership.

The Summit X430 provides exceptional Policy-based QoS with advanced traffic management for converged applications. With eight hardware queues per port to support granular (8kbps-1Mbps) traffic classification, the Summit X430 provides flexible yet reliable solution for converged data, voice & video traffic.

Highlights

Summit X430 series switches are based on the revolutionary ExtremeXOS that runs across all of Extreme Networks switches. Powered by ExtremeXOS, Summit X430 switches provide resilient, secure and programmable solution for your network edge application connectivity. Summit X430 switch provides low-to-medium density PoE+ and high-density Gigabit Ethernet ports plus dedicated SFP ports in a compact 1RU format, supporting intelligent Layer 2 switching with Layer 2 – Layer 4 traffic classification and QoS on every port for predictable network performance.

Key Features

  • 28 or 52 Gigabit Ethernet ports.
  • 8 port and 24 port IEEE802.3at PoE solutions
  • Line rate performance on all ports.
  • BASE-T connectivity to the desktop.
  • Dedicated BASE-X SFP ports.
  • ExtremeXOS Layer 2 edge feature set.
  • Limited Lifetime Warranty

Features & Benefits:


Simplified Network Deployment

  • Single streamlined operating system across the entire network.
  • Automatic port detection & provisioning using Universal Port capability.
  • Widgets & automation scripts to simplify operation & configuration.
  • LLDP/LLDP-MED to provide device management

High Performance

  • High bandwidth, non-blocking architecture
  • Quality of Service (QoS) with advanced traffic management capabilities.
  • 8, 28 or 52 port
  • Line rate ACL for controlling network resource utilization & network protection.
  • Less than 5 µs (64-byte) latency

Comprehensive Security Features

  • Identity aware role based policy and host integrity enforcement
  • Extensive MAC and IP security functionality to help prevent man-in-the-middle attacks
  • Multiple network edge authentication support with multiple endpoints per port

Scalability for Future Network Growth

  • Layer 2 MAC addresses support – 16K.
  • Total VLANs – 4094.
  • Total trunks – 128 load sharing.
  • Maximum Layer 2 Multicast groups – 1K.

Programmable Extensibility

  • Integrate best-of-breed applications to your network with an open, yet secure XML-based Application Programming Interface (API).
  • Integrate Extreme Networks and third-party developed software applications using open standards-based POSIX interfaces.

Enable Network Convergence

  • Quality of Service (QoS) with advanced traffic management capabilities for converged applications.
  • Traffic policing or rate limiting on ingress, 802.1Q tagging and Diffserv marking, and shaping on egress with eight queues per port provides predictable network performance.

High Availability & Resiliency

  • Modular ExtremeXOS operating system
  • Ethernet Automatic Protection Switching (EAPS) resiliency protocol.
  • Spanning Tree (802.1D), Per VLAN Spanning Tree (PVST+), Rapid Spanning Tree (802.1w) and Multiple Instances of Spanning Tree (802.1s) protocols for Layer 2 resiliency.

Specifications:


Summit X430 Right View
  • Latency: <5 µs (64-byte)
  • Max Packet Size: 9KB (Jumbo Frame Support)
  • Total Trunks: 128 load sharing, members per trunk: 8
  • VLANs: 4,094
  • Ingress ACLs: 1,024

Forwarding Tables

  • Layer 2/MAC Addresses: 16K
  • Layer 2/Multicast Groups: 1K

CPU, Memory

  • Single Core CPU, 500 Mhz clock
  • 256MB DRAM
  • 256MB Compact Flash

QoS, Rate Limiting

  • Ingress bandwidth meters: 512
  • Ingress metering granularity: 8 Kbps
  • Ingress bandwidth policing/rate limiting per flow/ACL
  • Egress QoS queues/port: 8
  • Egress bandwidth rate shaping per egress queue and per port
  • Egress rate granularity: 64 Kbps
  • LED Indicators
  • Per port status LED including power status
  • System Status LEDs: management, fan and power

Operating Conditions Temperature Range

  • Humidity: 10% to 93% relative humidity, non-condensing
  • Shock (Half Sine): 30m/s2 (3 G), 11 ms, 60 shocks
  • Random vibration: 3 to 500 Hz at 1.5 G rms

Storage & Transporation Conditions (Packaged)

  • Transportation Temperature: -40° C to 70° C (- 40° F to 158° F)
  • Storage and Transportation Humidity: 10% to 95% RH
  • Packaged Shock (Half Sine): 180 m/s2 (18 G), 6ms, 600 shocks
  • Packaged Sine Vibration: 5 – 62 Hz @ Velocity 5mm/s, 62 – 500 Hz @ 0.2 G
  • Packaged Random Vibration: 5 – 20 Hz @ 1.0 ASD w/-3dB/ oct. from 20 – 200 Hz 14 drops minon sides & corners @ 39.4" (<15kg box)

Warranty

  • Ltd. Lifetime with express Advanced Hardware Replacement
  • For warranty details, visit: http://www.extremenetworks.com/go/warranty

Safety Standards

  • UL 60950-12nd Ed., Lisited Devices (U.S.)
  • CSA 22.2 #60950-1-03 wnd Ed. (Canada)
  • Complies with FCC 21CFR1040.10 (U.S. Laser Safety)
  • CDRH Letter of Approval (U.S. FDA Approval)
  • En60950-1:2006+A11+A1+A12+country deviations
  • EN60825-1:2007 (Lasers Safety) TUV-RGS Mark by German Notified Body
  • 2006/95/EC Low Volatage Directive
  • AS/NZX 60950-1 (Australia/New Zealand)

EMI/EMC Standards

  • North America EMC for ITE
    • FCC CFR 47 part 15 Class A (U.S.A.)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • EN 55022:2010 Class A
    • EN 61000-3-2 2006+ A2: 2008 Class A iHarmonics)
    • EN 61000-3-3 2008 (Flicker)
    • EN 55024 2010
    • ETSI EN 300 386: v1.6.1 2008+A2:2010 (EMC Telecommunications)
    • EN 61000-6-4: 2007+A1: 2011 (General Emissions for Industrial, Scientific & Medical)
    • EN 61000-6-2:2005 (General Immunity for Industrial, Scientific & Medical)
    • EN 50121-4:2006 (Emission and immunity of the signaling for Railway Applications
    • 2004/108/EC EMC Directive
  • International EMC Certifications
    • CISPR 22:2010, Class A (International Emissions)
    • CISPR 24 A2:2010(International Immunity) – IEC/EN 61000- 4-2:2008 Electrostatic Discharge, 8kV Contact, 15kV Air, Criteria A –IEC/EN 61000-4-3:2010 Radiated Immunity 20V/m, Criteria A
    • IEC/EN 61000-4-4:2012 Transient Burst – Power AC, ± 2.0kV, Criteria A
    • Power DC, ± 2.0kV CM, 1kV DM, Criteria A – I/O Cables, ± 2.0kV for all I/O longer than 3m
    • IEC 61000-4-5:2005/EN 61000-4-5:2006 Surge
    • AC Power, 1/2kV , Criteria A, test up to 2/4kV
    • DC Power 1kV DM, 2kV CM, Criteria A
    • I/O 1kV L-G, Criteria A
    • IEC/EN 61000-4-6:2008 Conducted Immunity, 0.15-80MHz, 10V/m unmod. RMS, Criteria A
    • IEC 61000-4-8:2009/EN 61000-4-8:2010 Magnetic Immunity, Not applicable
    • IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria A

International EMC Standards

  • VCCI Class A (Japan Emissions)
  • RCM (Australia Emissions)
  • CCC Mark (China Emissions)
  • KCC Mark (Korea Approval)
  • GOST-E (Russia)

Telecom Standards

  • ETSI EN 300 386: V1.6.1 A2:2010 EMC Telecommunications
  • ETSI EN 300 018 (Environmental for Telecommunications)
  • MEE 9 compliant
  • MEE 14 compliant

IEEE 802.3 Media Access Standards

  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3at PoE Plus

Environmental Standards

  • EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
  • EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transporation
  • EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
  • EN/ETSI 300 753 (1997-10) - Acoustic Noise
  • ASTM D3580 Random Vibration Unpackaged 1.5G
  • RoHS 6 compliant
  • China RoHS compliant
  • WEEE Compliant

**Except for the section titled “technical specifications” Extreme Networks makes no warranty whatsoever with respect to any other data contained in this data sheet including any (a) warranty of merchantability; or (b) warranty of fitness for a particular purpose;whether express or implied by law, course of dealing, course of performance, usage of trade or otherwise.

Switch Views:

Summit X430-24t Summit X430-24t Summit X440-48t Summit X440-48t

Documentation:

Download the Extreme Networks Summit X430 Series Datasheet (.PDF)
