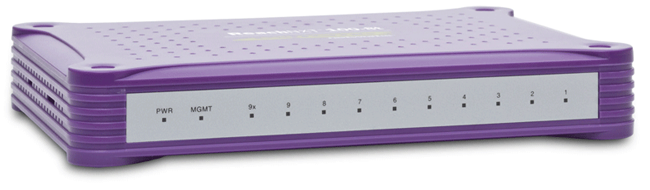

ReachNXT 100-8t Port Extender
Ethernet, IP/MPLS and Pseudowire Capabilities in a Compact 1RU Form Factor.

ReachNXT 100-8t

Extreme Networks ReachNXT-100-8t
ReachNXT 100-8t Port Extender
ReachNXT R100-8t
ReachNXT R100-8t 8x 10/100BASE-T ports, 1 Gigabit combo ports (1 unpopulated Gigabit SFP and 10/100/1000BASE-T, PoE input)
#12101
List Price: $295.00
Our Price: $250.00

Click here to jump to more pricing!

Overview:


100-8t is an 8-port 10/100 Fast Ethernet port extender

ReachNXT 100-8t extends the revolutionary ExtremeXOS core-class operating system from Extreme Networks to the network access. ReachNXT 100-8t provides users with a consistent ExtremeXOS experience at an affordable price. It is best suited for network access applications where easy network deployment is required.

The compact and quiet ReachNXT 100-8t enterprise-class port extender provides 8 Fast Ethernet ports plus 1 Gigabit Ethernet combination copper/SFP fiber port. An optional power adapter provides the ReachNXT 100-8t with power when the SFP fiber port is used.

  • Network security via the upstream ExtremeXOS switch
  • Theft deterrents for added security
  • Provides fiber-to-copper media conversion from its 1000BASE-X SFP port to eight of its 10/100BASE-T ports

Specifications

ReachNXT 100-8t provides 8 ports 10/100BASE-T with autospeed and auto-polarity, and a combo 10/100/1000BASE-T (for Power over Ethernet input) or 1000BASE-X SFP port (shared PHY). ReachNXT 100-8t also provides fiber-to-copper media conversion from its 1000BASE-X SFP port to its eight 10/100BASE-T ports.

  • 5.6 Gbps switch fabric bandwidth, 4.1 Mpps frame forwarding rate (based on 64-byte packets)
  • 2,048 Byte maximum packet size
  • Optional power adapter

Features & Benefits:


Ease of Management Supporting Rapid Network Deployment

ReachNXT 100-8t is a 10/100BASE-T port extender that can aggregate traffic from a small department, multiple stand-alone devices, or similar applications. ReachNXT 100-8t connects to an upstream ExtremeXOS switch via plug-and-play, providing a consistent user experience from core to edge to access of the network. The auto-discovery function allows the ReachNXT 100-8t and the ExtremeXOS switch to recognize each other and appear in Ridgeline™ network and service management. Key features and benefits include:

  • Ease of management and operations lower network costs
  • Link Layer Discovery Protocol (LLDP) simplifies deployment, troubleshooting and firmware management
  • Kensington slot for physical security

Ease of Management Supporting
Rapid Network Deployment

  • Link Layer Discovery Protocol (LLDP) provides information for device management by the upstream switch
  • Includes built-in firmware management

Network Security

  • By extending ExtremeXOS, ReachNXT 100-8t can provide the same level of user security over the network as the upstream

ExtremeXOS switch

  • Automated network login and authentication reduce operator efforts and errors

Theft Deterrents

  • ReachNXT 100-8t will operate only if connected to an upstream

ExtremeXOS switch

  • Kensington lock slot is built in to the ReachNXT 100-8t for added physical security

Ease of Management and Operations Lower Network Costs

  • The plug-and-play simplicity of ReachNXT 100-8t reduces network operations cost as no configuration is required
  • ReachNXT 100-8t provides fiber-to-copper media conversionfrom its 1000BASE-X SFP port to eight of its 10/100BASE-T ports

Pricing Notes:

Extreme Networks ReachNXT-100-8t
ReachNXT 100-8t Port Extender
ReachNXT R100-8t
ReachNXT R100-8t 8x 10/100BASE-T ports, 1 Gigabit combo ports (1 unpopulated Gigabit SFP and 10/100/1000BASE-T, PoE input)
#12101
List Price: $295.00
Our Price: $250.00
