BlackDiamond X Series
Cloud-Scale Data Center Switch for Large Enterprise Networks

Black Diamond X Series

Extreme Networks Products Black Diamond X
BlackDiamond X Series

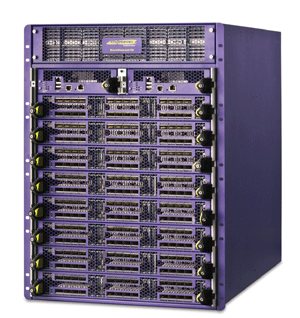

BlackDiamond X8 Series chassis with 8 I/O slots
Chassis includes 5 Fan Trays. Power Supplies or Blank Panels are not included
#48001
List Price: $27,995.00
Our Price: $20,926.00

Click here to jump to more pricing!

Overview:

BlackDiamond X series switches offer enterprise and cloud data center networks the highest throughput performance in the industry.

The BlackDiamond X series switches deliver the highest density of 10 GbE and 40 GbE for the ultimate flexibility in building enterprise core networks and cloud data centers. With its high scalability, the BlackDiamond X series switches offer 1.28 Tbps slot capacity, more than 20 Tbps switching fabric capacity, and up to 768 ports of 10 GbE or 192 ports of 40 GbE per chassis. All of this is available in a very small footprint of one third rack size (14.5 RU).

Data centers today demand highly virtualized, converged, and scalable infrastructure. Multi-tenancy and cloud computing are driving the need for simplicity and cost efficiency from the network fabric, along with a need for expandability, high performance, and service up-time. The Extreme Networks Open Fabric solution, led by its flagship BlackDiamond X8 platform, provides seamless any-to-any connectivity through a simple, scalable, and centrally orchestrated network.

Designed for cloud-scale requirements of data centers, high-performance computing (HPC), and Internet exchange points (IXP), the BlackDiamond X8 provides a low-latency, high-performance switch fabric with high-density wire-speed 10GbE, 40GbE, and 100GbE connectivity for edge-to-core applications, all in a compact footprint using only one-third of a standard rack. As a “fabric-in-a-box” solution, the BlackDiamond X8 eliminates expensive multi-tier architectures and the challenges of inter-device connectivity, uplink bandwidth, and latency. The BlackDiamond X8 also leverages a low-power design ideal for green operations and high degrees of energy efficiency, resulting in lower total cost of ownership (TCO).

  • High-density 1/10GbE, 40GbE, and 100GbE switch for data center consolidation
  • 768 ports of 10GbE SFP+ per switch, 2,304 ports per rack
  • 384 ports of 100/1000/10000MbE RJ45 per switch, 1,152 ports per rack
  • 384 ports of 1GbE SFP per switch, 1,152 ports per rack (using 10GbE)
  • 192 ports of 40GbE QSFP+ per switch, 576 ports per rack
  • 32 ports of 100GbE CFP2 per switch, 96 ports per rack
  • Orthogonal architecture with 20.48Tbps switching capacity
  • 2.3 μSec port-to-port latency
  • High-scale routing with 1 million forwarding entries
  • Powered by time-tested, modular ExtremeXOS® operating system with resilient and intelligent virtualization features and hardware switching of up to 1 million virtual machines
  • Converged open fabric for reliable IP-based storage services and transit for FCoE traffic
  • Low power consumption of 5.6 watts per 10GbE or 22.5 watts per 40GbE port for low total cost of ownership

Features:


"Cloud-Scale" Switching

The BlackDiamond X8 provides either 10.24 or 20.48Tbps total switching capacity for traffic growth while supporting 384 1GbE / 768 10GbE / 192 40GbE, or 32 100GbE wire-speed ports in a single chassis. This translates into 1,152 1GbE / 2,304 10GbE / 576 40GbE, or 96 100GbE ports in a single rack or any combination of those. The BlackDiamond X8 design leverages an orthogonal direct mating system between the interface and switch fabric modules, eliminating the performance bottlenecks of backplane or mid-plane designs. The BlackDiamond X8 offers up to 1.28Tbps unidirectional capacity per slot with current switch fabric modules, with an architecture extensible to support even higher capacity switch fabric modules in the future.

High-Density, High-Scale Server Virtualization

The BlackDiamond X8, powered by the ExtremeXOS® modular operating system, provides a scalable foundation for virtualized applications. By connecting up to 128000 (1 million in future) Virtual Machines (VMs) per system, spread across as many as 768 connected server ports per chassis, the BlackDiamond X8 enables a highly virtualized network infrastructure.

ExtremeXOS runs on a high-performance control plane and helps simplify network deployment and operation through VM-ready capabilities such as ExtremeXOS Network Virtualization (XNV™) and Extreme Networks Direct Attach™. XNV allows auto-configuration of Virtual Port Profiles (VPP) to automatically detect and provision network policies in a virtualized data center in a hypervisor agnostic manner, providing simplicity in managing VM mobility in data-centers. If a VM is moved from one physical server to the other, associated port policies on the connecting switch port are automatically moved. Direct Attach™ eliminates the virtual switch layer, simplifying the network and improving performance.

Several other virtualization features, such as Multi-Chassis Link Aggregation (M-LAG), Port Isolation and Transparent Interconnection of Lots of Links (TRILL), enable the design of flatter network fabrics for large scale virtualized and multi-tenant data centers, eliminating the need for dedicated networks and the complex Spanning Tree Protocol (STP).

Reliable Delivery of Converged Storage Traffic

The BlackDiamond X8 is an optimal solution for high-throughput storage applications, synchronous replication, and disaster recovery within data center and HPC environments. The BlackDiamond X8 supports IEEE Data Center Bridging (DCBx) for reliable delivery of IP storage (iSCSI, NFS, CIFS) traffic over a single converged network. With IEEE compliant lossless Ethernet implementation of Priority Flow Control (PFC) and Enhanced Transmission Selection (ETS), storage traffic can be prioritized, queued and bandwidth guaranteed.

The BlackDiamond X8 also supports transit Fiber Channel over Ethernet (FCoE) for carrying converged fiber channel storage traffic. In converged networks, TRILL enables the building of flat and efficient networks for storage traffic while eliminating complications resulting from STP. With BlackDiamond X8, storage nodes can be connected using wire-speed 10GbE or 40GbE to provide a highly reliable yet flexible and cost-effective network to provision reliable storage services.

Low Latency for Faster Response Time

For low-latency applications such as High Performance Computing (HPC) or High Frequency Trading (HFT), the BlackDiamond X8 provides only 2.3 microsecond port-to-port latency from any IO module to any IO module with a single-tier "fabric in a box" design, and under 3 microsecond latency with a two-tier "open fabric" architecture using Extreme Networks Summit® X770 series Top-of-Rack switch with the BlackDiamond X8. The latency is sub-microsecond between the ports on the same IO module.

With the growth of mobile devices, an increasing number of applications are hosted in data centers, resulting in increased east-west and north-south traffic. Though total latency is a result of the compute, storage and transmission latencies, the BlackDiamond X8 can deliver the benefits of lower network latency to improve customer experiences and overall application response time.

Orchestration Through Software Defined Networking

Software Defined Networking (SDN) is revolutionizing the way networks are designed and operated. SDN helps in virtualization, visibility, optimization and orchestration for better handling of the network, compute and storage from a single and granular command and control perspective.

The BlackDiamond X8 supports standards-based Open Flow to work with third party and open source SDN controllers and provides a complete SDN solution. The BlackDiamond X8 enables SDN by providing a programmable control path and a scalable fabric that can be programmed in an efficient manner. Additionally, the BlackDiamond X8 supports the Open Stack Neutron plugin for cloud level orchestration.

The BlackDiamond X8 can be leveraged in hybrid networks for simultaneous SDN and non-SDN based deployments. Off-theshelf or home-grown SDN based applications can be used for network control, traffic engineering, quality of service, SLA management, monitoring, analytics, virtualization and other advanced implementations.

High Scale Enterprise Routing

With future availability, the BlackDiamond X8 will support two types of interface modules: the existing Non-XL modules for high-density, low-latency moderate-scale edge and core applications, and the future XL modules for the high-scale core or border applications. By supporting up to one million Layer 2/ Layer 3 entries on its 40GbE and 100GbE XL-series interface modules (future availability), the BlackDiamond X8 eliminates the need for high cost traditional routers in the data center core. The XL and non-XL modules can be deployed together within the same core switch without impacting one another - not only collapsing tiers to simplify the network, but also reducing build-out and maintenance costs.

XL-series modules can also be deployed for the high-scale edge applications where a large number of host routes or access control lists (ACL) are required, such as managed hosting and cloud. The 40GbE and 100GbE module can also be used to break down the ports into multiple 10GbE ports for high-density, highscale edge connectivity.

Inter-Data Center Connectivity

The BlackDiamond X8 is designed with combined data center core and border connectivity in mind. For this reason, BlackDiamond X8 10GbE SFP+ and 100GbE CFP2 modules provide long-range connectivity for up to 80 and 10 kilometers respectively using a range of optics. In future when supported, the BlackDiamond X8 XL-series modules will offer more capacity to store large scale internet routing tables and MPLS forwarding entries, eliminating the need for expensive routers.

The BlackDiamond X8 can provide VM mobility between the active/active data centers using MPLS Virtual Private LAN System (VPLS). The Virtual Router (VR) support enables logical partitioning of the BlackDiamond X8 core into multiple instances that can be mapped into multiple VPLS pseudo-wires for complete isolation and integrity of tenant traffic end-to-end.

High Availability for Service Assurance

Today's mission critical data centers and service provider networks cannot afford service blackouts and upset customers. Designed for Tier-3 and 4 data centers and service providers, the BlackDiamond X8 prevents any single point of failure at the hardware level through isolated control and data planes, fully redundant 1+1 management modules, N+1 redundant switching fabric, and N+1 redundant fans. For the power system, the BlackDiamond X8 offers N+1 power supply level and N+N power grid level redundancy.

At the software level, modular ExtremeXOS software increases network availability by monitoring independent processes in real time. If any of these processes become unresponsive or stop running they can be automatically restarted without impacting other processes. The BlackDiamond X8 supports a set of high availability features, including In-Service Software Upgrade (ISSU), Multi-Chassis Link Aggregation (M-LAG) and Ethernet.

Lower Operating Costs, Better Business Margins

The BlackDiamond X8 is designed for power cooling and space efficiency. Power consumption as low as 5.6 Watts per 10GbE port is enabled through an obstruction-less orthogonal design, and variable speed fans that assist in lower heat dissipation and more efficient use of data center cooling resources. This results in lower utility bills to operate the network. The very high density design of the BlackDiamond reduces space and rack requirements, providing fast return on investment per RU. By leveraging CFP2 optical technology, the 100GbE module is not only denser than legacy CFP-based solutions, but also uses less than half as much power. The BlackDiamond X8 also supports CLI migration utilities to reduce the learning curve of technical personnel and save cost. Overall, the BlackDiamond X8 results in lower TCO compared to other switches in its class.

Network Diagram:


Data Center and High Performance Cluster Computing

Extreme Networks BlackDiamond X series switch, powered by the ExtremeXOS modular operating system, helps provide the foundation for highly virtualized data centers. The BlackDiamond X series switch features superior scalability, supporting 128,000 VMs per system, and connecting up to 768 physical servers over 10 GbE ports. This industry first scalability enables next-generation network cores and cloud-based data centers where significantly higher computing power and storage volumes are required.

For 768 ports of 10 Gigabit Ethernet connections to servers, a pair of BlackDiamond X8 system provides simplicity to the data center network with significantly reduced number of switches, power consumption and lower latency between servers.

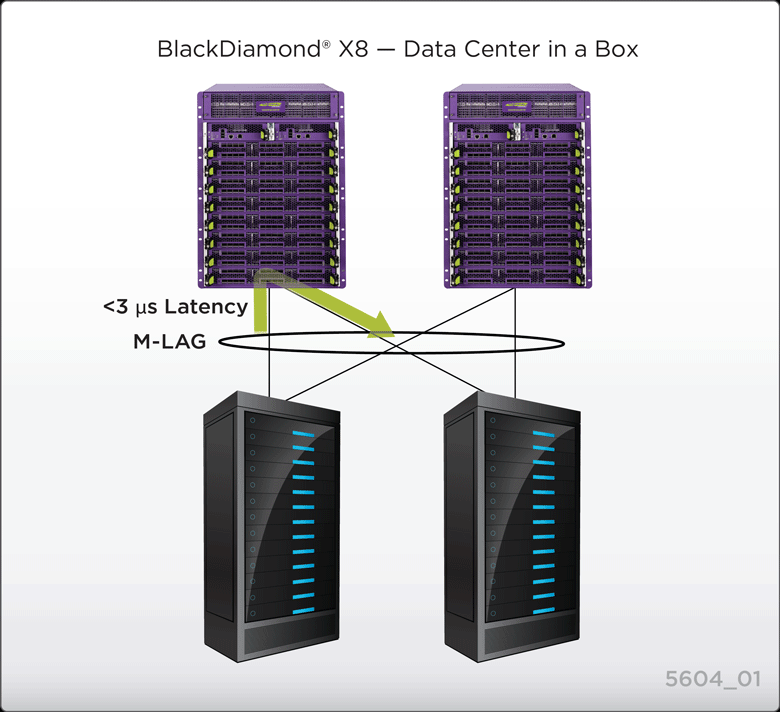

Data Center in a box.

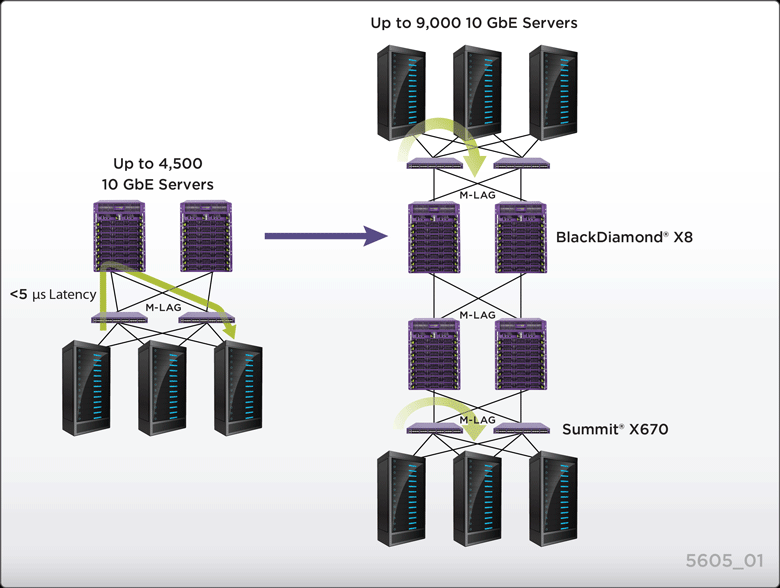

For higher scale server deployment, 2 tier network design can support up to 4,500 10GbE servers, and 9,000 servers by adding another pair of BlackDiamond X8 chassis and associated Summit X670 top-of-rack switches

Scalability

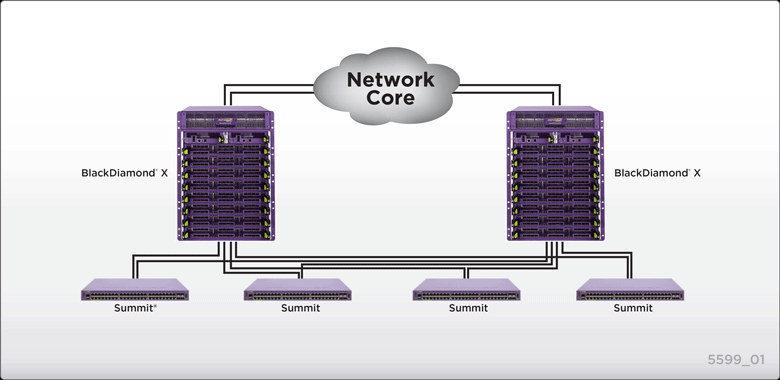

High-Performance Enterprise Core

BlackDiamond X series switches provide the ideal core switch resources for a medium to large-sized network with high-performance and high density 10 GbE and 40 GbE interfaces.

Network Core

Product Comparison:



Features BlackDiamond X8* BlackDiamond 8810 BlackDiamond 8806
Max Auto-Negotiating 10/100/1000BASE-T Ports N/A 784 400
Max Gigabit Ethernet Ports (GBIC or SFP) 384 440 248
Max 10 Gigabit Ethernet Ports 768 194 98
Max 40 Gigabit Ethernet Ports 192 48 24
Form Factor/Footprint Chassis/14.5RU Chassis/14RU Chassis/10RU
Total Switching Capacity 20.48 Tbps 1.28 Tbps 1.28 Tbps
Redundant Power Yes Yes Yes
Power over Ethernet No 802.3af 802.3af
Wire-Speed Layer 2/Layer 3 Switching Yes Yes Yes
Routing - IPv4 BGP4, IS-IS, OSPF, RIP v1/v2, PIM, MSDP BGP4, IS-IS, OSPF, RIP v1/v2, PIM, MSDP BGP4, IS-IS, OSPF, RIP v1/v2, PIM, MSDP
Routing - IPv6 RIPng, OSPFv3, IS-IS RIPng, OSPFv3, IS-IS RIPng, OSPFv3, IS-IS
MPLS/H-VPLS Optional Feature Pack Optional Feature Pack (with selected modules) Optional Feature Pack (with selected modules)
Direct Attach Optional Feature Pack Optional Feature Pack Optional Feature Pack
Policy-Based Routing/Switching Yes Yes Yes
Policy-Based Quality of Service (QoS) Yes Yes Yes
Network Login Yes Yes Yes
Identity Manager Yes Yes Yes
Access Control Lists Yes, Ingress Yes, Ingress and Egress Yes, Ingress and Egress Yes, Ingress and Egress
Universal Port Yes Yes Yes
CLI Scripting Yes Yes Yes
Widgets Yes Yes Yes
Layer 3 Virtual Switching Yes Yes Yes
vMANs (802.1ad) Yes Yes Yes
CLEAR-Flow Yes Yes Yes
sFlow® Yes Yes Yes
IPFIX Yes Yes Yes
EAPS Yes Yes Yes
Advanced Spanning Tree (802.1w, 802.1s, PVST+) Yes Yes Yes
LAG/M-LAG LAG/M-LAG LAG/M-LAG LAG/M-LAG
Switch Management Capabilities SNMP, XML, Web, CLI, 4 RMON groups SNMP, XML, Web, CLI, 4 RMON groups SNMP, XML, Web, CLI, 4 RMON groups
License - Upgrades Core, MPLS, Direct Attach Core, MPLS, Direct Attach Core, MPLS, Direct Attach
License - Default Advanced Edge Advanced Edge Advanced Edge

Specifications:


Modules and Density
Component
Management Module Management Module
  • 2 Management Modules for 1+1 control plane redundancy
  • Minimum 1 required
48-Port 10GbE Copper Interface Module 48-Port 10GbE Copper Interface Module
  • 8 Interface Modules maximum
  • Maximum 384 10GbE wire-speed ports per system
  • Supports 100/1000/10000 MbE(10GbE) RJ45 and negation overCat6a/7 cabling
  • Suited for high-density edge applications
48-Port 10GbE Fiber Interface Module 48-Port 10GbE Fiber Interface Module
  • 8 Interface Modules maximum
  • Maximum 384 10GbE wire-speed ports per system
  • Supports 1/10GbE SFP/SFP+ with SR/LR/ER/ZR optics and cables
  • Suited for high-density, low-latency edge/core applications
12-Port 40GbE Interface Module 12-Port 40GbE Interface Module
  • 8 Interface Modules maximum
  • Maximum 96 40GbE or 384 10GbE wire-speed ports per system
  • Supports 40GbE QSFP+ with SR/LR optics and cables
  • Suited for high-density, low-latency edge and core applications
24-Port 40GbE Interface Module 24-Port 40GbE Interface Module
  • 8 Interface Modules maximum
  • Maximum 192 40GbE or 768 10GbE wire-speed ports per system
  • Supports 40GbE QSFP+ with SR/LR optics and cables
  • Suited for high-density, low-latency edge and core applications
4-Port 100GbE Fiber Interface Module 4-Port 100GbE Fiber Interface Module
  • 8 Interface Modules maximum
  • Maximum 32 100GbE or 320 10GbE wire-speed ports per system
  • Supports 100GbE CFP2 with SR/LR optics and cables
  • Suited for high-bandwidth core applications
IO-Blank Panel IO-Blank Panel
  • 8 Blank Panels maximum
  • Required for the IO and Switch Fabric Modules to maintain proper airflow for cooling. If not present, the modules may overheat and shut-down.
2.56Tbps (10T) Switch Fabric Module 2.56Tbps (10T) Switch Fabric Module
  • 4 SFM total for 10.24Tbps capacity and N+1 redundancy
  • Minimum 3 required for wire-speed across all ports 4th SFM required for N+1 redundancy
  • Suited up to mid-point density (384 ports) applications
5.12Tbps (20T) Switch Fabric Module 5.12Tbps (20T) Switch Fabric Module
  • 4 SFM total for 20.48Tbps capacity and N+1 redundancy
  • Minimum 3 required for wire-speed cross all ports 4th SFM required for N+1 redundancy
  • Suited up to full density (768 ports) applications
Fan Tray Fan Tray
  • Front to Back airflow
  • 5 Fan Trays total
  • All 5 required (included with the chassis)
2500 Watt AC Power Supply 2500 Watt AC Power Supply
  • 8 Power Supplies total split across 2 bays
  • 2500 Watt with 220V, 1250 Watt with 110V
  • N+1 and N+N level power redundancy (depending on the configuration)

BlackDiamond X8 Series Specification
General Specification
Performance
  • 10.24 or 20.48 Tbps data switching capacity option
  • 22.8 BPPS forwarding throughput (using existing modules)
  • 30.5 BPPS forwarding throughput (using fabric capacity)
  • Store-and-Forward and Cut-Through switching support
  • 2.3 micro-second port-to-port latency(64-byte packet) across fabric, sub 1.5 micro-second within IO module
Density
  • 100 MbE Port Density:
    • 384 wire-speed 100MBASE-T RJ45 ports using 48-port 10 GbE I/O module
    • 1 GbE Port Density:
    • 384 wire-speed 1GBASE-T RJ45 or 1GBASE-X SFP ports using 48-port 10 GbE I/O modules
  • 10 GbE Port Density:
    • 768 wire-speed 10GBASE-X SFP+ ports using 24-port 40 GbE I/O module
    • 384 wire-speed 10GBASE-X SFP+ ports using 48-port 10 GbE or 12-port 40 GbE I/O modules
    • 320 wire-speed 10GBASE-X SFP+ ports using 4-port 100 GbE I/O module
    • 384 wire-speed 10GBASE-T RJ45 ports using 48-port 10 GbE modules
  • 40 GbE Port Density:
    • 192 wire-speed 40GBASE-X QSFP+ ports using 24-port 40 GbE I/O module
    • 96 wire-speed 40GBASE-X QSFP+ ports using 12-port 40 GbE I/O module
  • 100 GbE Port Density:
    • 32 wire-speed 100GBASE-X CFP2 ports using 4-port 100 GbE I/O module (future availability)
CPU, Memory
  • Intel i7 Dual Core 2GHz
  • 2GB ECC DDR3 SDRAM
  • 1GB Compact Flash
LED Indicators
  • Per port status LED for link/packet activity
  • Per port status LED for link/packet activity for breakout (40/100GbE)
  • System Status LEDs: management, fan, fabric and interface modules and power supplies
Operating Specifications
Operating Temperature Range 0° C to 40° C (32° F to 104° F)
Operating Humidity 10% to 95% relative humidity, noncondensing
Operational Altitude up to 2000m (6561 feet)
Operational Shock 30 m/s2 (3g), 11ms, 60 Shocks
Operational Random Vibration 3-500MHz @ 1.5g rms
Package and Storage Specifications
Storage/Transportation Temperature -40° C to 70° C (-40° F to 158° F)
Storage and Transportation Humidity 10% to 93% RH
Packaged Shock (Half Sine)
  • < 50 kg 180 m/s2 (10 g), 6 ms, 600 shocks, modules
  • > 50 kg 100 m/s2 (6 g), 11 ms, 600 shocks, chassis
Packaged Sine Vibration 5-62 Hz @ Velocity 5mm/s, 62-500 Hz @ 0.2G
Packaged Random Vibration 20Hz @ ASD=1.0 & 20-200Hz @-3dB/octave
Packaged drop height
  • @ 39.5" <22 lb (10 kg) modules
  • @ 11.8" <110 lb (50 kg) chassis
Regulatory/Safety
North American Safety
  • cULus 60950-1:2007 2nd Ed., Listed Device (U.S.)
  • CSA 22.2#60950-1-03 1st Ed. 2006-07(Canada)
  • Complies with FCC 21CFR Chapter1, Subchapter J (U.S. Laser Safety)
  • CDRH Letter of Approval (U.S. FDA Approval)
European Safety
  • CB Scheme, IEC 60950-1:2005+National Deviations
  • EN 60825-1:2007 (Lasers Safety)
  • 206/95/EC Low Voltage Directive
International Safety
  • GS Mark, EN 60950-1:2006+A11:2009+A1:200+A12:2011
  • Taiwan CNS 14336-1(2010) (BSMI)
  • AS/NZX 60950-1 (Australia/New Zealand
EMI/EMC Standards
North American EMC Standards
  • FCC CFR 47 part 15 Class A (U.S.)
  • ICES-003 Class A (Canada)
European EMC Standards
  • EN 55022:2010 Class A
  • EN 55024:2010 Class A
  • EN 55011:2009+A1:2011
  • EN 61000-3-2:2006+A2:2009 (Harmonics)
  • EN 61000-3-3:2008 (Flicker)
  • EN 61000-6-4:2007+A1:2011 (Emissions for Industrial, Scientific & Medical)
  • EN 61000-6-2:2005 (Immunity for Industrial, Scientific & Medical)
  • ETSI EN 300 386 v1.6.1 (2012-09) EMC Telecommunications
  • 2004/108/EC EMC Directive
International EMC Certifications
  • CISPR 22:2010), Class A (International Emissions)
  • CISPR 24:2010 Class A (International Immunity)
  • IEC 61000-4-2:2008 Electrostatic Discharge, 8kV Contact, 15kV Air, Criteria A
  • IEC 61000-4-3:2010 Radiated Immunity 20V/m, Criteria A
  • IEC 61000-4-4:2012 Transient Burst, 1kV, Criteria A
  • IEC 61000-4-5 2005 Surge, 2kV, 4kV, Criteria A
  • IEC 61000-4-6:2008 Conducted Immunity, 0.15-80MHz, 10V/m unmod. RMS, Criteria A
  • IEC 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C
Country Specific
  • Japan Class A (VCCI)
  • Australia/New Zealand, RCM
  • Taiwan EMC CNS 13438(95) Class A, Safety CNS 14336-1(2010) (BSMI)
  • Brazil (ANATEL)
  • China, complex equipment exemption (CCC)
  • Mexico (via NRTL Listing)
  • South Korea KN22, KN24 (KCC)
Telecommunication Standards
  • ETSI EN 300 386 v1.6.1 (2012-09) EMC Telecommunications)
  • ETSI EN 300 019 (Environmental for Telecommunications)
IEEE 802.3 Media Access Standards
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ae 10GBASE-X
  • IEEE 802.3ba 40GBASE-X
  • IEEE 802.3ac VLAN Tag
  • IEEE 802.3ad Link Aggregation
Operational/Transportation Standards
  • EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2 Storage
  • EN/ETSI 300 019-2-2 v2.2.1 – Class 2.3 Transportation
  • EN/ETSI 300 019-2-3 v2.2.2 – Class 3.1e Operational
  • EN/ETSI 300 753 v1.2.1 (2009-7) – Acoustic Noise
  • ASTM D3580 Random Vibration Unpackaged 1.5G
Fan and Acoustic Noise
  • Sound pressure for comparison to legacy standards per ISO 7779:2010(E)
    • Low Speed: 60.3 dB(A) (LpA)
    • Medium Speed: 66.0 dB(A) (LpA)
    • High Speed: 82.3 dB(A) (LpA)
  • Sound power per ISO 7779:2010(E), ISO 3744:2010(E), ETSI/ EN 300 753:2007(E)
    • Low Speed: 72.0 dB(A) (LWAm)
    • Medium Speed: 78.0 dB(A) (LWAm)
    • High Speed: 94.4 dB(A) (LWAm)
  • Declared sound power per 300 753 :2011-11) via ISO 9296:2010 &
    • Low Speed: 7.5 bels (LWAd)
    • Medium Speed: 8.1 bels (LWAd)
    • High Speed: 9.7 bels (LWAd)
Warranty
  • Ltd. 1-year on Hardware
  • 90-days on Software
  • For warranty details, visit www.extremenetworks.com/go/warranty
Power Specifications
Power Supply
  • Rated Inputs:
    • Low Range: 100-120VAC, 60/50 Hz, 13 A max each power supply
    • High Range: 200-240VAC , 60/50 Hz, 13 A max each power supply
  • Input Ranges:
    • Low Range: 90 -132VAC, 47 - 63 Hz
    • High Range: 185 - 264VAC, 47 - 63 Hz
  • Power supply input socket IEC 320 C20
  • Power cord input plug IEC 320 C19
  • Power cord-sets up to 2m (6.5ft) length require minimum 16 AWG (1.0 mm2) copper stranded wire Power cord-sets greater than 2m (6.5ft) length require minimum 14 AWG (1.25 mm2) copper stranded wire (The power supply cordset wall plug must be appropriately rated and approved for the country of installation)
  • Efficiency 90% typical at full load
  • DC voltage output range: 47.5 to 48.5 Vdc
  • Nominal DC output:
    • Low Range: 48 Vdc , 25 A maximum each PSU
    • High Range: 48 Vdc , 50 A maximum each PSU
  • DC output power:
    • 2500W @ high range for one PSU (See manual for more than one PS)
    • 1250W @ low range for one PSU (See manual for more than one PS)
Power Consumption
  • Worst case power consumption and heat load (With 10Tbps SFM):
    • 4,436 W at output of power supplies
    • 4,929 W at input of power supplies
    • 16,817 BTU/Hour total heat load
  • Worst case power consumption and thermal (With 20Tbps SFM):
    • 6,532 W at output of power supplies
    • 7,258 W at input of power supplies
    • 24,764 BTU/Hour total heat load

Physical Specification
Chassis
  • Rack Units: 14.5
  • Height: 25 in (63.5 cm)
  • Width: 18 in (45.7 cm)
  • Depth: 30 in (76.2 cm)
  • Weight (loaded): 420.6 lb / 190.7 kg
  • Weight (regular): 187.4 lb / 85.0 kg
Management Module
  • Height: 3 in (7.6 cm)
  • Width: 8 in (20.3 cm)
  • Depth: 18 in (45.7 cm)
  • Weight (regular): 5.5 lb / 2.5 kg
Switch Fabric
  • Height: 20 in (50.8 cm)
  • Width: 3 in (7.6 cm)
  • Depth: 10 in (25.4 cm)
  • Weight (10T SFM): 9.2 lb / 4.1 kg
  • Weight (20T SFM): 9.2 lb / 4.1 kg
Interface Module
  • Height: 3 in (7.6 cm)
  • Width: 17 in (43.1 cm)
  • Depth: 18 in (45.7 cm)
  • Weight (48-Port 10GbE): 10.9 lb / 4.9 kg
  • Weight (12-Port 40GbE): 11.0 lb / 5.0 kg
  • Weight (24-Port 40GbE): 14.0 lb / 6.3 kg
  • Weight (4-Port 100Gbe): 14.6 lb / 6.6 kg
Fan Tray
  • Height: 24 in (60.9 cm)
  • Width: 4 in (10.1 cm)
  • Depth: 3 in (7.6 cm)
  • Weight (regular): 6.2 lb / 2.8 kg
Power Supply
  • Height: 1.5 in (3.8 cm)
  • Width: 4.2 in (10.6 cm)
  • Depth: 14.5 in (36.8 cm)
  • Weight (regular): 5.3 lb / 2.4 kg

Scale:

Using non-XL (and *XL with future availability) modules:

Parameters 10/40GBE Modules 100GBE Modules
  NON-XL NON-XL XL*
Largest Frame 9216 Bytes
VLAN 4,094
MAC Forwarding 128K 384K 1032K
IPv4 Host 16K 130K 268K
IPv4 LPM 16K 16K 1024K
IPv6 Host 6K   32K
IPv6 LPM 8K 8K 512K
IPv4 Multicast 6K 64K 64K
IPv6 Multicast 3K 8K 8K
MPLS Forwarding 8K 16K 64K
ACL 8K 16K 128K
LAG Groups 384 384 384
LAG Members 64 64 64
QoS Queues/Port 8 8 8
Rate Limiting Granularity 8Kbps-1Mbps
Ingress and egress bandwidth policing/rate limiting per flow/ACL
Egress bandwidth rate shaping per egress queue and per port

Documentation:

Download the Extreme Networks BlackDiamond X Series Product Brief (.PDF)

Pricing Notes:

BlackDiamond X Series
BlackDiamond X8 Series chassis with 8 I/O slots
Chassis includes 5 Fan Trays. Power Supplies or Blank Panels are not included
#48001
List Price: $27,995.00
Our Price: $20,926.00
BlackDiamond X Module Options
Management Module 1 for BlackDiamond X series chassis
2 modules required for 1+1 redundancy
#48021
List Price: $15,995.00
Our Price: $11,956.00
5.12Tbps Fabric Module for BlackDiamond X chassis
Minimum 3 modules required for wirespeed performance, 4 required for N+1 redundancy supporting full 20Tbps
#48031
List Price: $29,995.00
Our Price: $22,421.00
48-Port 10GBASE-T RJ45 module for BlackDiamond X series chassis
Up to 8 modules in the BlackDiamond X8 chassis support up to 384 wirespeed 100/1000/10000MbE (10GbE) copper ports and work with either 2.56 or 5.12Tbps Fabric Modules
#48040
List Price: $29,995.00
Our Price: $22,421.00
48-Port 10GBASE-X SFP+ module for BlackDiamond X series chassis
Up to 8 modules in the BlackDiamond X8 chassis support up to 384 wirespeed 10GbE ports and work with either 2.56 or 5.12Tbps Fabric Modules. Optics and cables are not included
#48041
List Price: $30,995.00
Our Price: $23,169.00
12-Port 40GBASE-X QSFP+ module for BlackDiamond X series chassis
Up to 8 modules in the BDX8 chassis support up to 96 wirespeed 40GbE or 384 wirespeed 10GbE ports and work with either 2.56 or 5.12Tbps Fabric Modules. Optics and cables are not included
#48046
List Price: $41,995.00
Our Price: $31,391.00
24-Port 40GBASE-X QSFP+ module for BlackDiamond X series chassis
Up to 8 modules in the BDX8 chassis support up to 192 wirespeed 40GbE or 768 wirespeed 10GbE ports and only work with 5.12Tbps Fabric Module. Optics and cables are not included
#48051
List Price: $75,995.00
Our Price: $56,806.00
Accessories, Power Supplies and Fan (Spare)
Fan Tray for BlackDiamond X8 chassis, spare
5 fan trays required in the system
#48015
List Price: $1,795.00
Our Price: $1,342.00
2500W AC Power Supply for BlackDiamond X series chassis
Up to 8 supported in the BDX8 chassis
#48011
List Price: $2,995.00
Our Price: $2,239.00
Enhanced Blank Panel for BlackDiamond X series chassis for empty I/O module slot
#48018
List Price: $599.00
Our Price: $448.00
Mid Mount Kit for BlackDiamond X8 chassis
#48020
List Price: $375.00
Our Price: $280.00
Software Licenses
Core license for the BlackDiamond X8 chassis for scalable Layer 3 rich applications
#48091
List Price: $19,995.00
Our Price: $14,946.00
MPLS Feature Pack license for the BlackDiamond X8 chassis
#48093
List Price: $9,995.00
Our Price: $7,471.00
Direct Attach Feature Pack for Summit X450a/X460/X480, X650, X670 and BlackDiamond 8800, X Series
#11011
List Price: $995.00
Our Price: $744.00
