IdentiFi AP3805 Indoor Access Point
Enterprise-Grade Performance and Security For The Mobile-First World

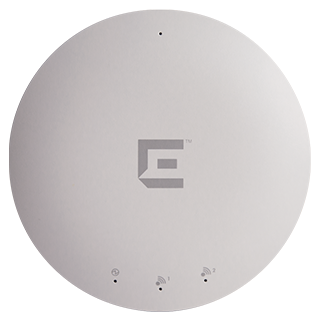

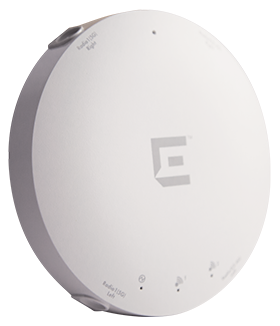

IdentiFi AP3805 Indoor Access Point IdentiFi AP3805 Indoor Access Point

Extreme Networks Products AP3805
IdentiFi Indoor Access Point
Dual Radio 802.11ac/abgn, 2x2:2 MIMO indoor access point
with four internal antenna array (Requires V9.15 or higher)
#WS-AP3805i
Contact us for Pricing!
Dual Radio 802.11ac/abgn, 2x2:2 MIMO indoor access point
SMA connectors for external antenna array (Requires V9.15 or higher, and antennas must be ordered separately)
#WS-AP3805e
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

The AP3805 is a feature rich 802.11ac and 802.11abgn indoor access point that delivers enterprise-grade performance & security without the premium cost. Designed to blend into the office, classroom or hotel environment, the AP3805 is ideal for providing secure 802.11ac and 802.11abgn connectivity for medium-density environments such as schools, hotels and conference centers.

The AP3805i comes with an integrated four antenna array for ease of installation. The AP3805e requires professional installation and includes four RP-SMA antenna connectors supporting both 2.4GHz and 5GHz band antennas. AP3805 uses 802.3af Power over Ethernet (PoE) without reducing its performance nor degrading its enterprise-grade capabilities. An optional external power supply is available for deployments that do not support Power over Ethernet.

The AP3805 is built on the latest Wi-Fi technology including 802.11ac, dynamic radio management, and spectrum analysis with interference classification, beam forming, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 2x2:2 platform is capable of delivering up to 1.17Gbps over-the-air-performance and up to 40,000 packets per second on the wire port. The AP3805 comes with brackets to be installed on to most drop ceiling & wall mounts. Multiple antenna offerings (e.g., omni, sector, and panel) ensure that the AP3805e deployment can be optimized to meet any unique coverage or capacity need.

Benefits

Business Alignment

  • Support for demanding voice/ video/data applications to enhance mobile worker productivity and convenience
  • Role-based grouping of users, devices, and applications to deliver priority, QoS, and security in accordance with business needs
  • Seamless roaming across an entire multi-subnet campus without the need for cumbersome client software
  • Integrated management, security, and QoS features reduce operating cost and ensure a consistent user experience regardless of location

Operational Efficiency

  • Centralized visibility and control from NetSight ™ accelerates problem resolution, optimize network utilization, and automate management
  • Adaptive architecture reduces complexity and optimizes information flow for each application
  • Dynamic Radio Management when used for planning and monitoring ensures optimal spectrum coverage resulting in the best end-user quality of experience
  • Flexible Client Access optimizes throughput for 802.11ac/n clients in today’s mixed ac, n, and a/b/g client environments

Security

  • Authentication and authorization functions include role-based access control (using 802.1X, MAC, and captive portal) and authentication at the AP
  • Wireless Intrusion Prevention (WIPS) functions provide continuous scanning, threat classification, rogue AP detection, and countermeasures against possible attacks
  • Integration of security policies (NAC, IPS) across the wired/wireless networks enables quick diagnosing and resolution of security threats
  • Integration of Policy Manager across the wired/wireless networks dynamically oversees user access at the wireless network point of entry

Support and Service

  • Industry-leading customer satisfaction and first call resolution rates
  • Lifetime warranty for indoor access points
  • Personalized services, including site surveys, network design, installation, and training

Specifications:


Product Features AP3805i/e
General
High performance enterprise class AP
Number of radios 2
MIMO implementation for high performance 11ac & 11n throughputs 2x2
Number of spatial streams 2
Maximum Throughput 2.4GHz Radio 300Mbps
Maximum Throughput 5GHz Radio 867Mbps
Maximum Throughput per AP 1.17Gbps
RFC2285 Wire/Wireless Forwarding Rate 40,000 packets per second
Number of SSIDs supported per radio/total 8 / 16
Simultaneous users per radio/total 127 / 254
Simultaneous Voice calls(802.11b, G711, R>80) 12 or greater
Mode of operation Semi-autonomous
Plug and play operation/Zero touch deployment
Security and Standards WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12
Multiple Operating Modes
Intelligent thin AP Encryption, Security, QoS and RF management done on AP
Distributed and centralized data paths within same SSID
Application based distributed and centralized data paths within same user/device session
Simultaneous RF monitoring and client services
In-channel WIDS
In-channel WIPS
Dedicated multi-channel WIDS (Guardian mode)
Dedicated multi-channel WIPS (Guardian mode)
Dedicated multi-channel RF spectrum analysis and fingerprinting
Locates devices and threats via RF triangulation
Self-forming and self-healing meshing
Remote access point
Hardware-based, end-to-end data and control plane encryption
Private and public cloud deployments
Hybrid Operation
Security scanning and serve clients on same radio
Security scanning and spectrum analysis on same radio
Spectrum analysis and serve clients on same radio
Multi-channel dedicated security scanning and spectrum analysis
Radio Characteristics
Max Radiated Power
Radio 1 (5GHz) 26 dBm*
Radio 2 (2.4GHz) 25 dBm*
Max Antenna Gain (Integrated Antenna)
Radio 1 (5GHz) 5 dBi (AP3805i)
Radio 2 (2.4GHz) 3 dBi (AP3805i)
Adaptive Radio Management
Dynamic Channel Control 802.11h: DFS & TPC support (ETSI)
Efficient use of the spectrum with a multi-channel architecture
Automatic transmit power and channel control
Self-healing with coverage gap detection
Band steering with multiple steering modes
Spectrum load balancing of clients
Airtime fairness
Performance protection in congested RF environments
Mitigates co-channel interference with coordinated access
Mitigates adjacent channel interference with optimized receive sensitivity
Efficient reuse of channels at shorter intervals
Mitigates non 802.11 interference without dedicated radios
QOS For Applications
Quality of Service (WMM, 802.11e)
Power Save (U-APSD)
Fast secure roaming and handover between APs
Pre-Authentication (Pre-Auth)
Opportunistic Key Caching (OKC)
Bonjour/LLMNR/UPnP identification, containment and control
Supports voice, video and data using the same SSID
Prioritizes voice over data for both tagged and untagged traffic
Rate limiting (rule and user-based)
Rule and role based QoS processing
Multicast Rate Control
Multicast to unicast Conversion
Adaptable rate multicast
Power save mode optimization for multicast
Wireless Services
Media Access Protocol CSMA/CA with ACK
Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
802.11n: See 802.11n Performance Table below
802.11ac: See 802.11ac Performance Table below

Receiver Sensitivity

802.11a:
  • -92DdBm @ 6Mbps
  • -77DdBm @ 54Mbps
802.11g:
  • -91DdBm @ 6Mbps
  • -78DdBm @ 54Mbps
802.11n: See 802.11n Receiver Sensitivity Table below
802.11ac: See 802.11ac Receiver Sensitivity Table below
Frequency Bands 802.11ac/a/n:
  • 5.15 to 5.25 GHz (FCC/IC/ETSI)
  • 5.25 to 5.35 GHz (FCC/IC/ETSI)*
  • 5.47 to 5.725 GHz (FCC/IC/ETSI)*
  • 5.725 to 5.850 GHz (FCC/IC)
802.11b/g/n:
  • 2.400 to 2.4720 GHz (FCC/IC)
  • 2.400 to 2.4835 GHz (ETSI)
*FCC/IC DFS certification in progress
Wireless Modulation 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM
802.11ac Packet aggregation: A-MPDU, A-MSDU 802.11ac Very High-Throughput (VHT): VHT20/40/80
802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU
802.11n Advanced Features: LDPC, STBC and TxBF

802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM

802.11g: DSSS and OFDM

802.11b: DSSS
Interfaces
# 10/100/1000 Base T Ethernet autosensing link 1
Mounting
Wall mounting (included)
Flush & Protruded drop-ceiling mounting bracket (9/16” & 15/16” flat T-bar included)
Environmental
Environmental Plenum rated (UL 2043)

Operating:
Temperature 0° C to +45° C (+32° F to +113° F)
Humidity 0%-95% (noncondensing)

Storage:
Temperature -50° C to +70° C (-58° F to +158° F)

Transportation:
Temperature -50° C to +70° C (-58° F to +158° F)
Wireless and EMC
Compliance
  • FCC CFR 47 Part 15, Class B
  • ICES-003 Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS-210
  • EN 301 893
  • EN 300 328
  • EN 301 489 1 & 17
  • EN 62311
  • EN 55022 (CISPR 22)
  • EN 60601-1-2
  • AS/NZS4268 + CISPR22
Safety
  • IEC 60950-1
  • EN 60950-1
  • UL 60950-1
  • CSA 22.2 No.60950-1-03
  • AS/NZS 60950.1
Mechanical
Dimensions (Outer Diameter x Height) 6.18” x 1.63” - AP3805i
6.71” x 2.03” - AP3805e
Weight 0.75 lbs (0.34 kg) – AP3805i
0.84 lbs (0.38 kg) – AP3805e
Max power consumption 9.6W
Warranty Lifetime

* Actual available power would vary based on local regulatory requirement and actual channels used for operation

Pricing Notes:

Extreme Networks Products AP3805
IdentiFi Indoor Access Point
Dual Radio 802.11ac/abgn, 2x2:2 MIMO indoor access point
with four internal antenna array (Requires V9.15 or higher)
#WS-AP3805i
Contact us for Pricing!
Dual Radio 802.11ac/abgn, 2x2:2 MIMO indoor access point
SMA connectors for external antenna array (Requires V9.15 or higher, and antennas must be ordered separately)
#WS-AP3805e
Contact us for Pricing!
Antennas (Required For AP3805E)
2.4GHz Indoor Dipole Antenna for 3805e only (2 pack)
#WS-ANT-2DIP-2
Contact us for Pricing!
5GHz Indoor Dipole Antenna for 3805e only (2 pack)
#WS-ANT-5DIP-2
Contact us for Pricing!
Indoor, 2.4GHz/5GHz, Dual-feed, 5/5 dBi, 120 deg, Sector antenna
#WS-AI-DD05120
Contact us for Pricing!
Indoor, 2.4GHz/5GHz, Quad-feed, 4/4 dBi, Omni
#WS-AI-DQ04360
Contact us for Pricing!
Accessories
Universal Mounting brackets for drop ceiling rails
#WS-MBI-DCU01
Contact us for Pricing!
Multi-region 12V Indoor External Power Supply for the AP3805i/e
#WS-PSI12V-MR1
Contact us for Pricing!
Mid-Span PoE Devices
Single port, 1 Gigabit 802.3af PoE Midspan
#PD-3501G-ENT
Contact us for Pricing!
