Extreme Networks AP3705 Wireless Access Point
Dual radio 802.11a/b/g/n, 2x2:2, AP with four internal antenna array

Extreme Networks AP3705 WiFi Certified abgn

Extreme Networks Products AP3705
Wireless Access Points
Extreme Networks AP3705i Dual Radio 802.11a/b/g/n, 2x2:2, indoor access point with four internal antenna array
#WS-AP3705i
List Price: $499.00
Our Price: $424.00

Click here to jump to more pricing!

Overview:

The AP3705i is a feature-rich 802.11abgn access point leveraging the newest radio technology to reduce cost without sacrificing functionality. Designed to blend into office, classroom, or hotel environments, the AP3705i is ideal for providing secure 11abgn connectivity for high-density environments such as schools, hotels, and conference centers. The 3705i comes packed with the latest in WiFi technology including dynamic radio management, beamforming, spectrum analysis with interference classification, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. Optimized for drop ceiling deployments, the 2x2:2 platform is equipped with an integral four antenna array with beamforming, capable of supporting 600Mbps over-the-airperformance and up to 40,000 packets per second on the wire port. The 3705i comes with integral clips allowing the AP to be installed directly onto most drop ceilings right out-of-the-box. This green AP uses less than 9W of power fully loaded and includes the Extreme Networks Lifetime Warranty making it the best value in the industry!

  • Easy and cost-effective migration path to 802.11n
  • Comprehensive wireless security services for authentication, encryption, IPS, and NAC
  • Flexible architecture supports centralized and/or distributed traffic forwarding for voice/video/data applications
  • Policy enforcement and rate limiting at the AP support diverse deployments
  • Unified wired/wireless role-based access control with guest networking

Extreme Networks Wireless APs use the most sophisticated standards to ensure effective security and client compatibility. Using the 802.11i (WPA2) standard, wireless LAN deployments can utilize 802.1X or PSK authentication and AES, TKIP, or WEP encryption. These options ensure secure authentication and seamless integration of the APs with the wired network infrastructure.

Extreme Networks Wireless APs work together to prevent interference and optimize RF sharing. Each AP is able to intelligently and dynamically adjust its transmit power and channel based on information related to neighboring APs as well as external interference or channel occupation. This ensures optimal performance for all wireless clients. If an AP fails, neighboring APs will increase power to maintain coverage in the affected area. The APs also support RF channel plan selection with the option of supporting 3-channel, 4-channel or a fully custom configuration.

Benefits:

Business Alignment

  • Support for demanding voice/video/data applications to enhance mobile worker productivity and convenience
  • Role-based grouping of users, devices, and applications to deliver priority, QoS, and security in accordance with business needs
  • Seamless roaming across an entire multi-subnet campus without the need for cumbersome client software
  • Integrated management, security, and QoS features reduce operating cost and ensure a consistent user experience regardless of location

Operational Efficiency

  • Centralized visibility and control from Extreme Networks Wireless Management Suite and Extreme Networks NMS accelerate problem resolution, optimize network utilization, and automate management
  • Adaptive architecture reduces complexity and optimizes information flow for each application
  • Dynamic Radio Management ensures optimal AP coverage and maximizes the availability and quality of wireless service across the enterprise
  • Flexible Client Access optimizes throughput for 802.11n clients in today's mixed a/b/g and n client environments

Security

  • Authentication and authorization functions include role-based access control (using 802.1X, MAC, and captive portal) and authentication at the AP (802.1X supplicant)
  • Wireless Intrusion Prevention (WIPS) functions provide continuous scanning, threat classification, rogue AP detection, and countermeasures against possible attacks
  • Integration of security policies (NAC, IPS) across the wired/wireless networks enables quick diagnosing and resolution of security threats
  • Integration of Policy Manager across the wired/wireless networks dynamically oversees user access at the wireless network point of entry

Support and Service

  • Industry-leading customer satisfaction and first call resolution rates
  • Lifetime warranty for indoor access points
  • Personalized services, including site surveys, network design, installation, and training

Specifications:


AP Models AP3705i
General
High performance enterprise class AP
Number of radios 2
MIMO implementation for high performance 11n throughputs 2x2
Number of spatial streams 2
Maximum throughput per radio / total 300Mbps / 600Mbps
Number of SSIDs per radio / total 40,000 pps
Simultaneous users per radio / total 8 / 16
Mode of operation 127 / 254
Plug and play operation/zero touch deployment Semi-Autonomous
AP and the controller run the same firmware versions
Security and Standards
Wireless Distribution System (WDS) WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12
Multiple operating modes
Clients serving access points
Intelligent thin AP Encryption, Security, QoS and RF management done on AP
Bridging data traffic at AP and/or at controller simultaneously
Simultaneous RF monitoring and client services
Integrated in-channel WIDS V8.21
Integrated in-channel WIPS V8.21
Integrated remote access point
Integrated RF spectrum analysis and fingerprinting V8.21
Integrated self-forming and self-healing meshing
Hybrid operation
Perform security scanning and serve clients on same radio
Perform security scanning and spectrum analysis on same radio V8.21
Perform spectrum analysis and serve clients on same radio V8.21
Radio characteristics
Max transmit power (dBm)
Radio 1 (5GHz) 23 dBm
Radio 2 (2.4GHz) 23 dBm
Receive sensitivity (dBm) See table below
Max Antenna gain (dBi)
Radio 1 (5GHz) 3 dBi
Radio 2 (2.4GHz) 3 dBi
Adaptive Radio Management
Dynamic Channel Control 802.11h: DFS & TPC support (ETSI)
Efficient use of the spectrum with a multi-channel architecture
Automatic transmit power and channel control
Self-healing with coverage gap detection
Band Steering with multiple steering modes
Spectrum load balancing of clients
Airtime fairness
Performance protection in congested RF environments
Mitigates co-channel interference with coordinated access
Mitigate adjacent channel interference with optimized receive sensitivity
Efficient reuse of channels at shorter intervals
Mitigates non 802.11 inference without dedicated radios V8.21
QoS for Applications
Quality of Service (WMM, 802.11e)
Call Admission Control (TSPEC)
Power Save (U-APSD)
Fast secure roaming and handover between APs
Pre-Authentication (Pre-Auth)
Opportunistic Key Caching (OKC)
Multicast Rate Control
Support voice, video and data using the same SSID
Prioritize voice over data for both tagged and untagged traffic
Rate limiting (rule and user-based)
Rule and Role based QoS processing
Wireless Services
Media Access Protocol CSMA/CA with ACK
Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
802.11n: See 802.11n Performance table below
Frequency Bands 802.11a/n:
  • 5.15 to 5.25 GHz (FCC / IC / ETSI)
  • 5.25 to 5.35 GHz (FCC / IC / ETSI)
  • 5.47 to 5.725 GHz (FCC / IC / ETSI)
  • 5.725 to 5.850 GHz (FCC / IC)

802.11b/g/n:

  • 2.400 to 2.4835 GHz (FCC / IC / ETSI)
Wireless Modulation 802.11a: OFDM
802.11b: DSSS
802.11g: DSSS and OFDM
802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
802.11n High-throughput (HT) support: HT 20/40
802.11n Packet aggregation: A-MPDU, A-MSDU
802.11n Advanced Features: LDCP, STBC and TxBF
Interfaces
# 10/100/1000 Base-T Ethernet autosensing link 1
Console port for the ease of installation and management
Mounting
Tool-less drop ceiling rail (9/16, 15/16, 1.5") installation
Integrated/built-in drop ceiling rail clips
Technical Specifications
Environmental Plenum rated
Operating:
  • Temperature 0º C to +50º C (+32º F to +122º F)
  • Humidity 0%-95%, (noncondensing)

Storage:

  • Temperature -5º C to +50º C (+23º F to +122º F)

Transportation:

  • Temperature -40º C to +70º C (-40º F to +158º F)
Compliance
  • FCC CFR 47 Part 15, Class B
  • ICES-003 Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS-210
  • EN 301 893
  • EN 300 328
  • EN 301 489 1 & 17
  • EN / UL 60601-1-2
  • EN 50385
  • EN 55011 (CISPR 11) Class B Group 1 ISM
  • EN 55022 (CISPR 22)
  • AS/NZS3548 (CISPR22)

International (including China)

  • IEC 60950-1
  • IEC 60825

Europe

  • EN 60950-1
  • EN 60825

USA / Canada / Mexico (NAFTA)

  • UL 60950-1
  • CSA 22.2 No.60950-1-03
  • UL 2043 (Plenum rating)

Australia

  • AS/NZS 60950.1
Mechanical
Dimension (Outer Diameter x Height) 6.625" OD, 1.75" Height (168.275mm OD, 44.45mm Height)
Weight 24.692 oz (700 g)
Maximum Power Consumption 9W
Warranty Lifetime

802.11n Performance:


Data Rates (Mbps)


  2.4GHz/5GHz
  Spatial Streams HT20 Normal GI HT20 Short GI HT40 Normal GI HT40 Short GI
MCS0 1 6.5 N/A 13.5 15
MCS1 1 13 N/A 27 30
MCS2 1 19.5 N/A 40.5 45
MCS3 1 26 N/A 54 60
MCS4 1 39 N/A 81 90
MCS5 1 52 N/A 108 120
MCS6 1 58.5 N/A 121.5 135
MCS7 1 65 72.2 135 150
MCS8 1 13 N/A 27 30
MCS9 1 26 N/A 54 60
MCS10 1 39 N/A 81 120
MCS11 1 52 N/A 108 150
MCS12 1 78 N/A 162 180
MCS13 1 104 N/A 216 240
MCS14 1 117 N/A 243 270
MCS15 1 130 144.4 270 300

Receive Sensitivity (dBm)


    2.4GHz 5GHz
  Spatial Streams HT20 (20MHz) HT40 (40MHz) HT20 (20MHz) HT40 (40MHz)
MCS0 1 -94 -92 -95 -92
MCS1 1 -93 -91 -94 -91
MCS2 1 -91 -88 -93 -88
MCS3 1 -88 -86 -87 -86
MCS4 1 -84 -82 -83 -82
MCS5 1 -80 -78 -81 -77
MCS6 1 -78 -76 -78 -76
MCS7 1 -77 -74 -76 -73
MCS8 2 -93 -91 -94 -91
MCS9 2 -92 -90 -93 -90
MCS10 2 -91 -88 -93 -88
MCS11 2 -88 -86 -87 -86
MCS12 2 -84 -82 -83 -82
MCS13 2 -80 -78 -81 -77
MCS14 2 -78 -76 -78 -76
MCS15 2 -73 -70 -72 -67

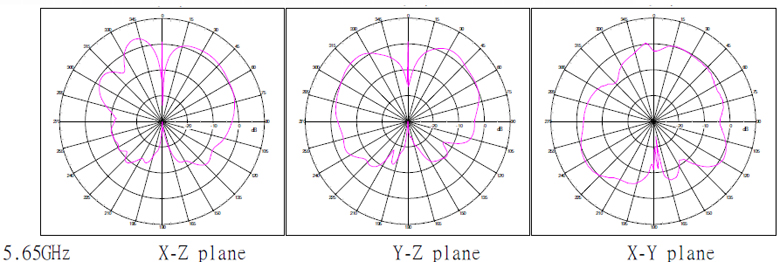

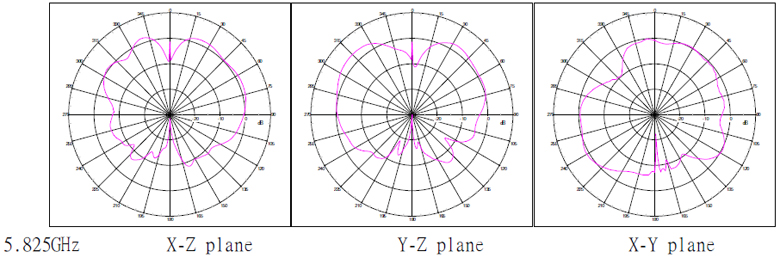

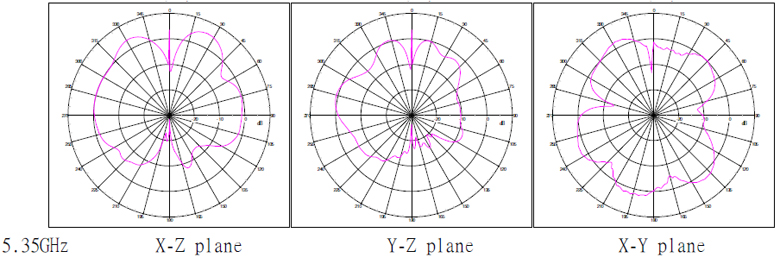

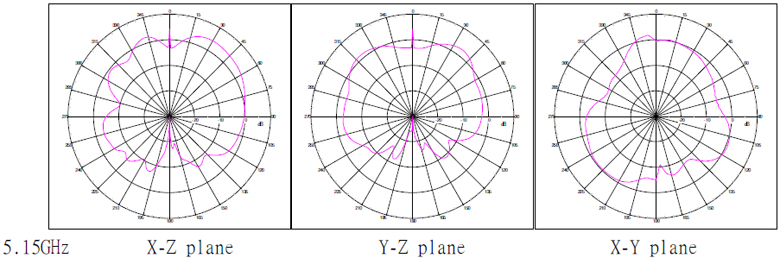

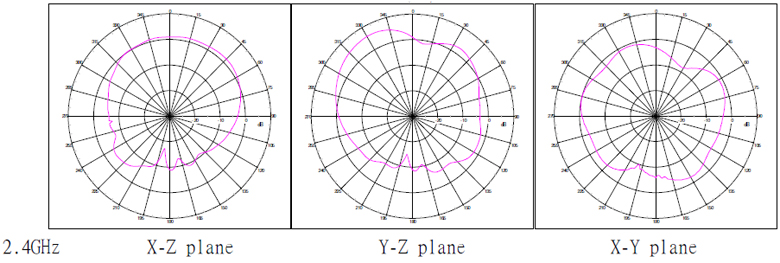

Antenna Patterns:

2.4GHz Patterns 5.15GHz Patterns 5.35GHz Patterns 5.65GHz Patterns 5.825GHz Patterns
