Extreme Networks 7100 Series
High Density 10 Gigabit Ethernet Data Center Switch

Extreme Networks 7100 Series

Extreme Networks Products 7100 Series
Extreme Networks 7100 Series
Extreme Networks 7124 Switch
24 ports 1/10Gb SFP+ with 4 10/40Gb QSFP+ ports, includes 2 reversible fan modules and a two post rack mount kit. Power supplies ordered separately.
#71K11L4-24
List Price: $24,610.00
Our Price: $20,918.00
Extreme Networks 7148 Switch
48 ports 1/10Gb SFP+ with 4 10/40Gb QSFP+ ports, includes 2 reversible fan modules and a two post rack mount kit. Power supplies ordered separately.
#71K11L4-48
List Price: $31,610.00
Our Price: $26,868.00
Extreme Networks 7124T Switch
24 ports 1/10GBASE-T with 4 10/40Gb QSFP+ ports, includes 2 reversible fan modules and a two post rack mount kit. Power supplies ordered separately.
#71K91L4-24
List Price: $24,610.00
Our Price: $20,918.00
Extreme Networks 7148T Switch
48 ports 1/10GBASE-T with 4 10/40Gb QSFP+ ports, includes 2 reversible fan modules and a two post rack mount kit. Power supplies ordered separately.
#71K91L4-48
List Price: $31,610.00
Our Price: $26,868.00

Click here to jump to more pricing!

Overview:

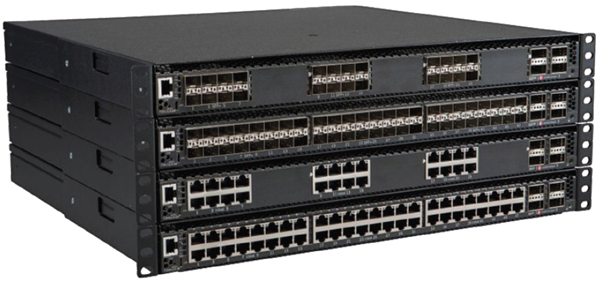

The Extreme Networks 7100-Series is a family of high density, high-performance 1 Gigabit and 10 Gigabit Ethernet switches that are ideally suited for the demands of today’s Enterprise data center and high performance LAN Edge applications. The 7100-Series is an ideal fit for support of the high bandwidth applications in today’s Enterprise networks.

The 7100-Series offers flexible connectivity options using modular SFP, SFP+ transceivers and Direct Attach Cables as well as options for integrated Gigabit copper and 10GBASE-T. Also supported are 10/100Mb, Gigabit, 10 Gigabit, and 40 Gigabit ports. Up to 64 line rate 10 Gigabit Ethernet ports can be supported in a single rack unit configuration, maximizing the space available for servers and storage in dense data center Top of Rack (ToR) applications. Configurable air flow allows for adaptation to the specific hot-aisle / cold-aisle configuration of your data center.

The 7100-Series 10 Gigabit Ethernet switches are available in the following configurations:

  • 7148 - 48 ports 1/10Gb SFP+ with 4 10/40Gb QSFP+ ports
  • 7124 - 24 ports 1/10Gb SFP+ with 4 10/40Gb QSFP+ ports
  • 7148T - 48 ports 1/10GBASE-T with 4 10/40Gb QSFP+ ports
  • 7124T - 24 ports 1/10GBASE-T with 4 10/40Gb QSFP+ ports

All systems support redundant modular power supplies and fan modules and Extreme Networks Virtual Switch Bonding to configure highly available system configurations for mission critical data center environments.

The 7100-Series is an integral element of the Extreme Networks OneFabric network architecture. OneFabric is designed to help enterprises maintain an integrated end user experience while migrating towards a virtualized network environment.

Virtualization awareness addresses the need for visibility and awareness as virtual servers get deployed and adapt to Virtual Machine mobility. Data Center Bridging effectively supports the convergence of LAN I/O and storage traffic in the data center fabric. High performance virtual switching increases the available bandwidth in the data center and enables resilient network topologies to servers and aggregation switches. Higher aggregated capacity enables data centers to effectively scale with lower latency and higher levels of availability.

Management integration and automation enables a high degree of visibility and control of critical data center resources, providing a consistent edge-to-core network implementation. Bandwidth and priority policies can be centrally provisioned, delivering a consistent implementation across the network.

Key Features

  • Versatile high performance data center solution
  • Line rate 1.28 Tbps throughput with 952 Mpps packet forwarding
  • Automated network provisioning for the virtualized data center
  • Flexible connectivity options for 10 Gigabit and 40 Gigabit Ethernet

Benefits:


Business alignment

  • Standards-based Terabit architecture to support secure, reliable deployment of business-critical applications
  • Flexible, high-speed connectivity support for 1, 10, and 40Gbps Ethernet to scale with growth in your data center
  • Advanced functionalities such as Data Center Bridging (DCB) and Virtual Switch Bonding (VSB) for optimized data center growth

Operational efficiency

  • Unique mix of fiber and copper ports on the same chassis reduces equipment, management, and support costs
  • Integral element of Extreme Networks’ OneFabric edge-to-edge network architecture reduces deployment and maintenance costs
  • High-density, small form system provides up to 64 wire speed 10Gb ports in a single rack unit, significantly reducing footprint costs
  • Management automation and built-in resiliency reduce total cost of ownership
  • Virtual Machine (VM) mobility tracking across multiple systems with dynamic policy
  • Automatically identifies and provisions devices and services, reducing IT deployment time

Security

  • Reduces risk and simplifies network administration with integrated security

Support and service

  • Industry-leading customer satisfaction and first-call resolution rates

Features/Standards and Protocols

Switching/VLAN Service

  • 802.3ab Gigabit Ethernet (copper)
  • 802.3z Gigabit Ethernet (fiber)
  • 802.3ae 10 Gigabit Ethernet (fiber)
  • 802.3an 10GBASE-T (copper)
  • 802.3ba 40 Gigabit Ethernet
  • 802.1Q VLANs
  • 802.1D MAC Bridges
  • 802.1w Rapid re-convergence of Spanning Tree
  • 802.1s Multiple Spanning Tree - up to 16 instances
  • 802.1t – Path Cost Amendment to 802.1D
  • 802.1AX-2008 LACP
    • 802.3ad Link Aggregation
    • up to 64 groups with up to 8 ports in a group
  • Loop Protect
  • 802.3x Flow Control
  • Jumbo Packet (9216 bytes)
  • RFC 1191 Path MTU Discovery
  • Link Flap Detection
  • Dynamic Egress (Automated VLAN Port Configuration)
  • IGMP v1/v2/v3
  • IGMP snooping
  • IGMP querier
  • IPv6 Multicast Listener Discovery (MLDv1/v2)
  • MLD snooping
  • MLD querier
  • GARP VLAN Registration Protocol (GVRP)
  • 802.1ak Multiple VLAN Registration Protocol (MVRP/MRP)
  • Provider Bridges (IEEE 802.1ad) Ready

Data Center Bridging

  • 802.1Qaz
  • Enhanced Transmission Selection (ETS )
    • Data Center Bridge Exchange Protocol (DCBx )
    • Application Priority
  • 802.1Qbb Priority Flow Control (PFC)
  • 802.1Qau Congestion Notification (CN)

QOS

  • Strict Priority Queuing
  • Weighted Round Robin
  • 8 Transmit Queues per Port
  • ToS/DSCP Marking/Remarking
  • 802.1p – Class of Service
  • 802.1D Priority-to-Transmit Queue Mapping
  • Ingress rate limiting
  • Transmit queue shaping

Security

  • 802.1X Port-based Authentication
  • Port Web-based Authentication (PWA)
  • MAC-based Authentication
  • Extreme Networks dynamic policy
  • Convergence Endpoint (CEP) Discovery with Dynamic Policy
  • Mapping (Siemens HFA, Cisco VoIP, H.323, and SIP)
  • Multiple Authentication Types per Port Simultaneously
  • Multiple Authenticated users per Port with unique policies per user/End System (VLAN association independent)
  • RFC 3580 IEEE 802.1 RADIUS Usage Guidelines, with VLAN to Policy Mapping
  • Broadcast Suppression
  • RADIUS snooping
  • MAC-to-Port Locking - static and dynamic
  • Span Guard (Spanning Tree Protection)
  • Host CPU Denial of Service (DoS) protection
  • MSCHAP RADIUS authentication
  • IPsec RADIUS connection
  • 802.1AE MACsec Hardware Capable

High Availability

  • Virtual Switch Bonding (VSB) for up to two systems with 40Gb links
  • High Availability Firmware Upgrade (HAU)
  • Redundant hot swappable fan modules
  • Redundant hot swappable power supplies

Extreme Network Management

  • NMS Console
  • NMS Policy Manager
  • NMS Inventory Manager
  • NMS Automated Security Manager
  • NMS NAC Manager
  • Data Center Manager (DCM)

Network Management

  • SNMP v1/v2c/v3
  • WebView Management Interface
  • Industry Common Command Line Interface
  • Configurable Login Banner
  • Dual IPv4/IPv6 Management Support
  • Multiple local user account management
  • Multiple Software Image Support with Revision Roll Back
  • Multi-configuration File Support
  • Editable Text-based Configuration File
  • COM Port Boot Prom and Image Download
  • Telnet Server and Client
  • Secure Shell (SSHv1/v2) Server and Client
  • Cabletron Discovery Protocol
  • Cisco Discovery Protocol v1/v2
  • 802.1ab LLDP, LLDP-MED
  • 802.3-2008 Clause 57 (Ethernet OAM – Link Layer OAM)
  • Port Mirroring – one to one, many to one, one to many
  • Unidirectional Link Detection (ULD)
  • Syslog
  • Audit Trail Logging
  • FTP/TFTP Client
  • Secure Copy Protocol (SCP)
  • RFC 2030 Simple Network Time Protocol (SNTP)
  • RFC 2865 RADIUS
  • RFC 2866 RADIUS Accounting
  • TACACS+
  • Management VLAN
  • RMON – Statistic, History, Alarms, Events
  • RFC 2613 SMON
  • DHCP server
  • Environmental Monitoring

Standard MIB Support

  • RFC 1156/1213 & RFC 2011 IP-MIB
  • RFC 1493 Bridge MIB
  • RFC 1659 RS-232 MIB
  • RFC 2578 SNMPv2 SMI
  • RFC 2579 SNMPv2-TC
  • RFC 3417 SNMPv2-TM
  • RFC 3418 SNMPv2 MIB
  • RFC 2012 TCP MIB
  • RFC 2013 UDP MIB
  • RFC 3411 SNMP Framework MIB
  • RFC 3412 SNMP-MPD MIB
  • RFC 3413 SNMPv3 Applications
  • RFC 3414 SNMP User-Based SM MIB
  • RFC 2276 SNMP-Community MIB
  • RFC 2613 SMON MIB
  • RFC 2674 802.1p/q MIB
  • RFC 2737 Entity MIB
  • RFC 2819 RMON MIB (Groups 1-9)
  • RFC 3273 HC RMON MIB
  • RFC 2863 IF MIB
  • RFC 2864 IF Inverted Stack MIB
  • RFC 2922 Physical Topology MIB
  • RFC 3291 INET Address MIB
  • RFC 3415 SNMP View Based ACM MIB
  • RFC 3635 EtherLike MIB
  • RFC 3636 MAU MIB
  • RFC 4022 MIB for the Transmission Control Protocol (TCP)
  • RFC 4113 MIB for the User Datagram Protocol (UDP)
  • RFC 4293 MIB for Internet Protocol (IP)
  • IEEE 8023 LAG MIB
  • RSTP MIB
  • USM Target Tag MIB
  • U Bridge MIB
  • SNMP-REARCH MIB
  • IANA-address-family-numbers MIB
  • IEEE 802.1PAE MIB

Specifications:



  7148 7124 7148T 7124T
Performance
Switching Throughput Mpps 952Mpps 595Mpps 952Mpps 595Mpps
Switching Capacity 1.28Tbps 800Gbps 1.28Tbps 800Gbps
Max 10Gb Ethernet Ports 64 40 64 40
MAC Address Table 128K 128K 128K 128K
VLANs Supported 4,094 4,094 4,094 4,094
Packet Buffers 9MB 9MB 9MB 9MB
Physical Specifications
Dimensions (H x W x D), Rack Units 1 Rack Unit high
4.37 cm H x 44.73 cm W x 43.40 cm D
1.72” H x 17.61” W x 17.086” D
1 Rack Unit high
4.37 cm H x 44.73 cm W x 43.40 cm D
1.72” H x 17.61” W x 17.086” D
1 Rack Unit high
4.37 cm H x 44.73 cm W x 43.40 cm D
1.72” H x 17.61” W x 17.086” D
1 Rack Unit high
4.37 cm H x 44.73 cm W x 43.40 cm D
1.72” H x 17.61” W x 17.086” D
Net Weight 7.12 kg (15.7 lb) 7.12 kg (15.7 lb) 7.12 kg (15.7 lb) 7.12 kg (15.7 lb)
Physical Ports (48) 1Gb/10Gb SFP+ ports
(4) 10Gb/40Gb QSFP+ ports
(1) Console port
(1) Micro-USB port
(24) 1Gb/10Gb SFP+ ports
(4) 10Gb/40Gb QSFP+ ports
(1) Console port
(1) Micro-USB port
(48) 1Gb/10Gb 10GBASE-T ports
(4) 10Gb/40Gb QSFP+ ports
(1) Console port
(1) Micro-USB port
(24) 1Gb/10Gb 10GBASE-T ports
(4) 10Gb/40Gb QSFP+ ports
(1) Console port
(1) Micro-USB port
Power
Power Supplies Up to two load-sharing redundant 474W power supplies Up to two load-sharing redundant 474W power supplies Up to two load-sharing redundant 474W power supplies Up to two load-sharing redundant 474W power supplies
Normal Input Voltage 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC
Input Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Max Power Consumption 174W 138W 318W 206W
Environmental
Operating Temperature 5° C to 40° C
(41° F to 104° F)
5° C to 40° C
(41° F to 104° F)
5° C to 40° C
(41° F to 104° F)
5° C to 40° C
(41° F to 104° F)
Non-Operating Temperature -30° C to 73° C
(-22° F to 164° F)
-30° C to 73° C
(-22° F to 164° F)
-30° C to 73° C
(-22° F to 164° F)
-30° C to 73° C
(-22° F to 164° F)
Operating Relative Humidity 5% to 95%
(non-condensing)
5% to 95%
(non-condensing)
5% to 95%
(non-condensing)
5% to 95%
(non-condensing)
Agency Specifications
Safety UL 60950-1, FDA 21 CFR 1040.10 and 1040.11, CAN/CSA C22.2, No. 60950-1, EN 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1, 2006/95/EC (Low-Voltage Directive)
Electromagnetic Compatibility FCC 47 CFR Part 15 (Class A), ICES-003 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZ CISPR-22 (Class A). VCCI V-3. CNS 13438 (BSMI), 2004/108/EC (EMC Directive)
Environmental 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS)

Documentation:

Download the Extreme Networks 7100 Series Datasheet (.PDF)
